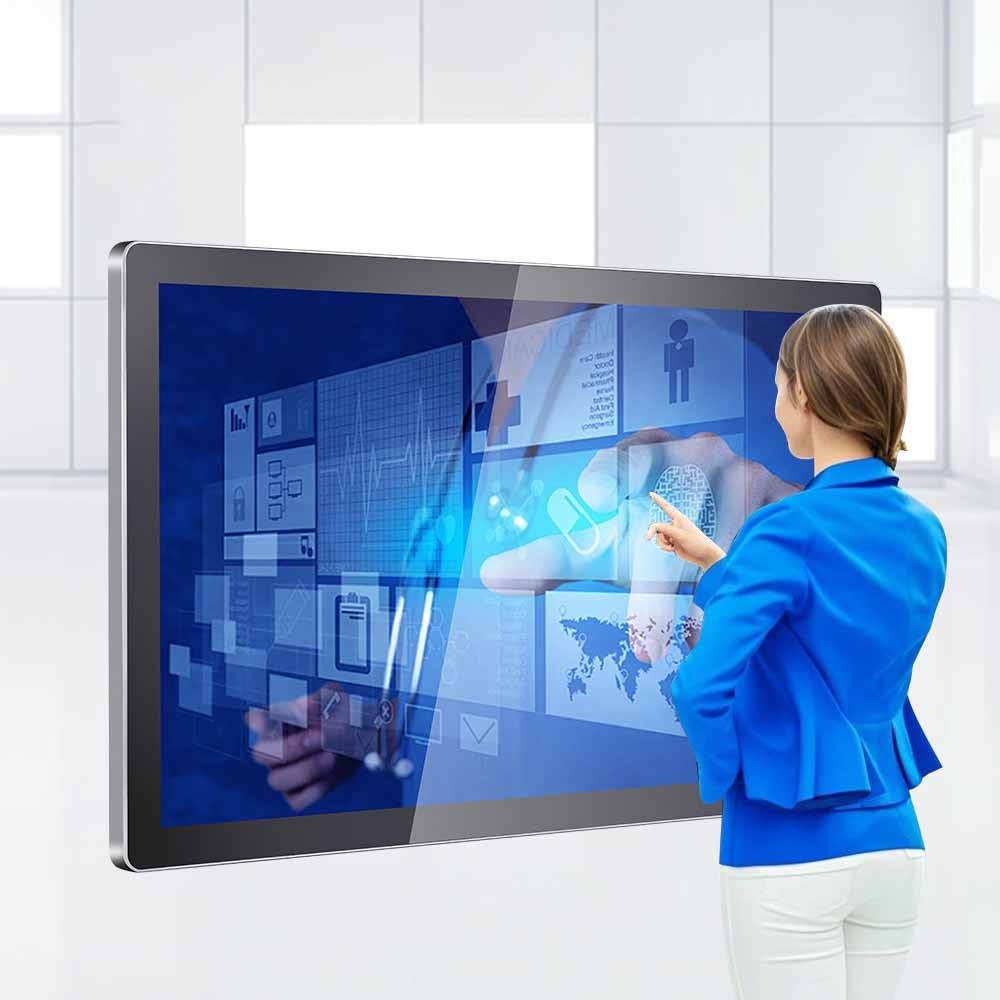

This 15.6-inch PCAP touch monitor is designed for indoor self-service kiosks that require a clear Full HD interface, responsive touch operation and straightforward integration with an external computer. Its 16:9 display format provides practical space for forms, product menus, instructions, payment prompts and multilingual service workflows.
Typical applications include visitor check-in terminals, queue-management kiosks, self-ordering machines, ticketing systems, information stations and indoor vending equipment. Ever Glory supports OEM/ODM customization of the cover glass, printed border, mounting structure, metal housing, interfaces, touch firmware, cable direction and logo. Final specifications are confirmed against the customer’s enclosure drawing and host-system requirements.
This 15.6-inch PCAP touch monitor is developed for indoor self-service equipment requiring a balanced screen size, Full HD resolution and reliable connection to an external computer. The 16:9 display provides sufficient space for forms, service menus, visual instructions, transaction information and multilingual user interfaces without requiring an oversized kiosk enclosure.
The monitor is intended for equipment manufacturers, kiosk integrators and self-service solution providers. It can be customized around the terminal’s panel opening, internal mounting points, host system, interface direction and front-glass design.
The 1920 × 1080 resolution supports detailed text, images, forms and on-screen instructions. The 15.6-inch format is suitable for users operating the terminal from a short standing or seated distance while keeping the equipment enclosure relatively compact.
A typical brightness of 350 cd/m² is suitable for reception areas, retail stores, hospitals, banks, restaurants and other controlled indoor environments. Equipment installed next to large windows or under strong directional lighting should be evaluated separately for higher brightness or anti-reflection treatment.
PCAP touch supports direct selection, scrolling, form completion and other common self-service interactions. Up to 10-point touch can be configured according to the selected controller and operating system, although most kiosk workflows should be designed around clear single-touch targets.

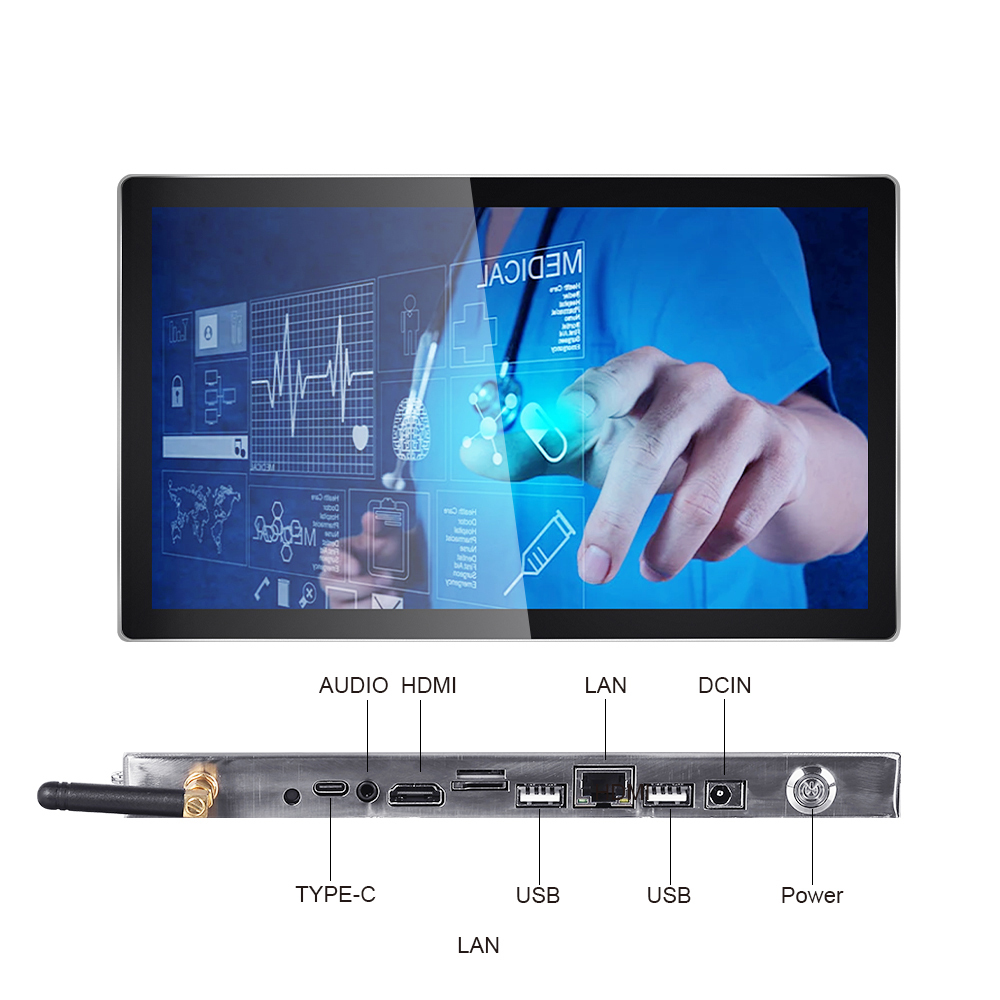

HDMI supports current embedded computers and mini PCs, while VGA can simplify integration with established kiosk controllers and legacy host systems. Alternative video inputs can be evaluated when required by the customer’s system architecture.

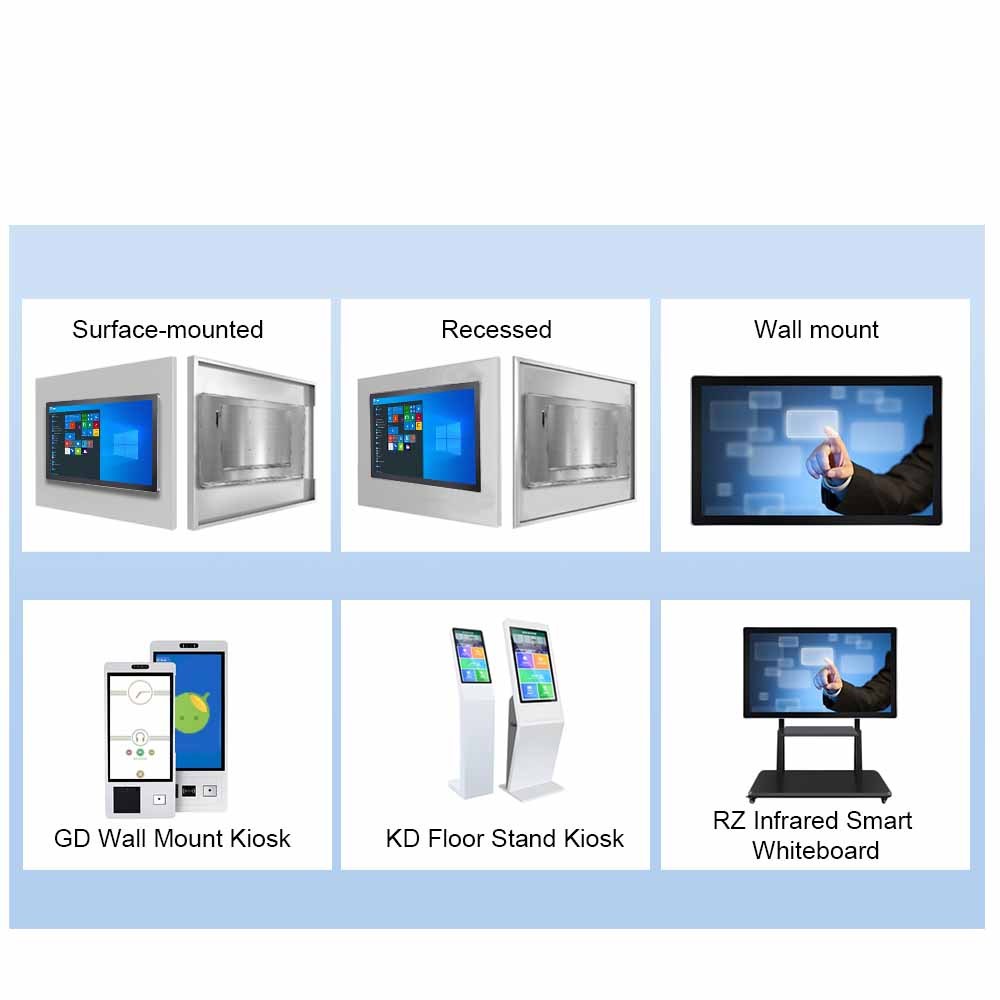

The metal enclosure provides a stable mounting base inside self-service equipment. Embedded brackets, VESA points, fixing holes, connector position and cable direction can be adapted to improve assembly and field maintenance.
The cover glass can be customized with a printed border, company logo, functional markings and application-specific dimensions. Anti-glare and anti-fingerprint options can be selected for public-use environments that require frequent cleaning.
Touch sensitivity and edge performance can be adjusted according to the cover-glass thickness, grounding design and electrical environment. Final validation should be completed with the production enclosure, power supply and host computer.
Project support can include mechanical drawing review, sample development, touch testing, pilot production and scheduled batch supply. The final LCD, controller board and interface configuration should be controlled through an approved specification and bill of materials.
| Display size | 15.6 inches |
|---|---|
| Aspect ratio | 16:9 widescreen |
| Native resolution | 1920 × 1080 Full HD |
| Typical brightness | 350 cd/m² |
| Typical contrast ratio | 3000:1 |
| Typical viewing angle | 89° / 89° / 89° / 89° |
| Display colors | 16.7 million |
| Typical LCD response time | 30 ms |
| Touch technology | Projected capacitive touch |
| Touch points | Up to 10 points, subject to controller and operating system |
| Touch interface | USB |
| Typical touch response | ≤5 ms |
| Display inputs | HDMI and VGA |
| Power connector | DC 5.5 × 2.1 mm |
| Typical maximum power consumption | ≤20 W |
| Typical standby power | <1 W |
| Housing | Metal enclosure for equipment integration |
| Mounting | Embedded, VESA or customized mounting structure |
| Surface options | Clear, anti-glare or anti-fingerprint cover glass |
| System compatibility | Windows, Linux and Android subject to controller configuration |
| Customization | Glass, printing, housing, mounting, interface, cable direction, firmware and logo |
| Commercial model | OEM/ODM project quotation; not a retail desktop monitor |
Specification notice: Values shown above represent the applicable product configuration and must be verified on the approved specification sheet before ordering. Do not combine these parameters with the 1000-nit outdoor 15.6-inch model.
The Full HD touchscreen supports appointment lookup, visitor information entry, host notification and badge-registration workflows in offices, schools and commercial buildings.
The 15.6-inch widescreen provides room for product images, menu categories, customization options and order confirmation in restaurants and retail locations.
Clear touch targets help users select a service, confirm an appointment and collect a queue number in banks, hospitals and public-service locations.
The monitor supports route, time, seat and ticket-selection interfaces when connected to the appropriate host computer, payment module and printer.
Full HD resolution supports directories, maps, searchable content and multilingual guidance in shopping centers, hospitals, campuses and reception areas.
The screen can present product information, availability, promotions and transaction steps while maintaining a compact equipment footprint.
Yes, 350 cd/m² is generally suitable for controlled indoor lighting. Terminals installed beside large windows or under strong spotlights may require higher brightness, anti-glare glass or an anti-reflection solution.
Yes. HDMI or VGA carries the display signal, while USB is used for touch input. Operating-system compatibility depends on the selected PCAP controller and required multi-touch functions.
Yes. The cover-glass outline, thickness, printed border, logo, functional markings and surface finish can be adapted to the kiosk design.
This configuration is primarily a touch monitor connected to an external computer. If an integrated processor, memory, storage or operating system is required, request an industrial panel PC configuration.
This page is optimized for indoor self-service equipment. Outdoor use requires a separate assessment of brightness, reflections, UV exposure, temperature, sealing and condensation.
Front protection can be developed using flat glass, a gasket and the kiosk enclosure. The final rating depends on the completed installation and must not be inferred from the touch panel alone.
Please provide the enclosure drawing, annual quantity, host system, interfaces, mounting method, cover-glass requirements, operating environment and target-market certification requirements.
Send your kiosk drawing, panel opening, mounting method, host system, required interfaces, peripheral list, cover-glass design and estimated quantity. Ever Glory will review mechanical fit and recommend a sample configuration for your indoor self-service equipment.
