Key FeaturesMounting & Structure
- Panel Embedded:Front panel with a flush design, embedded into cabinets, equipment or walls for a seamless, integrated appearance.

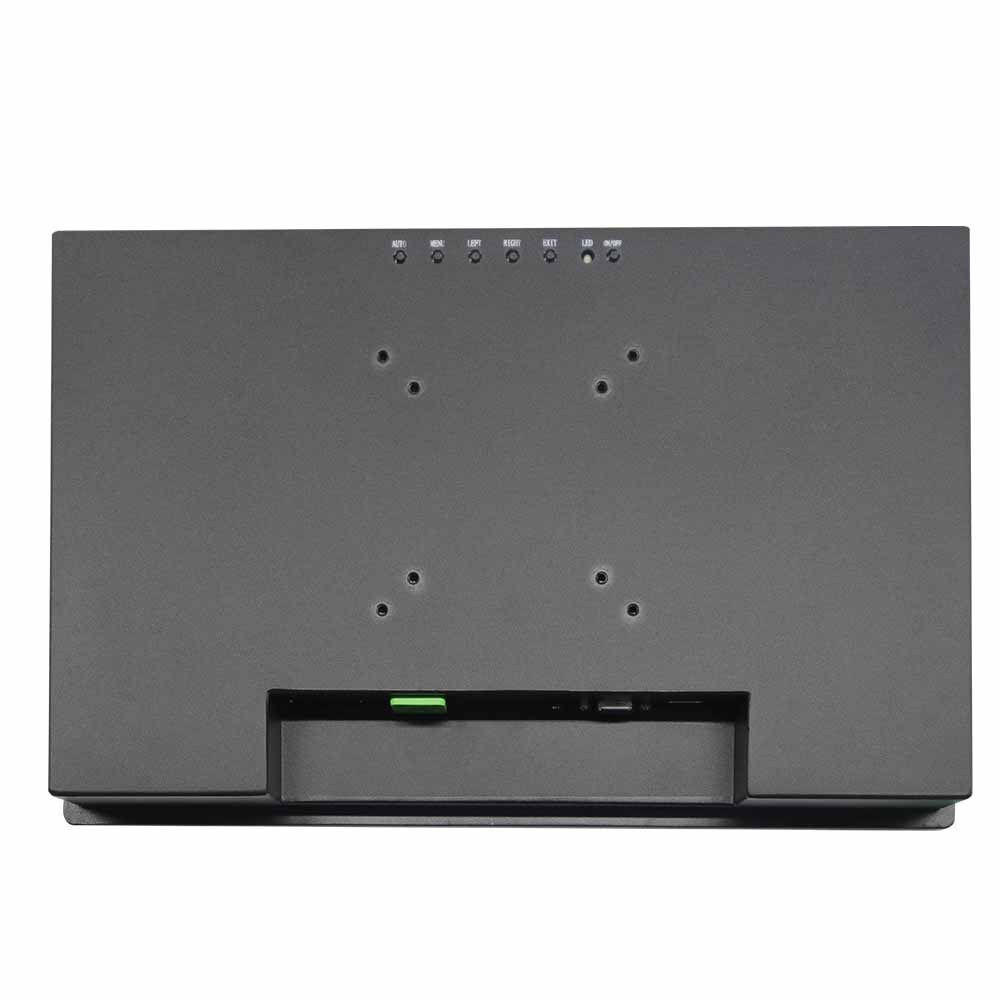

- Standard Mounting:Supports VESA 75×75 / 100×100 for wall mounting, cantilever and stand installation.
- Ultra-thin & Narrow Bezel:Open-frame metal/aluminum alloy construction, low-power fanless design, ideal for compact spaces.
- Easy Installation & Maintenance:Secured with hooks or buckles; embedded installation using only 4 screws, enabling convenient on-site replacement.
Display & Touch
- 15.6-inch 16:9 widescreen with mainstream resolutions of 1366×768 / 1920×1080 (FHD).
- Brightness: Standard 300–450 nits; high-brightness models 1000–1500 nits (readable in direct sunlight).
- Touch Technology: Projected Capacitive (PCAP) 10-point touch, fast response, supports gloved operation.
- Full-flat tempered glass: edge-to-edge design, scratch-resistant, wear-resistant and easy to clean.
- Optical Bonding (premium configuration): reduces glare, enhances contrast and improves durability.
Industrial-Grade Reliability
- Front Panel Protection: IP65 / IP54 (dustproof, splash-proof, oil-resistant)
- Wide Operating Temperature: -20°C ~ +70°C, suitable for extreme temperature environments

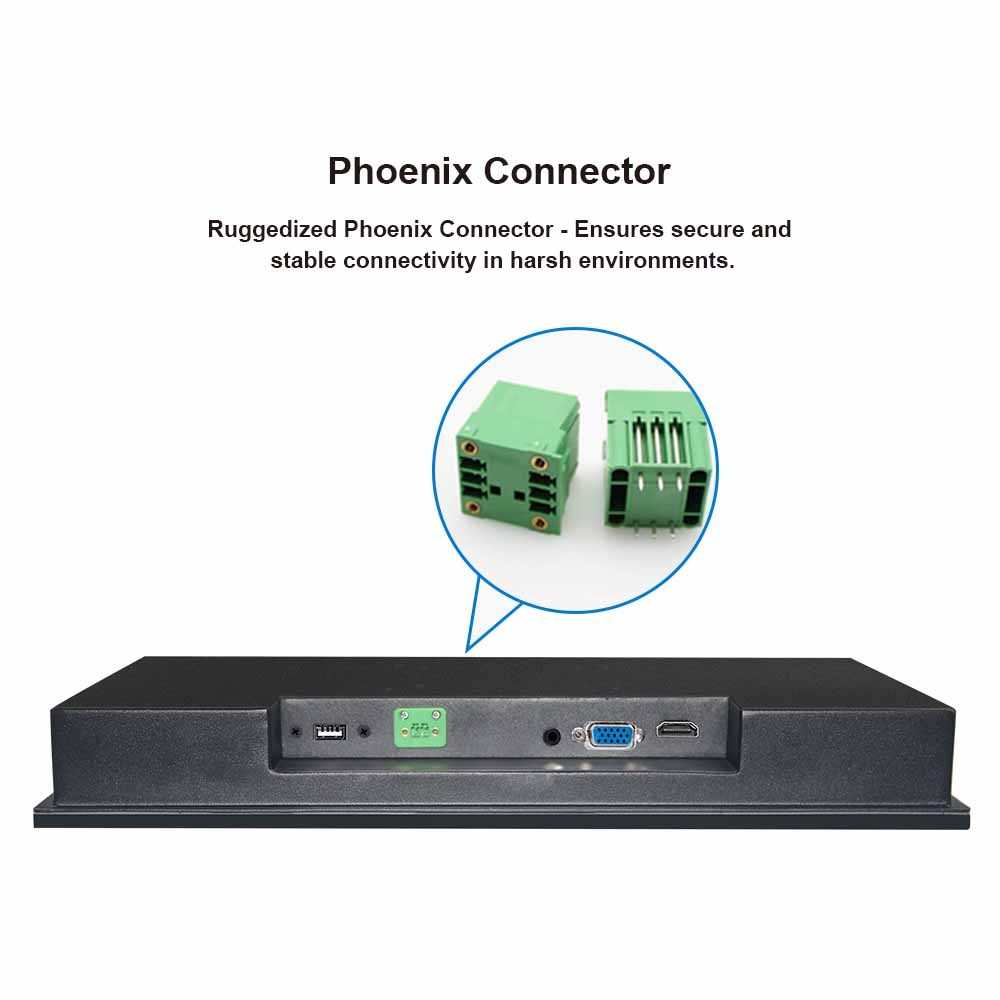

- Wide Voltage Power Supply: DC 9–36V / 12V, with reverse polarity, overcurrent and overvoltage protection
- 24/7 Stable Operation: Industrial-grade components, long-life backlight (≥50,000 hours)
- Shock & Interference Resistance: Metal chassis, EMC/EMI protection, ideal for harsh industrial electromagnetic environments

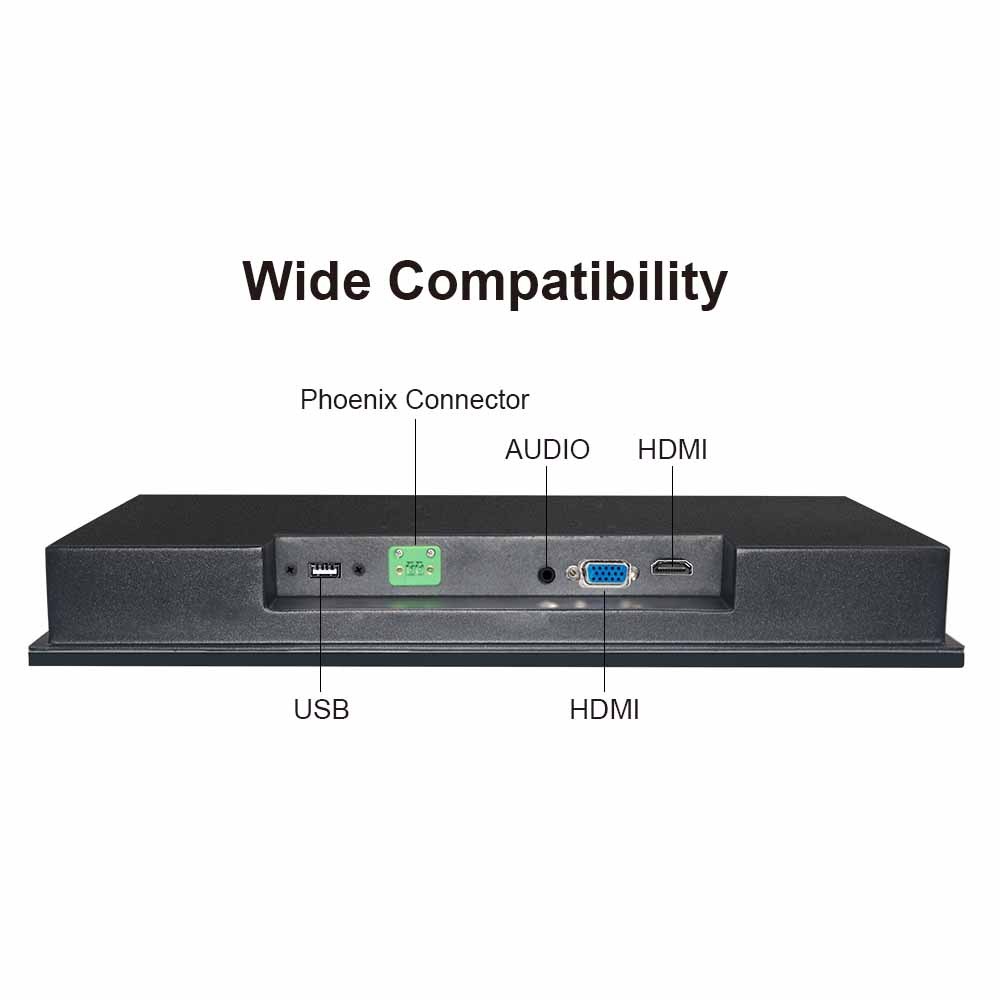

Interfaces & Compatibility
- Video: HDMI + VGA + DP + DVI (multiple interfaces for compatibility with legacy and new hosts)
- Touch: USB / RS-232
- Expansion: Optional Gigabit Ethernet, serial port, audio, GPIO
- OS Support: Compatible with Windows / Linux / Android / embedded systems
Application IndustriesIndustrial Automation & Control
- HMI, CNC Machine Tools, Robot Controllers
- Production Line Monitoring, PLC Configuration, SCADA Systems, Equipment Operation Panels
- Factory MES/ERP Terminals, Warehouse Logistics Sorting, Automated Production Lines
Intelligent Equipment & Machinery
- Medical Devices (patient monitors, diagnostic equipment, surgical terminals)
- Power & Energy: switchgear, PV & wind power monitoring, substation control consoles
- Textile, printing & packaging machinery, semiconductor equipment, test & measurement instruments
Commercial & Self-Service Terminals
- POS systems, kitchen display systems (KDS) for catering
- Self-service inquiry, payment, ticketing and registration terminals, intelligent navigation
- Access control & time attendance, visitor management, building automation, elevator control
Transportation & Vehicle Mount
- Vehicle monitoring, displays for ships & special vehicles, in-vehicle navigation & control
- Rail transit, airport & station information displays, on-board dispatch terminals
Outdoor & Harsh Environments
- Outdoor high-brightness self-service terminals, intelligent security, field instruments
- Petrochemical, mining equipment, offshore platforms (explosion-proof models available)
FAQ1.Is the front panel really waterproof and dustproof? Yes, the front panel achieves
IP65/IP54 protection, effectively resisting dust, water splashes and oil stains, making it suitable for industrial and harsh environments.
2.Can this touch monitor work outdoors in direct sunlight?Yes. High-brightness models offer
1000–1500 nits brightness and support optical bonding to reduce reflections, ensuring clear readability under strong sunlight.
3.Does it support operation with gloves?Yes. It uses
projected capacitive (PCAP) 10-point touch, which supports fast and accurate responses even when wearing industrial gloves.
4.What operating systems are compatible?It is fully compatible with
Windows, Linux, Android and various embedded systems, with plug-and-play USB touch for easy integration.
5.Can it be installed both embedded and wall-mounted?Yes. It supports
flush panel mounting into cabinets/equipment, as well as
VESA 75×75/100×100 for wall, arm and stand mounting.
