Size and Space Adaptability
Optimal Size: The 12.1-inch (16:9) display is a classic size for self-service terminals, offering a comfortable viewing distance and balanced information density. Users can complete full-screen operations with one hand without frequently moving their body.
Space Saving: Compared with 15"/17" displays, the 12.1-inch screen reduces the front panel size of vending machines, lowering overall machine volume and weight. It is ideal for compact environments such as convenience stores, subway stations, and office buildings, and is also suitable for wall-mounted or embedded installations.
Cost Balance: While meeting interaction and display requirements, the 12.1-inch solution provides lower panel, touch, and system costs, offering better cost-performance than larger display options.
Touch Interaction Advantages

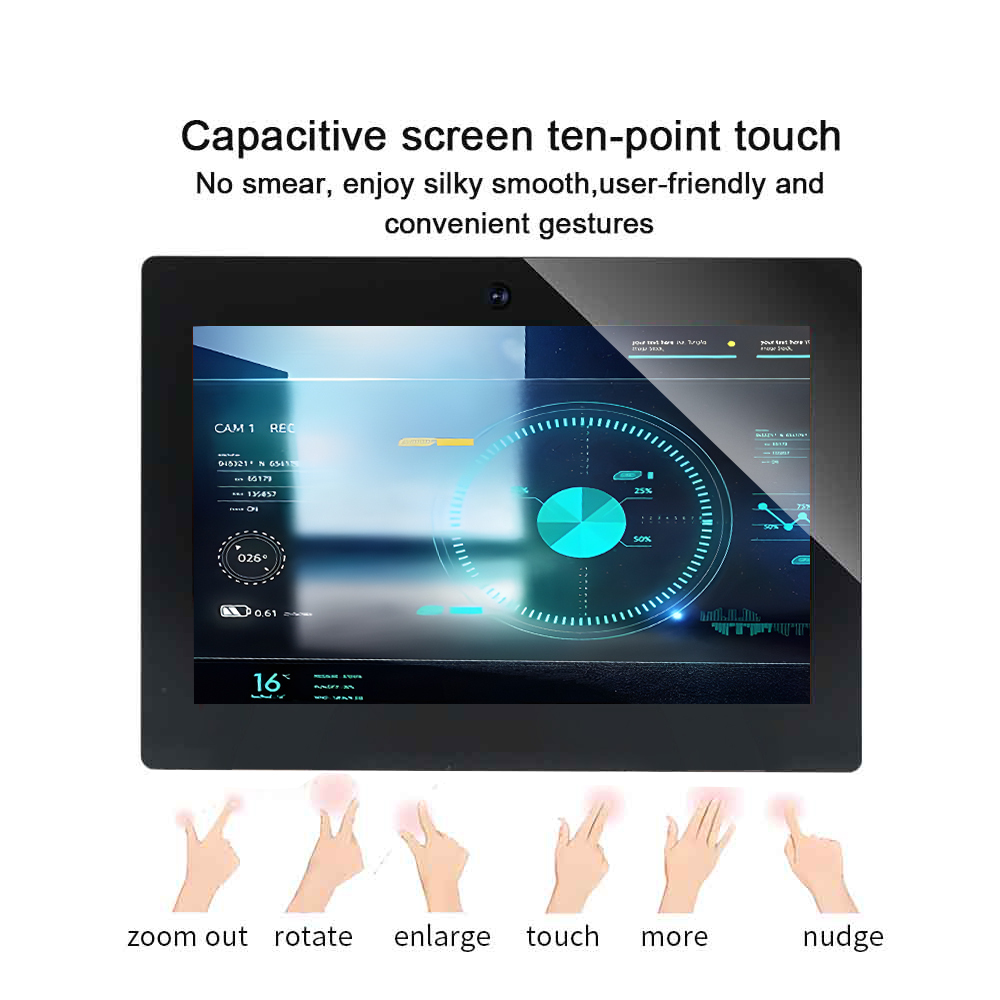

Accurate and Responsive: Equipped with Projected Capacitive (PCAP) technology, supporting up to 10-point multi-touch or precise single-touch operation with a response time under 20 ms. It supports operation with gloves, wet hands, or masks, making it ideal for high-frequency public usage.
Anti-Interference and Durable: Industrial-grade touch design supports an IP65 front panel for water and dust protection, with 6H+ scratch-resistant cover glass and a lifespan of over 35 million touches. Resistant to oil, dust, and liquid splashes, making it suitable for harsh public environments such as vending machines.
Through-Glass Touch: Supports touch operation through up to 6 mm thick glass, enabling fully sealed designs for improved system reliability and protection.
Display Performance Advantages
High Definition & High Brightness: Resolution of 1280×800 with brightness from 400–1000 nits for sunlight readability. Combined with anti-glare and anti-reflection glass, it ensures clear visibility without glare or ghosting under strong light.
Wide Viewing Angle: IPS panel with 178° wide viewing angle ensures clear images even when users operate from the side or while standing, with no color shift or dark screen.
Long-Life Backlight: LED backlight rated for over 50,000 hours, supporting 24/7 continuous operation and reducing maintenance and replacement costs.
Industrial-Grade Reliability
Wide Temperature Range: Operating temperature from -20°C to +70°C, suitable for both indoor and outdoor vending machine environments without display drift or black screen issues.
Wide Voltage Input: Supports 9–36V DC wide-range power input, adapting to complex vending machine power systems and preventing shutdown due to voltage fluctuations.
Fanless & Low Power: Passive cooling and low-power design ensure silent operation, less dust accumulation, longer device lifespan, and lower failure rates.
Shock and Impact Resistance: Complies with IK07 impact protection and drop-ball tests, suitable for transportation and use in public environments.
System Integration and Deployment Advantages

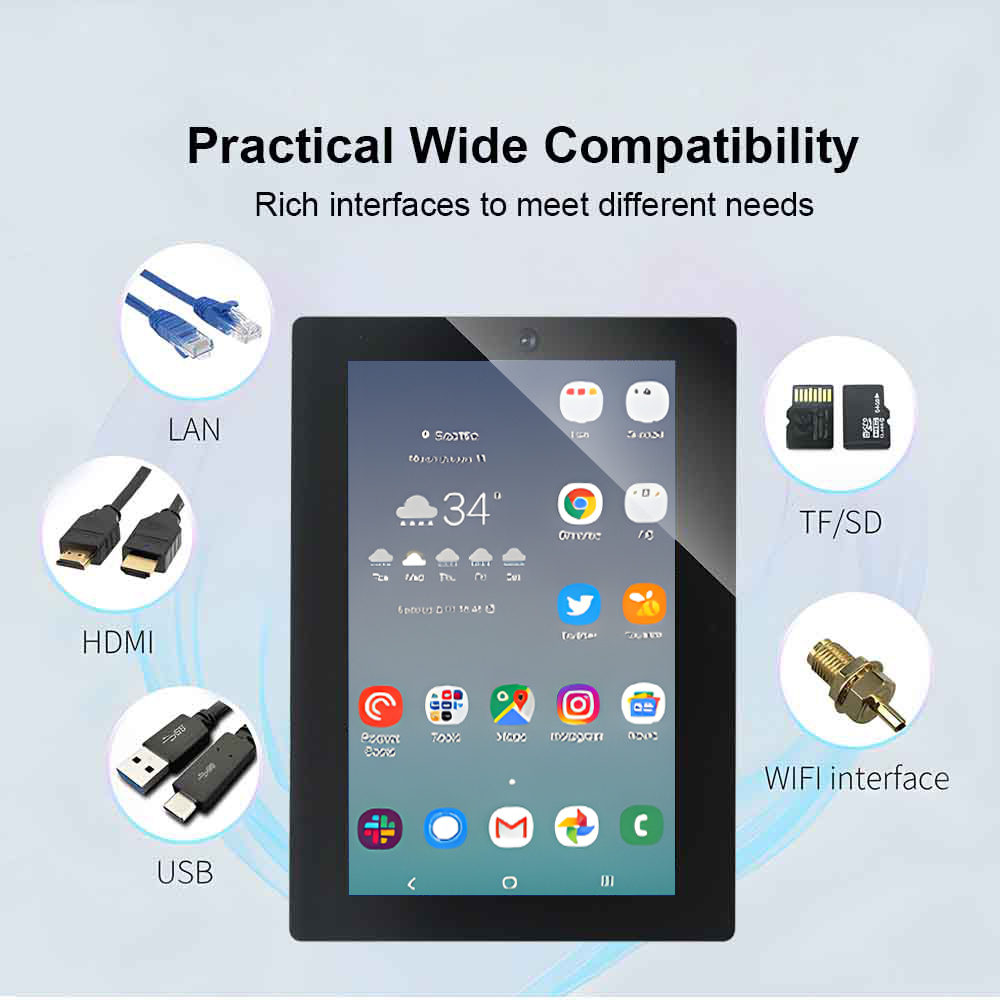

Interfaces: Standard interfaces include USB, RS232, VGA, DVI, and HDMI, compatible with Windows, Linux, and Android for plug-and-play integration.

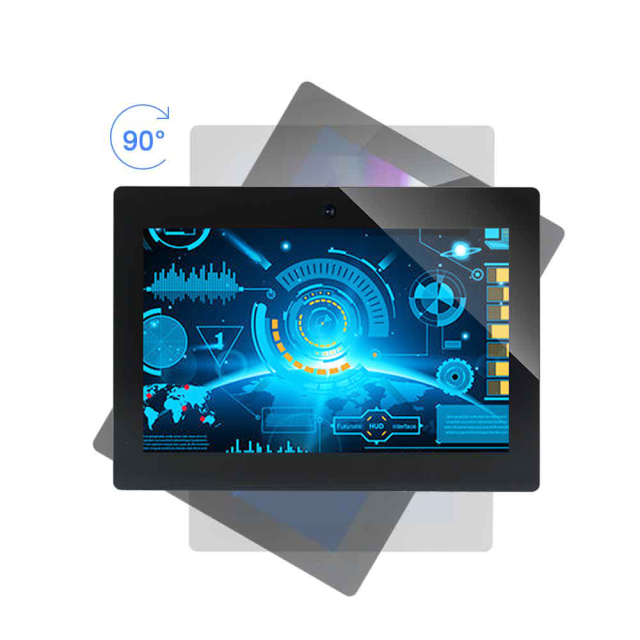

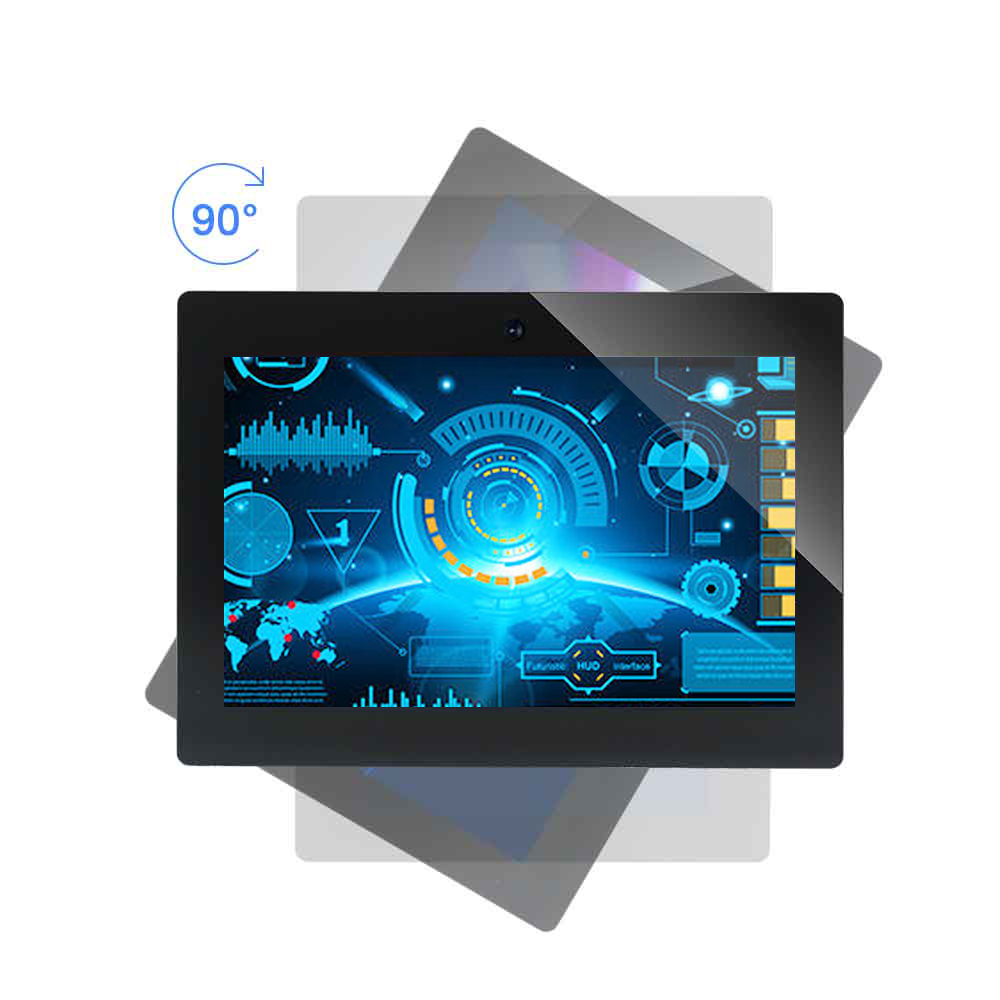

Flexible Installation: Supports embedded, wall-mounted, desktop, and folding stand installations, allowing easy adaptation to various vending machine structures.
Easy Maintenance: Modular design enables quick replacement and maintenance, minimizing downtime and reducing total cost of ownership (TCO).
FAQ
Q: What is the size of this vending machine touch monitor?
A: It is a standard 12.1-inch touch monitor, specially designed for vending machine applications.
Q: Is this 12.1-inch touch monitor compatible with most vending machines?
A: Yes, it supports mainstream vending machine control systems and interfaces, with high compatibility for installation and replacement.
Q: What touch technology does this 12.1-inch vending machine monitor use?
A: It uses capacitive touch technology, supporting accurate, responsive, and stable operation even in high-frequency public use.
Q: Is the 12.1-inch touch monitor durable for 24/7 vending machine operation?
A: Yes, it features an industrial-grade design, supports continuous 24-hour operation, scratch-resistant surface, and long service life.
Q: Can this 12.1-inch touch monitor work in high-traffic public environments?
A: Absolutely. It has stable performance, anti-interference ability, and supports accurate touch even with frequent use by customers.
