This compact PCAP touch monitor is designed for self-service equipment that requires a space-efficient operator display, flexible mounting and reliable connection to an external controller or optional embedded computing platform. It is suitable for visitor registration terminals, queue-management systems, countertop kiosks, ticketing equipment, information stations and other attended or unattended service devices.
Unlike a consumer portable display, this product can be customized around the equipment enclosure, mounting method, cover glass, touch firmware, interfaces, cable direction and branding. Available project configurations include display-only touch monitors and integrated Android-based systems. Final size, resolution, brightness, protection level, computing platform and certification scope are confirmed according to the approved project specification.
This compact PCAP touch monitor is developed for self-service equipment manufacturers and solution integrators that need a smaller operator interface with flexible installation and project-specific connectivity. It can be used as a touch display connected to an industrial computer or configured with an optional embedded computing platform for standalone terminal operation.
The compact enclosure makes the product suitable for countertop terminals, reception equipment, visitor check-in stations and other applications where installation depth and available panel space are limited. Cover glass, mounting points, housing, connector position and cable direction can be adapted to the customer’s equipment drawing.
Available compact display sizes support self-service equipment where a conventional large-format kiosk monitor would occupy excessive enclosure space. The final screen size should be selected according to viewing distance, user-interface density, touch-target dimensions and installation depth.
The product can be supplied as a touch monitor for connection to the customer’s host computer or as an optional integrated Android-based terminal. This allows equipment manufacturers to select the appropriate architecture without paying for an unnecessary computing platform.

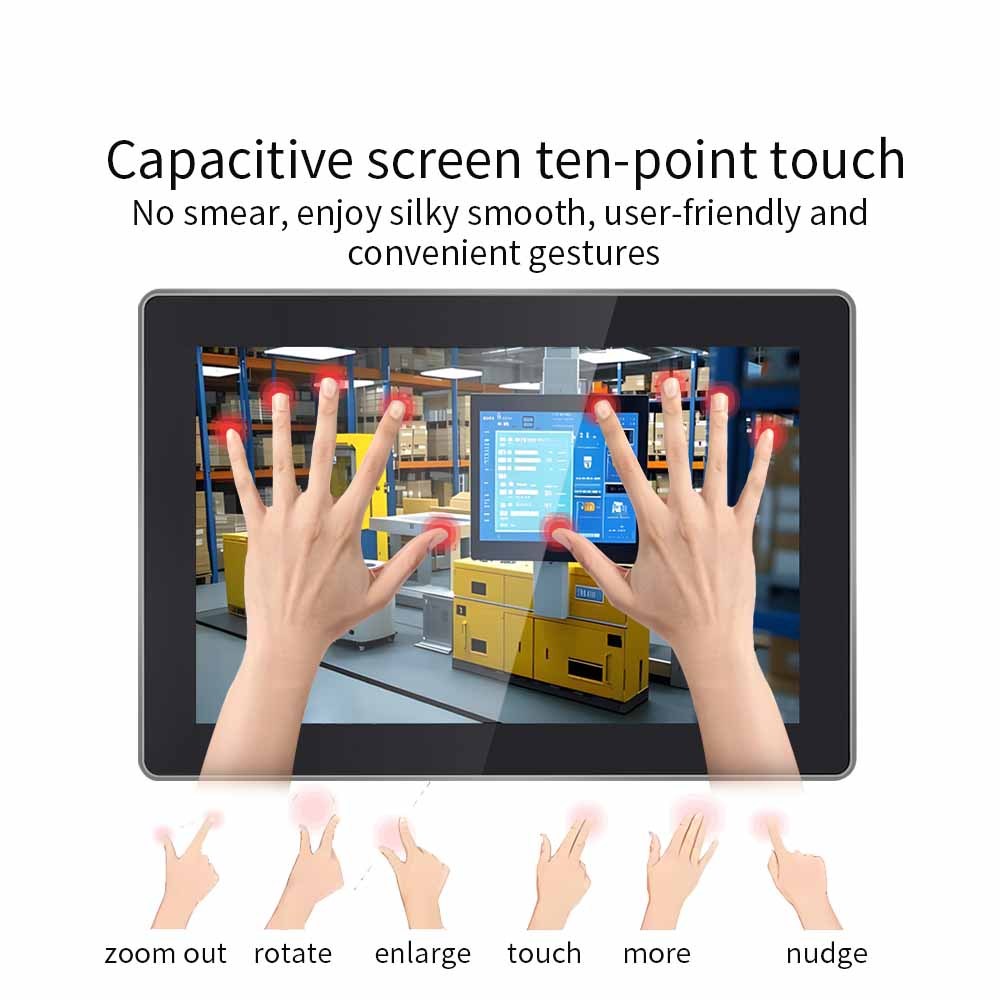

PCAP touch supports responsive menu selection, form entry, signature workflows and other self-service interactions. Touch-point count, sensitivity, edge performance and gesture support are configured according to the controller and operating system.
Video, touch, USB, Ethernet, serial communication, Wi-Fi and Bluetooth options can be evaluated according to the terminal architecture. Connector position and cable direction can be adapted to improve internal wiring and service access.
Embedded, wall-mounted, desktop and handheld configurations can be reviewed according to the equipment use case. Mounting-hole positions, brackets, stand structure and rear cable clearance are confirmed against the mechanical drawing.
The front glass can be customized with a printed border, customer logo, functional icons and application-specific dimensions. Anti-glare and anti-fingerprint surface options can improve readability and simplify routine cleaning in public-use environments.
Touch firmware can be adjusted for the selected cover-glass thickness, grounding design and electrical environment. Glove operation, wet-surface behavior and increased noise immunity are project options that require validation with the completed terminal.
A controlled bill of materials, approved drawings and interface definition help equipment manufacturers maintain a consistent terminal configuration across production batches. Component availability and replacement planning should be reviewed before volume production.
| Product category | Compact PCAP touch monitor for self-service equipment |
|---|---|
| Product series | YW03 custom series |
| Display sizes | 7, 8, 10.1, 12.1 and 13.3-inch options subject to project availability |
| Resolution | Selected according to LCD size and user-interface requirements |
| Touch technology | Projected capacitive touch |
| Touch-point configuration | Confirmed according to controller, interface and operating system |
| Touch interface | USB or project-defined interface |
| Display interfaces | HDMI, LVDS, Type-C or project-defined configuration |
| System configuration | Touch monitor or optional embedded Android platform |
| Communication options | USB, LAN, Wi-Fi, Bluetooth and serial interfaces according to configuration |
| Mounting | Embedded, wall-mounted, desktop or handheld configuration |

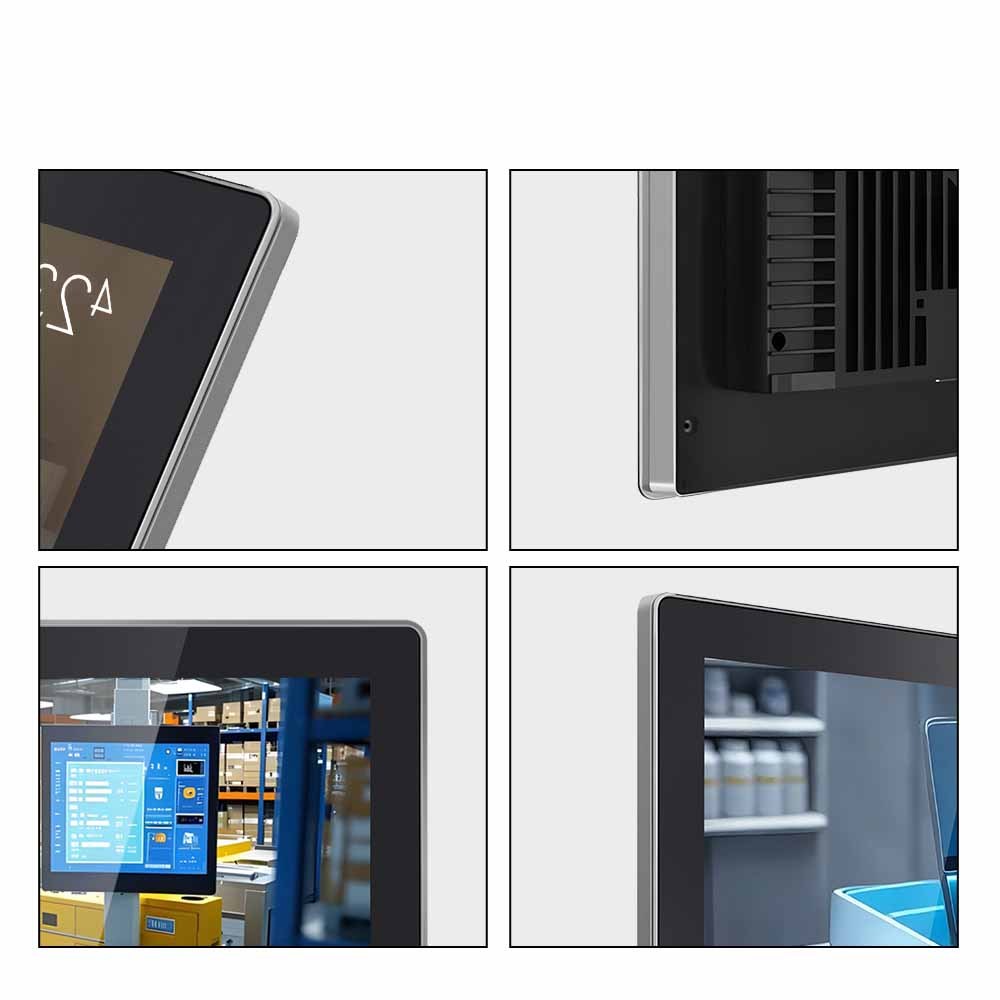

| Housing | Custom metal or project-specific enclosure |
| Cover glass | Custom outline, printed border, logo and surface treatment |
| Brightness | Selected according to indoor, near-window or semi-outdoor installation |
| Surface treatment | Clear, anti-glare or anti-fingerprint options |
| Optical bonding | Optional according to readability and mechanical requirements |
| Ingress protection | Project-defined; an IP33 configuration can be reviewed for the applicable structure |
| Operating temperature | Confirmed according to the selected LCD, controller, processor and enclosure |
| Customization | Size, glass, housing, mounting, interfaces, system, firmware, cable direction and logo |
| Commercial model | OEM/ODM project quotation; not a consumer retail product |
Configuration notice: The YW03 family includes different display and system options. Final parameters must be recorded in the approved specification sheet and should not be combined from different configurations.
The compact touchscreen provides a clear interface for visitor information entry, appointment confirmation, badge workflows and reception-area check-in without requiring a full-size floor-standing kiosk.
Supports service selection, number collection and appointment confirmation in banks, hospitals, government service centers and retail service locations.
The space-efficient structure can be integrated into reception desks, retail counters and service stations where equipment depth and counter space are limited.
Provides touch interaction for schedule selection, reservation confirmation and ticket collection when connected to the terminal controller and required peripherals.
Suitable for account lookup, membership registration, product information, digital forms and guided service workflows in public-facing environments.
A handheld or removable configuration can provide operators with a local service interface for equipment setup, diagnostics and maintenance. Drop protection and cable retention should be reviewed for the actual field conditions.
No. This product is positioned for self-service equipment and OEM terminal projects. Its housing, mounting, interfaces, touch firmware and system configuration can be adapted to the completed equipment.
Yes. It can be configured as a touch monitor connected to the customer’s host computer. An embedded Android platform can also be evaluated when a standalone system is required.
The product family can be reviewed in 7, 8, 10.1, 12.1 and 13.3-inch formats. LCD availability, resolution and mechanical dimensions must be confirmed for the selected configuration.
Peripheral integration depends on the selected system architecture and available USB, serial, LAN or GPIO interfaces. Provide the peripheral models and communication requirements during the project review.
Yes. The glass outline, printed border, logo, surface treatment, enclosure, stand, fixing holes, interface position and cable direction can be customized according to the equipment drawing.
Ingress protection depends on the selected enclosure and completed installation. An IP33 option may be reviewed for applicable configurations, but it should not be described as IP65 or fully waterproof without corresponding structural validation.
MOQ and lead time depend on the selected LCD, custom glass, housing, computing platform and certification requirements. Send the drawing, configuration and estimated quantity for a project-specific schedule.
Send your required screen size, enclosure drawing, mounting method, host-system architecture, peripheral list, interfaces, operating environment and estimated quantity. Ever Glory will review the display-only and integrated-system options before sample development.
Submit Your Terminal Requirements and Request a Project Quote
