This 15.6 inch wall mount industrial touch monitor is designed for factory workstations, machine-side control panels, production terminals, industrial HMI systems, and equipment monitoring interfaces. It combines full HD display performance, PCAP touch operation, metal housing options, and project-based customization for B2B industrial equipment applications.
Best for: factory workstations, machine-side operation panels, production line terminals, industrial monitoring stations, testing equipment, and control room auxiliary displays.
The 15.6 inch size is widely used in industrial environments because it provides a clear operating area without occupying excessive installation space. Compared with smaller 10.1 inch industrial displays, it offers more room for production data, alarm information, equipment status, and control menus. Compared with larger 21.5 inch monitors, it remains compact enough for workstation, wall-mounted, or machine-side installation.
This product is suitable for equipment builders and system integrators that need a reliable industrial touch monitor for factory automation, production monitoring, equipment control, and HMI operation.
Wall mount installation is useful when the touch monitor needs to be placed beside machines, production lines, inspection stations, or workbenches. It keeps the control interface visible and accessible while reducing occupation of cabinet or desktop space.
This monitor uses projected capacitive touch technology for smooth and accurate operation. It can support multi-touch interaction and can be evaluated for glove touch, cover glass thickness, wet-hand operation, and anti-interference requirements according to the application environment.
For factory applications, the front glass, surface treatment, cable layout, interface configuration, and housing structure can be customized to match different control systems and installation conditions.

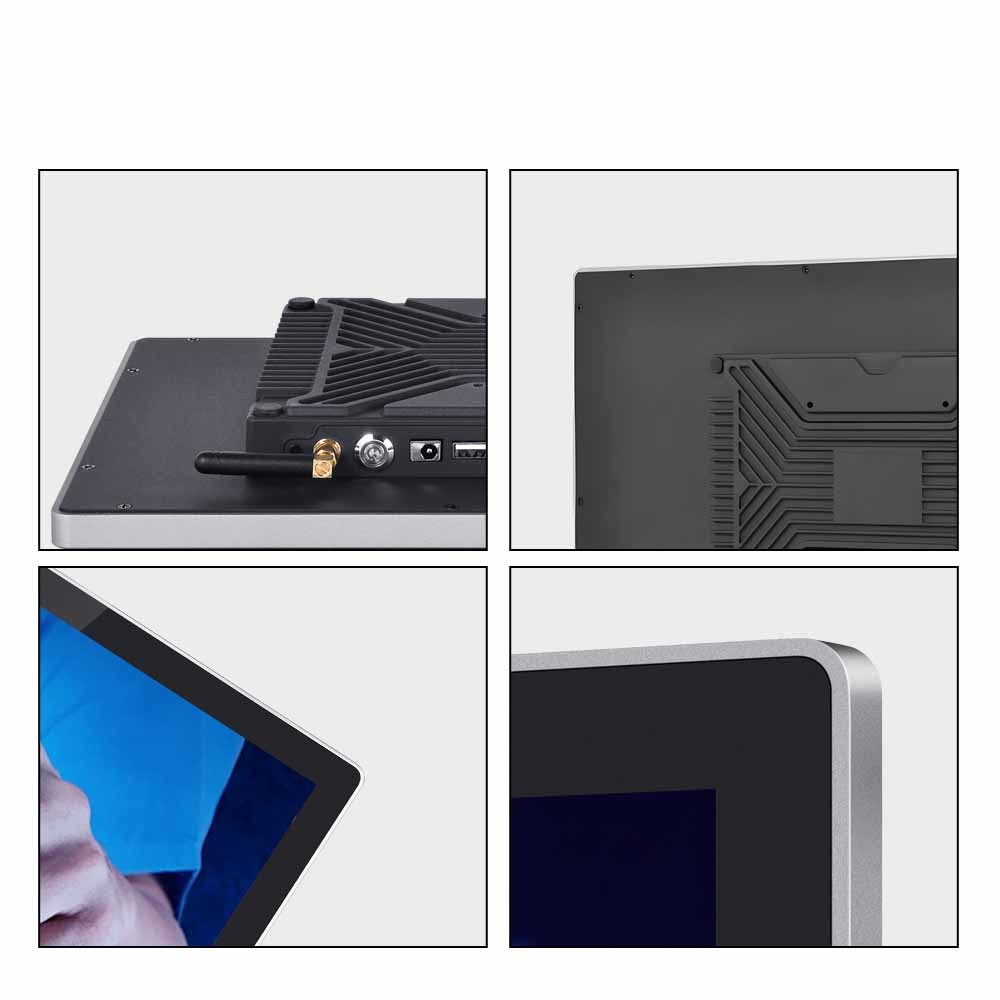

Industrial touch monitors need more than a display panel. They must support stable operation, convenient installation, clear visibility, and long-term use in equipment environments. This 15.6 inch wall mount model can be configured with metal housing, front sealing design, strengthened cover glass, customized cable direction, and multiple signal interfaces.
Ever Glory supports B2B projects where the display is integrated into automation equipment, factory terminals, production line systems, industrial cabinets, or monitoring workstations.
Ever Glory provides project-based customization for industrial equipment manufacturers, HMI solution providers, automation system integrators, and machine builders. Available custom options include:
If your project requires a customized wall mount industrial touch display, please visit our customization capabilities page or send your equipment drawing to our team for evaluation.
| Factory Workstations | Production data viewing, operator input, process monitoring, and workstation control |
| Machine-Side Control Panels | Parameter setting, operating menu display, alarm information, and equipment status control |
| Production Line Terminals | Line status display, inspection input, shift operation, and process tracking |
| Industrial HMI Systems | Human-machine interface operation for automation and control systems |
| Testing and Inspection Equipment | Measurement display, test control, quality inspection, and system operation interface |
| Product Type | 15.6 Inch Wall Mount Industrial PCAP Touch Monitor |
| Application | Factory workstations, machine-side control panels, production terminals, industrial HMI systems |
| Resolution | 1920 × 1080 |
| Luminance | 350 cd/m² or customized brightness optional |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 89/89/89/89 |
| Touch Technology | Projected capacitive touch |
| Touch Points | 10-point touch optional |
| Mounting Method | Wall mount / VESA mount / custom bracket optional |
| Surface Hardness | IK07 |
| Signal Input | HDMI + VGA |
| Power Connector | DC 5521 |
| Operating Temperature | -20°C to 70°C |
| Customization | Brightness, glass, interface, cable, housing, logo, mounting bracket, and front protection |
To help us evaluate the correct configuration, please provide the following information when sending an inquiry:
Send Factory Workstation Touch Monitor Requirements
It is mainly used for factory workstations, machine-side control panels, production line terminals, industrial HMI systems, testing equipment, and monitoring stations.
Yes. The product can support wall mount, VESA mount, or customized bracket structures according to the project installation requirement.
Yes. It uses projected capacitive touch technology and can support responsive multi-touch operation for industrial HMI interfaces.
Yes. Brightness, cover glass thickness, surface treatment, logo printing, and front protection can be customized according to the equipment environment.
Yes. This model is suitable for B2B equipment manufacturers, automation system integrators, and industrial HMI solution providers that need customized touch monitor solutions.
