This large-format 16:9 PCAP touch monitor is designed for OEM equipment requiring a larger visual workspace, accessible touch controls and integration into a wall, kiosk or equipment enclosure. It is suitable for interactive directories, showroom displays, large self-service terminals, industrial dashboards and collaborative control stations.
Available configurations can be reviewed according to the required screen size, Full HD or 4K resolution, viewing distance, mounting orientation and operating environment. Ever Glory supports customization of the cover glass, PCAP sensor, touch controller, optical bonding, brightness, metal housing, VESA structure, interfaces, cable direction and branding. Final specifications are confirmed after reviewing the equipment drawing and application requirements.
This large-format PCAP touch monitor provides a widescreen visual and touch interface for equipment that must present more information than a conventional countertop display. The 16:9 format is suitable for maps, directories, product catalogs, equipment dashboards, training content and multi-step self-service workflows.
The product is intended for OEM integration rather than consumer desktop use. Screen size, resolution, glass, touch controller, housing, mounting and interface configuration are selected according to the user’s viewing distance, interaction method and installation structure.
A 32–43-inch format is normally appropriate for standing users operating at close range. Typical applications include wayfinding kiosks, product selectors, museum information stations and larger self-service terminals.
The interface should keep primary controls within the user’s comfortable reach zone. Frequently used buttons should not be placed only at the upper corners of a tall portrait display.
A 43–55-inch touchscreen provides more space for building maps, product comparisons, interactive catalogs and presentation content. It can support one active user while remaining visible to nearby observers.
Mechanical design must account for the increased cover-glass area, total product weight and possible chassis deflection.
Larger formats can be used for design review, operational planning, training and collaborative visualization. These installations require careful consideration of wall structure, mounting height, touch reach, 4K resolution and service access.
A large diagonal does not mean the entire panel is comfortable to touch. The user interface should keep interactive controls within the practical reach area and use the remaining space for visualization.
The widescreen format can display navigation, images, status data and instructions side by side. It is suitable for dashboards and applications that would require excessive scrolling on smaller displays.
Full HD can be suitable for moderate viewing distances and larger interface elements. For 55-inch and larger displays viewed at close range, 4K should be evaluated to maintain text and line-detail clarity.
The host computer must support the selected resolution, refresh rate and cable length. Resolution should be confirmed before developing the final user interface.
PCAP technology supports direct finger operation and configurable multi-touch gestures. On large screens, sensor layout, controller channels, firmware filtering and edge calibration directly affect uniformity across the entire active area.
Final touch validation should cover the center, four corners and all edges rather than testing only the central area.

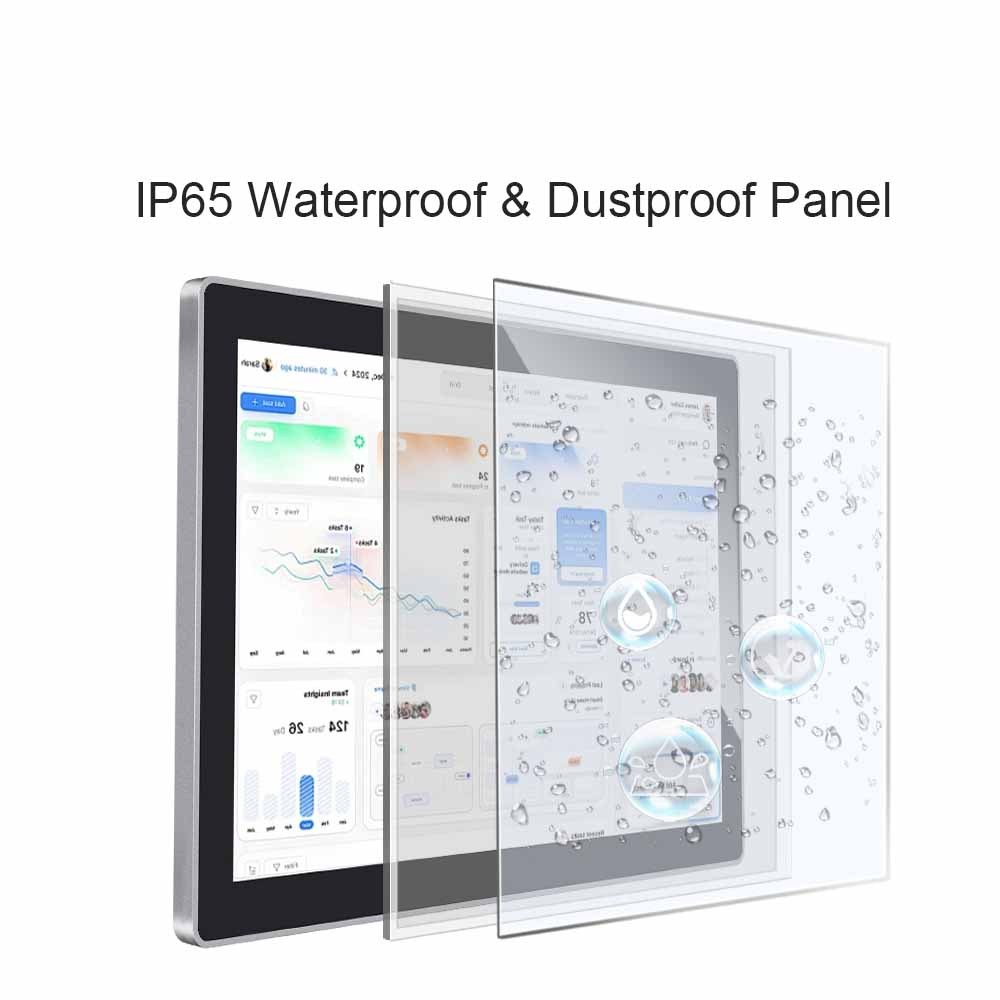

The cover glass can be customized in outline, thickness, printed border, logo and surface treatment. Glass selection must balance touch sensitivity, impact requirements, total weight and mounting stress.
Anti-glare treatment can reduce reflections from ceiling lights, exhibition lighting and windows. Anti-reflection treatment can improve perceived contrast, while anti-fingerprint treatment supports easier cleaning in high-touch public environments.
Excessive AG haze can reduce text sharpness, particularly on 4K displays viewed at close range. The optical treatment should be selected from an application sample.
OCA or OCR optical bonding can reduce internal reflection and parallax between the cover glass and LCD. It is useful for near-window equipment, detailed maps and large interfaces where touch alignment and contrast are important.
The monitor can be configured with an enclosed metal housing or an open-frame chassis. VESA, wall-mount, embedded and customized bracket options can be reviewed according to the equipment structure.
HDMI and DisplayPort are suitable for current Full HD or 4K hosts, while DVI or VGA can be evaluated for legacy systems. USB is normally used for touch input. Cable length, signal quality and connector retention require special attention on large wall-mounted installations.
| Product category | Custom large-format PCAP touch monitor |
|---|---|
| Display format | 16:9 widescreen |
| Display size | Selected according to viewing distance, touch reach and installation space |
| Resolution | 1920 × 1080 Full HD or 3840 × 2160 4K, subject to LCD configuration |
| Brightness | Configured for controlled indoor or high-ambient-light installation |
| Touch technology | Projected capacitive touch |
| Touch points | Configured according to controller, interface and operating system |
| Touch interface | USB or project-defined interface |
| Touch structure | G+G or project-defined construction |
| Cover glass | Custom dimensions, thickness, printing, logo and edge processing |
| Surface options | Clear, anti-glare, anti-reflection or anti-fingerprint |
| Optical bonding | Optional OCA or OCR full bonding |
| Display interfaces | HDMI, DisplayPort, DVI, VGA or project-defined combination |
| Housing | Metal enclosure or open-frame equipment-integration chassis |
| Mounting | VESA, wall mount, embedded or customized bracket |
| Orientation | Landscape or portrait subject to LCD and thermal approval |
| Front protection | Defined according to cover glass, gasket, mounting and completed enclosure |
| Operating temperature | Confirmed according to the selected LCD, touch controller and power system |
| System compatibility | Windows, Linux and Android subject to controller and driver configuration |
| Customization | Size, LCD, glass, touch firmware, bonding, housing, interfaces, mounting and branding |
| Commercial model | OEM/ODM project quotation; not a fixed retail configuration |
Specification notice: This page describes a configurable large-format product family. Screen size, resolution, brightness, touch points, glass thickness and mounting load must be confirmed in the approved project specification.
A large portrait or landscape screen can display floor maps, tenant search, routes and accessibility information. The mounting height and touch zones must accommodate both standing and wheelchair users.
Dealerships, equipment showrooms and building-material centers can use the widescreen interface for product comparison, option selection, videos and configuration tools. AG treatment should be evaluated under the actual showroom lighting.
The monitor can support service selection, form completion, wayfinding and document review in government centers, hospitals and transport facilities. Payment and identity peripherals connect through the terminal host rather than directly through the display.
A large PCAP surface supports interactive timelines, image exploration and educational content. The enclosure should prevent users from transferring excessive body weight to the glass or display frame.
The screen can present production status, alarms, line diagrams and maintenance information to operators standing at a shared control station. Frequently used controls should remain within reach, while overview data can occupy the upper area.
Large screens can support engineering drawings, workflow planning and team review. A 4K configuration should be considered when users need to inspect small annotations or detailed diagrams at close range.
The 16:9 format provides space for maps, schedules, language selection and large accessible controls. Equipment designers must account for viewing angle, reach distance and continuous public operation.
A 32–43-inch screen is commonly suitable for single-user kiosks, while 43–55-inch formats provide more visual space for directories and showrooms. Larger screens should be selected only after reviewing viewing distance, touch reach and mounting capacity.
Full HD can be sufficient for larger buttons and moderate viewing distances. For a 55-inch or larger display viewed at close range, 4K should be evaluated for sharper text, maps and technical graphics.
Yes. The supported touch-point count depends on the PCAP controller, USB interface, operating system and application. The required gestures should be defined before controller selection.
Portrait installation can be evaluated after confirming LCD viewing characteristics, mounting loads, heat distribution, content layout and cable direction.
Yes. Available options include the glass outline, thickness, printed border, logo, transparent windows, surface treatment and edge processing.
Yes. Large cover glass and metal housings create higher static and dynamic loads. The wall, stand, brackets and fixing points must be designed for the completed monitor weight and user-applied force.
Outdoor use is not determined by screen size alone. It requires separate confirmation of brightness, optical treatment, UV resistance, temperature, sealing, condensation control and enclosure cooling.
Send your required screen size, viewing distance, equipment drawing, mounting orientation, Full HD or 4K requirement, touch-point count, ambient lighting, interfaces and estimated annual quantity. Ever Glory will review the LCD, PCAP controller, glass, mounting and enclosure configuration before sample development.
