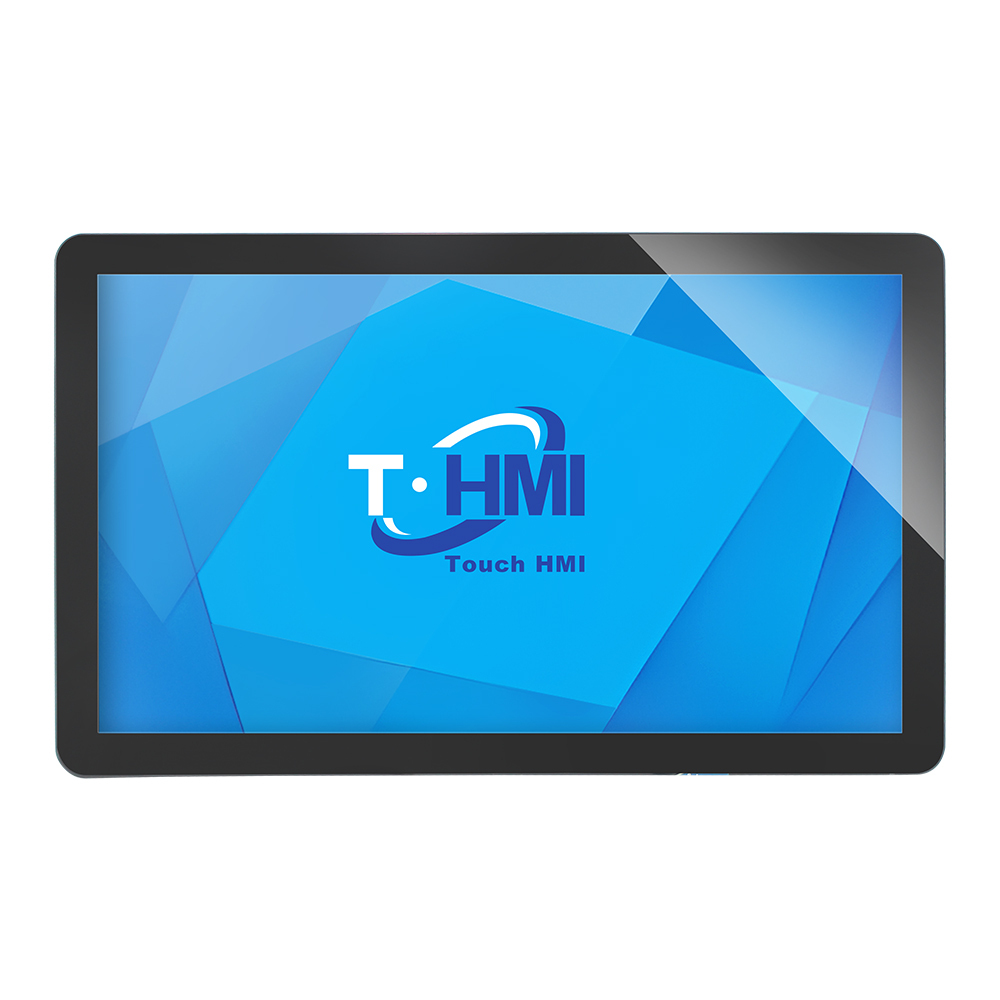

This 27-inch outdoor PCAP touch monitor is designed for unattended terminals that require a large 16:9 interface, high-brightness display and project-specific environmental protection. Its 1000 cd/m² LCD provides improved visibility for product menus, charging information, parking transactions, payment instructions and public-service workflows in bright and semi-outdoor locations.
Typical applications include outdoor vending machines, EV charging terminals, parking-payment equipment, fuel dispensers and automatic car-wash systems. Ever Glory supports OEM/ODM customization of the cover glass, AG/AR treatment, optical bonding, touch firmware, front sealing, metal housing, mounting, interfaces, thermal structure and branding. Final sunlight readability, IP protection and operating temperature must be validated on the approved configuration.
This 27-inch outdoor touch monitor combines a large 16:9 display, 1000 cd/m² high-brightness backlight and projected capacitive touch for outdoor-facing equipment. It is intended for OEM integration into kiosks, charging cabinets, vending machines and other unattended terminals.
The large display area provides enough space for visual instructions, maps, product categories, transaction information and accessible touch controls. Environmental performance depends on the complete configuration, including cover glass, sealing, touch firmware, thermal design, enclosure and cable entries.
The 1000 cd/m² LCD improves visibility in covered outdoor locations, open parking facilities, transport stations and other high-ambient-light environments. It also provides additional brightness margin for light loss caused by cover glass and optical coatings.
Direct-sun readability must be evaluated as a complete optical system. Glass reflectance, optical bonding, AG haze, display contrast, sun angle and equipment shading all affect the image seen by the user.
The widescreen format can display payment steps, equipment status, product information and instructions without forcing the user to navigate through excessive page changes. The larger diagonal also supports readable text and touch targets at a greater viewing distance.
Anti-glare treatment diffuses reflections from sunlight, vehicle headlights and surrounding equipment. Anti-reflection treatment reduces direct surface reflection and helps preserve perceived contrast. Anti-fingerprint treatment can be added for easier maintenance.

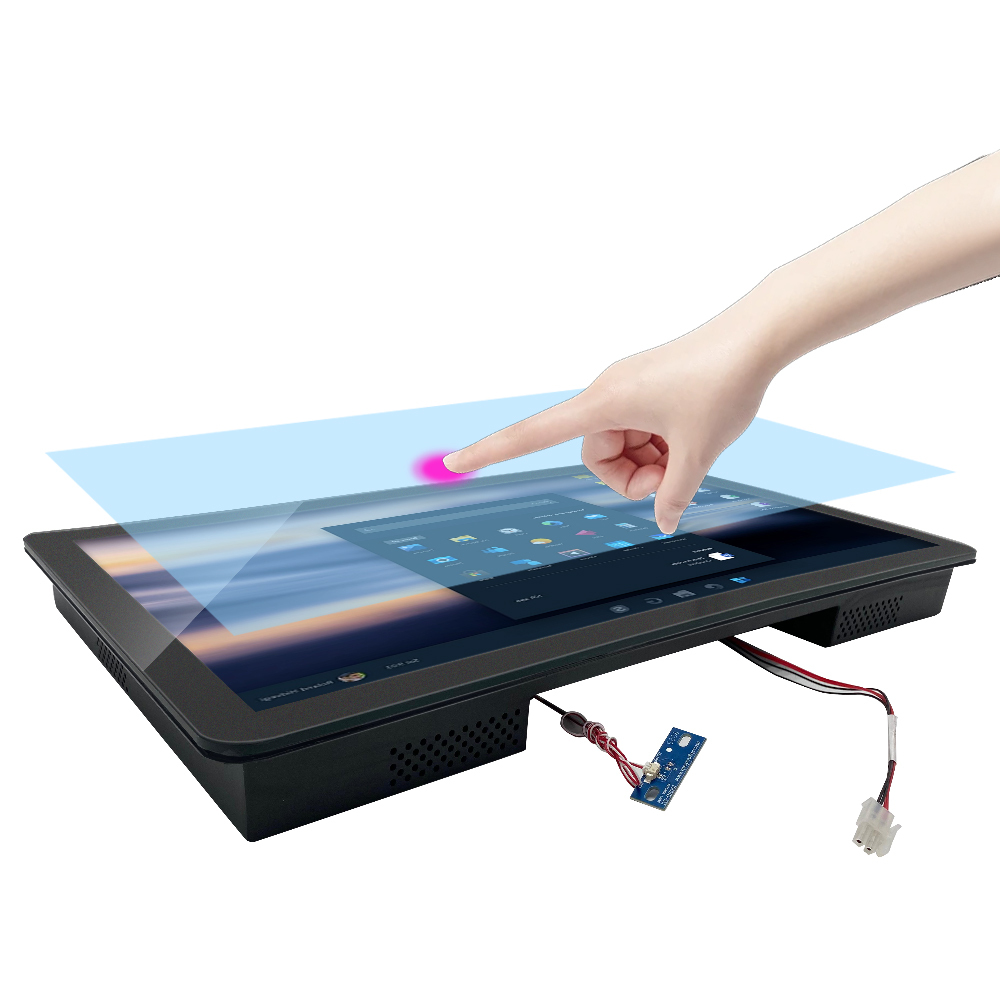

PCAP touch supports direct selection, scrolling, maps and transaction workflows. Glove operation, water rejection and wet-finger response require firmware tuning with the final cover glass, grounding and equipment enclosure.
An IP65 front-side configuration can be developed using tempered cover glass, sealing adhesive, gasket and controlled panel compression. The rating applies only to the tested structure and protected side.
Rear connectors, cable entries, ventilation openings and the host enclosure must be protected separately. Do not describe the complete monitor as IP67 or IP68 unless that exact finished configuration has been tested accordingly.
A 3 mm tempered cover-glass and IK08-oriented structure can be evaluated for unattended public equipment. Final impact performance depends on glass treatment, edge support, adhesive, mounting frame and the specified test method.

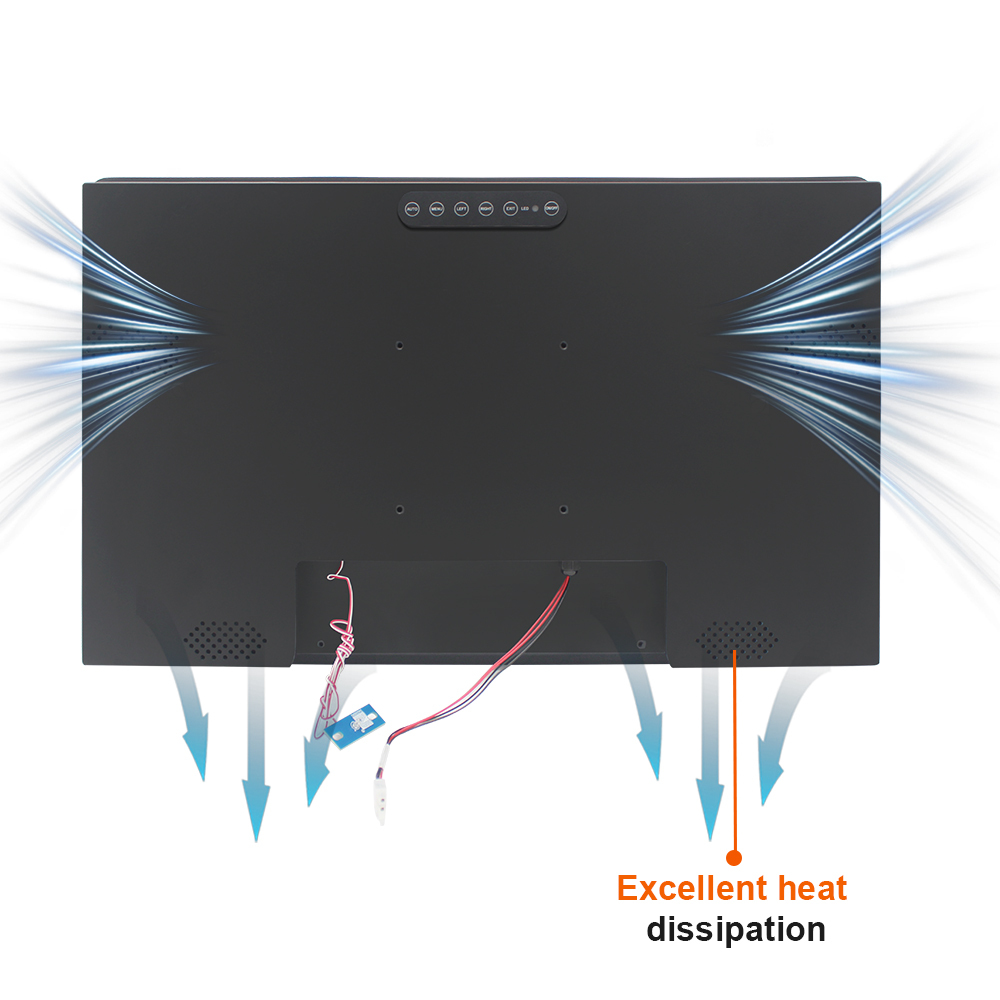

A high-brightness 27-inch LCD produces substantial heat. Direct sunlight can further increase the temperature inside a sealed equipment cabinet. The monitor chassis and host enclosure should provide a defined heat path and sufficient airflow or active thermal control.
Depending on the measured internal temperature, available options include heat sinks, natural-convection channels, controlled fans, heat exchangers and automatic backlight reduction.
A heater film and temperature controller can be evaluated for equipment that must start below 0°C. Heater power, activation threshold, temperature uniformity and condensation behavior must be verified in the final enclosure.
UV-resistant polarizers, inks, adhesives, coatings and housing materials can reduce outdoor yellowing and degradation. Performance must be specified through the selected materials and applicable accelerated-weathering test rather than an unsupported service-life claim.
| Display size | 27 inches |
|---|---|
| Aspect ratio | 16:9 |
| Resolution | 1920 × 1080 Full HD, subject to approved LCD |
| Typical brightness | 1000 cd/m² |
| Typical contrast ratio | 1500:1 |
| Viewing angle | Up to 178° |
| Touch technology | Projected capacitive touch |
| Touch points | Configured according to controller and operating system |
| Touch interface | USB or project-defined interface |
| Cover glass | 3 mm tempered-glass configuration; custom printing and outline available |
| Surface treatment | AG and AR; AF optional |
| Optical bonding | Optional OCA or OCR bonding |
| Front protection | IP65 option after correct installation and validation |
| Impact protection | IK08 option subject to final glass and structure |
| Operating temperature | −20°C to +70°C configuration subject to final BOM |
| Low-temperature heating | Optional heater film and temperature-control board |
| Brightness control | Optional ambient-light sensor and automatic backlight control |

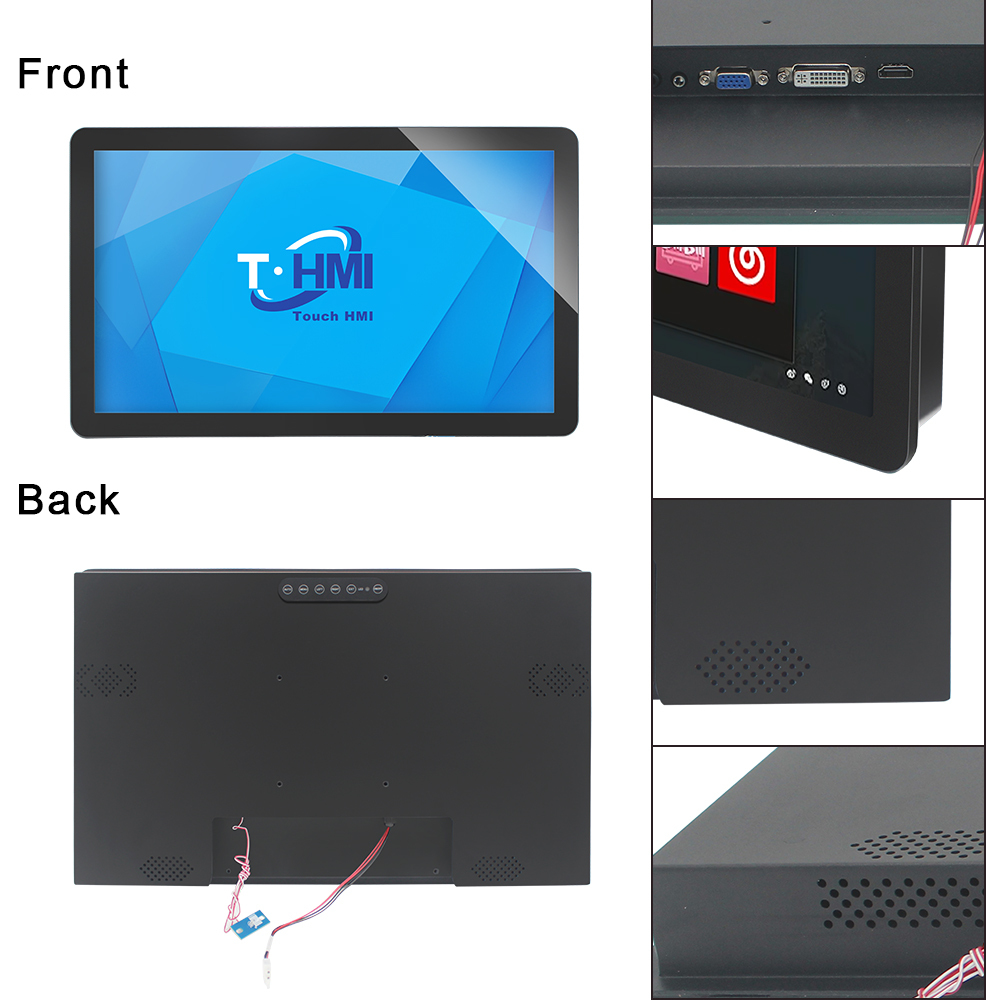

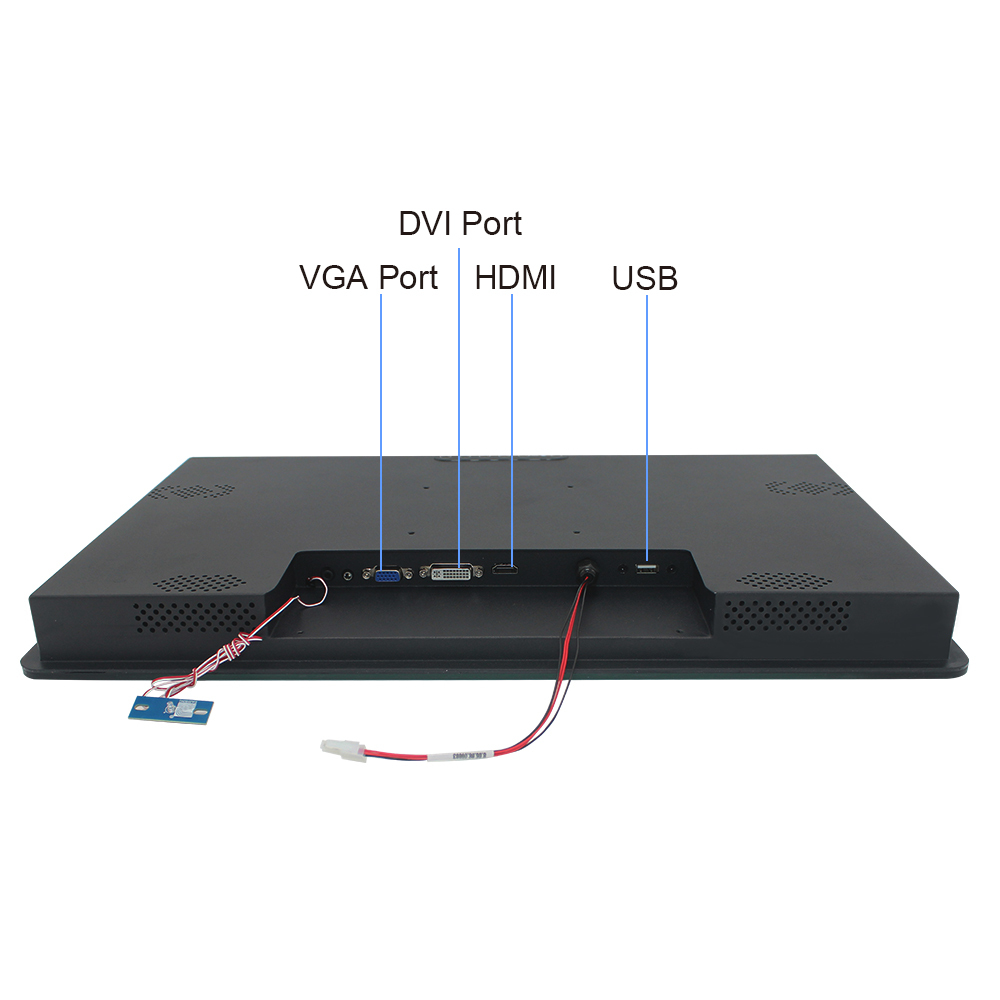

| Display interfaces | HDMI, VGA, DVI, DisplayPort or project-defined combination |
| Housing | Metal housing with project-specific heat-dissipation structure |
| Mounting | Panel mount, open frame, VESA or customized installation |
| Customization | Glass, brightness, bonding, touch firmware, sealing, thermal design, housing, interfaces and logo |
| Commercial model | OEM/ODM project quotation; not a fixed-price retail product |
Specification notice: IP65, IK08 and −20°C to +70°C apply only when listed in the approved project specification. Outdoor performance must be verified after installation in the final equipment enclosure.
The 27-inch screen provides room for product images, category navigation, stock information, payment instructions and promotional content. The enclosure must manage rain paths, solar heat, condensation and access to rear electronics.
The large display can present charging status, connector guidance, tariffs, QR codes and advertising simultaneously. Covered or semi-outdoor charging sites are suitable starting environments for a 1000-nit configuration; exposed sites require on-location readability and thermal testing.
The 16:9 interface supports license-plate information, parking duration, payment steps and receipt selection. AG and AR glass help reduce reflections from open entrances, overhead lighting and vehicle headlights.
The display can show fuel selection, safety messages, payment prompts and loyalty information. The monitor itself is not an explosion-proof device; hazardous-location compliance must be addressed by the completed certified equipment.
A front-sealed configuration can protect the operator-facing surface from spray. Wet-touch firmware should be validated with the actual water film, detergent, grounding, spray direction and cleaning pressure.
The larger screen supports route maps, timetables, language selection and accessible touch controls. Installation height, screen angle and reach distance should accommodate standing and wheelchair users.
The display can support government services, campus information, tourist guidance and facility directories. Long-term deployment requires consideration of UV exposure, vandal resistance, cooling and maintainable component access.
It is a practical starting point for covered and semi-outdoor equipment. Fully exposed direct-sun installations should be tested with the actual glass, optical bonding, sun angle, enclosure shading and operating temperature.
Only the tested configuration and protected side should be described as IP65. Front-side protection does not automatically include rear connectors, ventilation openings and cable entries.
Only if the exact complete monitor configuration is designed and tested for that rating. A housing with unsealed ventilation openings cannot be treated as an immersion-rated enclosure.
A −20°C configuration and optional heater can be evaluated. Cold-start performance depends on the LCD, touch controller, power supply, heater capacity and enclosure temperature.

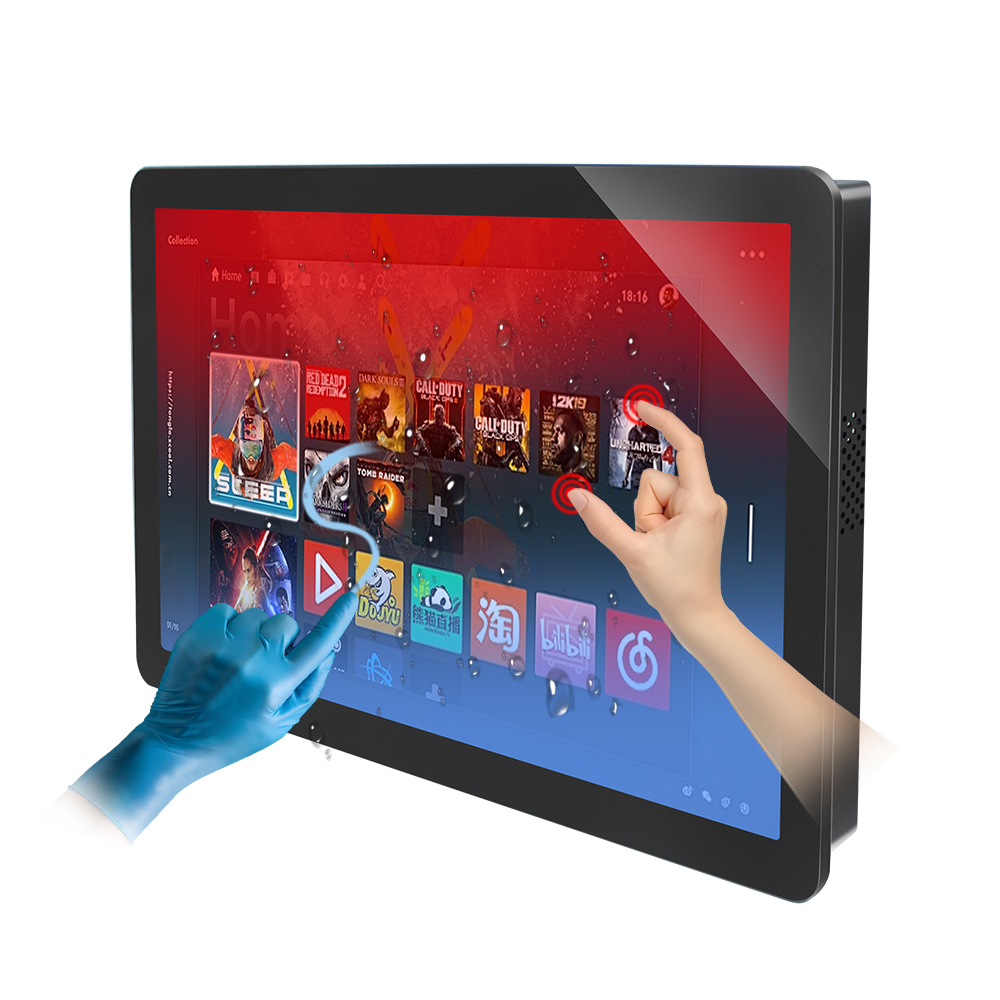

Wet-touch performance can be tuned, but rain droplets, continuous water films and detergent can create different touch conditions. Testing must use the actual enclosure, glass and water exposure.
An ambient-light sensor and automatic backlight-control option can be evaluated. The control curve should maintain readability during the day while reducing glare, power and heat at night.
This product is primarily a touch monitor. If processor, storage, communications and an operating system are required, request an outdoor panel PC configuration.
Send your equipment drawing, installation location, direct-sun conditions, maximum enclosure temperature, required IP and IK levels, touch conditions, interfaces and annual quantity. Ever Glory will review the optical, sealing, touch and thermal configuration before sample development.
