IP65 Front-Sealed Industrial Touch Monitor for Wet and Dusty Equipment

IP65 Front-Sealed Touch Monitor for Industrial Equipment

This IP65 front-sealed industrial touch monitor provides a cleanable operator interface for equipment exposed to dust, water splash, oil residue, humidity or frequent wiping. It is intended for OEM equipment manufacturers and system integrators that require a display and touch solution adapted to the final enclosure instead of a standard retail monitor.

The monitor combines projected capacitive touch technology, flat cover glass and a configurable metal housing. Ever Glory can review the customer’s opening drawing, protected side, environmental exposure and interface requirements before confirming the production configuration.

Engineering Features

IP65 Front-Side Protection

The front sealing structure is designed to resist dust ingress and water jets from the operator-facing side after correct panel installation. Actual protection depends on the gasket, mounting surface, opening tolerance, compression condition and completed enclosure assembly.

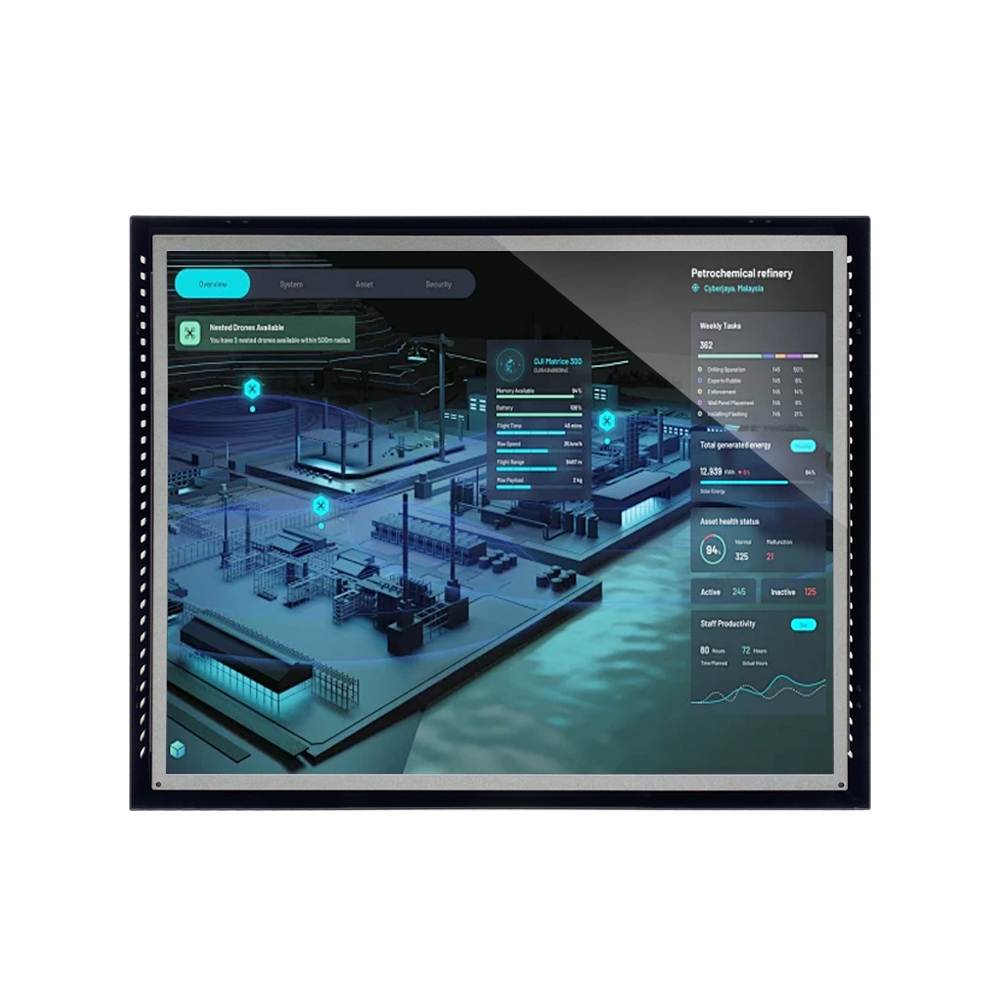

Flat and Easy-to-Clean Front Glass

The edge-to-edge cover glass reduces exposed gaps where dust, oil and cleaning residue can accumulate. Clear, anti-glare, anti-reflection and anti-fingerprint surface options can be evaluated according to visibility and maintenance requirements.

Project-Tuned PCAP Touch

Projected capacitive touch provides responsive operator control for industrial HMIs and public-use terminals. Wet-finger operation, glove compatibility, false-touch suppression and thick-cover-glass performance require controller selection, firmware tuning and validation under the actual operating conditions.

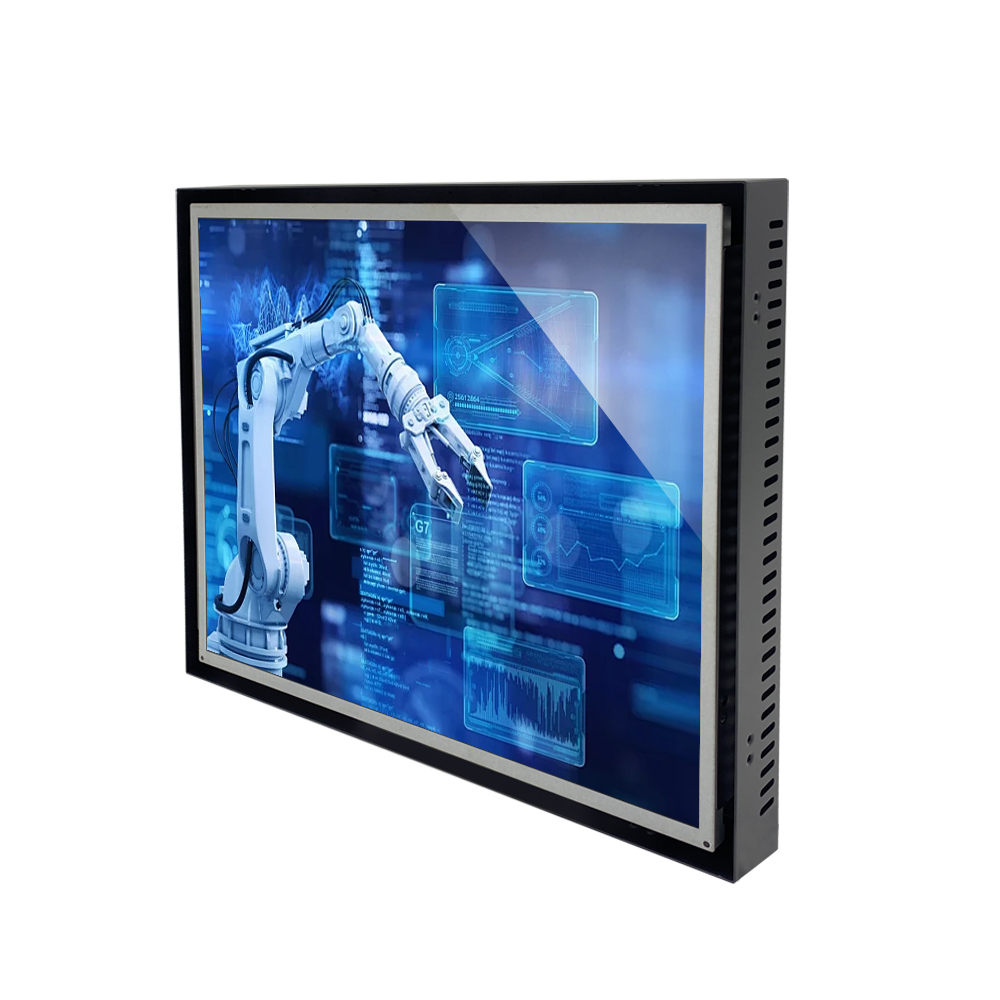

Custom Sealing and Mechanical Structure

The cover glass outline, printed border, gasket, housing, mounting points and cable direction can be customized to match the customer’s equipment. The required protected side must be defined before the sealing and mounting structure is approved.

Configurable Display and Interfaces

Screen size, resolution, brightness, viewing angle, video input, touch interface, power input and connector position can be configured by project. High-brightness backlights and optical bonding can be considered for installations near windows or in outdoor-facing equipment.

OEM and ODM Project Support

Project support can include drawing review, controller tuning, sample development, environmental validation, pilot production and scheduled batch supply. Component availability, certification requirements and change-control expectations should be confirmed before production approval.

What IP65 Front Protection Means

IP65 front protection does not mean that the complete monitor is waterproof from every direction. It applies to the operator-facing surface when the monitor is installed according to the approved mechanical and sealing design.

• Front surface: Designed for dust and water-jet exposure under the defined installation conditions.

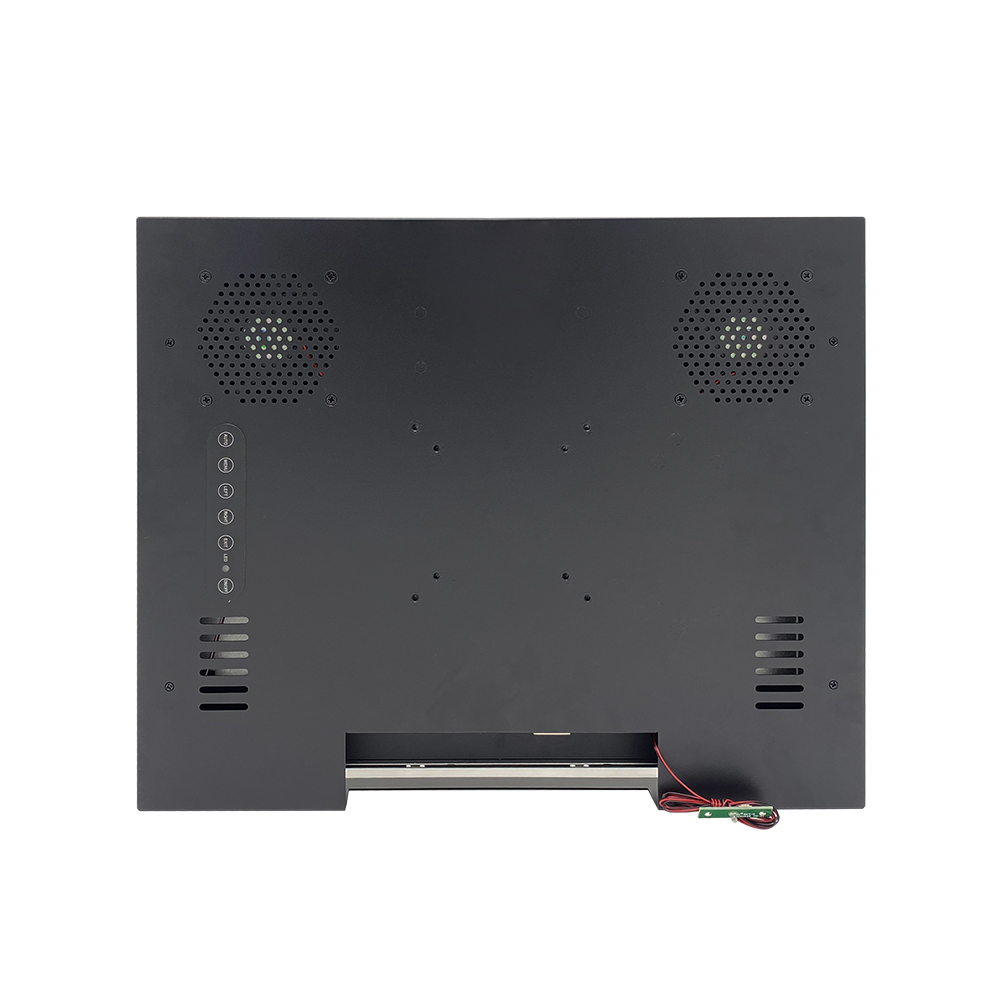

• Rear housing: Protection depends on the selected housing and host enclosure.
• Connectors: Standard connectors may require a protected compartment or sealed connector solution.
• Immersion: IP65 does not indicate suitability for immersion.
• High-pressure cleaning: Requires a separate environmental assessment and protection target.
• Final validation: The completed equipment should be tested in its production installation configuration.

Typical Specifications

Specification notice: Final parameters are confirmed after reviewing the protected side, installation drawing, liquid exposure, cleaning method, interfaces and operating environment.

Typical Applications

Packaging and Processing Machinery

Provides a sealed and cleanable operator interface for equipment exposed to dust, product residue, humidity and occasional liquid splash.

Food-Related Production Equipment

Supports control panels requiring frequent wiping and front-side splash protection. Cleaning-agent compatibility, water pressure and hygiene requirements must be evaluated separately.

Wet and Dusty Industrial Control Panels

Helps protect the operator-facing display on machinery operating in dusty, oily or moisture-prone production areas.

Laboratory and Medical Equipment

The flat front glass supports routine surface cleaning, while material compatibility and regulatory compliance remain subject to the completed equipment.

Self-Service Terminals

Supports terminals exposed to frequent touching, routine cleaning and occasional liquid contact without relying on a consumer desktop-monitor structure.

Information Required for Engineering Review

• Required screen size, resolution and active display area
• Panel opening drawing or 3D mechanical file
• Target IP rating and the side requiring protection
• Expected exposure to splash, water jets, oil, dust or cleaning chemicals
• Cleaning method, frequency, temperature and pressure
• Bare-finger, glove or wet-touch requirements
• Required display, touch and power interfaces
• Indoor, near-window, semi-outdoor or outdoor-facing installation
• Operating temperature and humidity range
• Target market, compliance requirements and estimated annual quantity

Frequently Asked Questions

Is the complete industrial touch monitor waterproof?

Not necessarily. The standard protection described on this page applies to the front side after correct installation. Rear housing, connectors and cable entries require separate protection according to the completed equipment design.

Can the monitor withstand high-pressure washdown?

IP65 should not be treated as approval for every high-pressure cleaning process. Please provide the water pressure, distance, temperature, cleaning direction and chemical exposure for engineering review.

Can the touchscreen operate with wet fingers or gloves?

Wet-finger and glove operation can be developed through controller selection and firmware tuning. Performance must be validated with the actual glove material, water condition, cover-glass thickness and grounding structure.

Can the cover glass and sealing gasket be customized?

Yes. Available ODM options include glass dimensions, thickness, printed border, logo, surface treatment, gasket material, sealing position, housing, mounting holes and cable direction.

What are the MOQ and lead time?

MOQ and lead time depend on the LCD size, custom glass, tooling, sealing structure and validation requirements. Send the drawing and estimated quantity for a project-specific sample and production schedule.
