Name: Industrial PC Touch Screen Monitor | Ever Glory
Brand: Everglory Monitor
Availability: InStock
Rating: 5 (1 reviews)

Description

Thick gloves are not supported, serious false touches with wet hands, local unresponsiveness or false triggering after covering with oil, water stains or dust, insufficient protection level below front IP65, dust and oil intrusion leading to touch failure and panel yellowing – these are the most common and troublesome problems in industrial applications. So how do we solve these pain points?

Bennefit of the Industrial PC Touch Screen Monitor

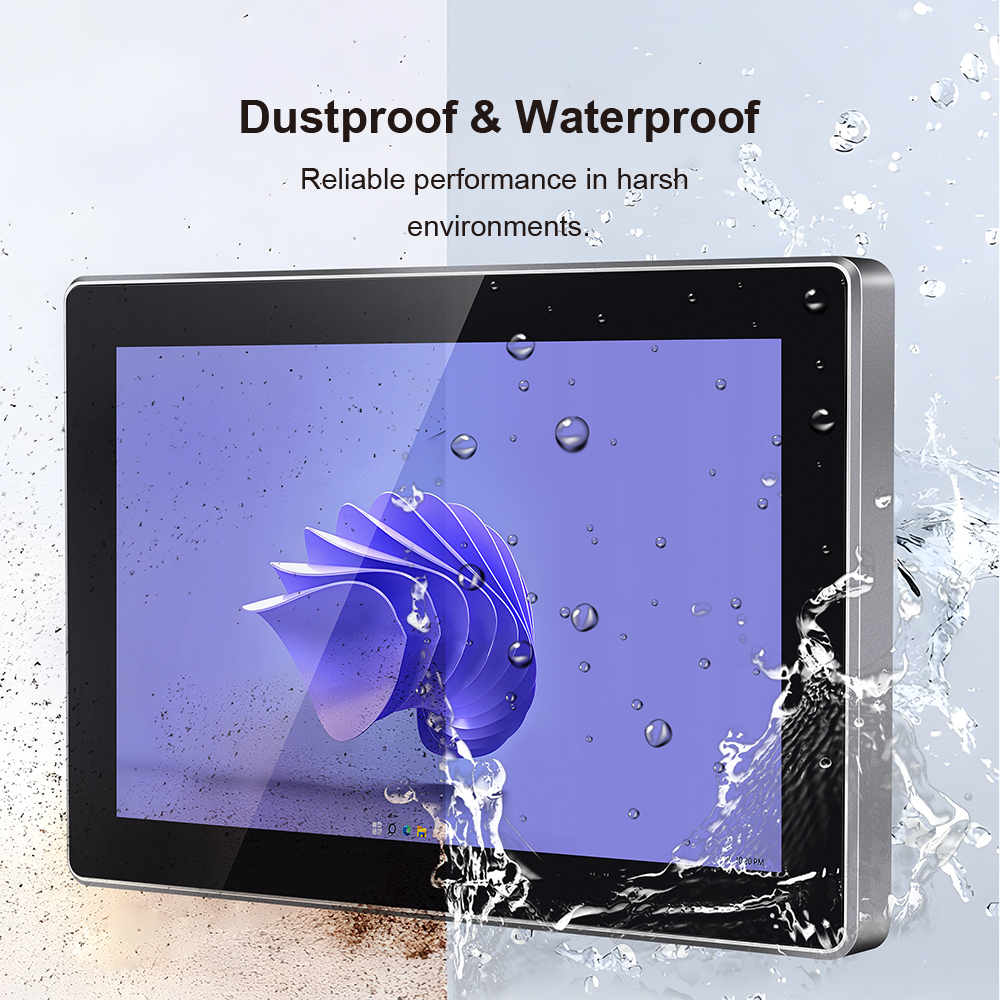

1.The whole machine adopts fully enclosed sealed glue pouring + waterproof rubber ring for double-layer sealing, with a front protection level reaching IP65. It effectively blocks the intrusion of dust, oil fumes and particles, and isolates the splashing penetration of daily cleaning agents and cutting fluids, avoiding internal corrosion and touch short-circuit failure from the source.

2.The panel uses chemically resistant glass + special coating, with an AG anti-glare finish.It resists oil contamination, withstands chemical corrosion, and will not turn white, yellow or fog due to cleaning agents. It remains clear and non-aging for long-term use.

3.Touch sensors, FPC cables and driver boards all adopt oil-resistant and corrosion-resistant industrial-grade materials. Key interfaces are sealed with glue pouring to prevent oil and liquid from penetrating and corroding circuits, ensuring stable touch performance.

4.It features a screw-free, pure flat design with a flat front surface, no protrusions and no screw holes, leaving no dead corners for dust and oil accumulation. It is not easy to trap dirt, and there are no gaps for water ingress during daily wiping or spray cleaning, making it suitable for frequent cleaning in workshops and commercial stores.

5.High-contrast industrial panel with a contrast ratio of ≥1000:1, paired with a 178° full-view wide-angle LCD screen. It delivers no color shift or whitening when viewed from side, oblique or top angles, with clear dark details and sharp text, effectively eliminating gray and blurry display effects.

6.Standardized mass production with large-scale full lamination production lines enables high-brightness screens, wide-view screens and fully laminated screens to be supplied with high compatibility, superior consistency and cost efficiency, perfectly meeting the demands of mass commercial and industrial projects.

7.Full lamination process eliminates the air gap between glass and LCD screen, greatly reducing glare while boosting contrast and transparency. It delivers a remarkable upgrade in visibility and visual experience even under direct sunlight.

8.The whole machine achieves ±8kV contact electrostatic protection and ±15kV air electrostatic protection. TVS anti-static diodes, varistors and filter magnetic beads are added to key circuits to prevent electrostatic breakdown of the touch IC and drive circuits.

9.Built-in hardware filtering and anti-interference algorithm shields high-harmonic interference generated by inverters, motors and frequency conversion start-stop operations, effectively suppressing touch drift, random tapping, false triggering and screen distortion.

10.Adopting a structure of metal shielding cover, shielded flexible cables and reliable single-point grounding, the main board, touch panel and backlight zones are electromagnetically isolated. Signal lines are routed separately from high-voltage lines to avoid coupled interference from high-voltage equipment.

11.FPC touch cables, serial port and network port communication cables adopt shielded wires with grounded wrapping, reducing electromagnetic radiation coupling in space and preventing communication disconnection and command interruption caused by interference.

FAQ
1.Q:Will the touch screen have random jumps or drift when used near inverters and motors?
A: No, it won’t. The device is built with hardware filtering and anti-interference algorithms, paired with metal shielding covers, shielded cables and reliable grounding design. It can effectively shield high harmonic interference and maintain stable touch performance without drift or false touches.

2.Q: Will static electricity lead to touch failure or main board burnout in dry environments?
A: No, it won’t. The whole machine supports ±8kV contact ESD protection and ±15kV air ESD protection. Key circuits are fitted with TVS anti-static diodes, varistors and magnetic beads to avoid electrostatic breakdown of touch ICs and circuits.

3.Q: Will laying signal cables together with high-voltage cables affect touch and communication stability?
A: No, it won’t. We adopt an independent wiring design to separate signal lines from high-voltage lines. Electromagnetic isolation is implemented for the main board, touch panel and backlight modules, fundamentally avoiding coupled interference from high-voltage equipment.

4.Q: Are there issues such as communication disconnection or command interruption for serial ports and network ports in industrial sites?
A: No. FPC touch cables, serial port and network port communication cables all adopt shielded wires with grounded cladding, which reduces spatial electromagnetic radiation coupling and ensures stable communication without disconnection or command interruption.

5.Q: Is this touch display applicable to machine tools and automated equipment with strong electromagnetic interference?
A: Yes, it is perfectly suitable. It adopts all-round anti-interference optimization in hardware, algorithms, structure, wiring and grounding, specially designed for high electromagnetic interference industrial scenarios to guarantee long-term stable operation.
