This product has been optimized and adjusted to solve common outdoor problems such as poor visibility, dim screen, no automatic brightness adjustment, unresponsive or erratic touch when wet in rainy weather, screen yellowing, color shift, and inconsistent color performance after long‑term use. These improvements make it more suitable for outdoor environments and greatly enhance the user experience.
Features of 24 inch touch screen monitor1.High-brightness backlight module with 1000 nits brightness, combined with full lamination technology, eliminates the air gap between screen layers, reduces multi-layer refraction and diffuse reflection, prevents internal reflection and whitening under strong light, and improves screen transparency and dynamic contrast.
2.Equipped with thickened UV-resistant tempered glass and low-reflection ultra-clear glass, it reduces natural light absorption and reflection. Meanwhile, it resists UV aging, ensuring no yellowing and no image quality degradation even after long-term outdoor use.
3.Abandon ordinary universal OCA adhesive and adopt outdoor yellowing-resistant OCA optical adhesive/silicone water adhesive. Added with UV stabilizers and anti-aging additives, its UV aging resistance level is improved, ensuring no yellowing, no adhesive bleeding and no fogging under long-term sun exposure.
4.An ink protection layer is added, and a transparent UV-resistant varnish is coated on the screen-printed surface. It isolates the ink layer from direct UV erosion, blocks photochemical reactions, and locks color performance and light-shielding properties.
5.Panel surface is coated with a composite layer of AF anti-fingerprint, AG anti-glare and AR anti-reflection & anti-fog coating. It reduces surface water vapor condensation, suppresses glare and fogging, and maintains clear visibility even in humid environments.
6.Optimized touch filtering algorithm suppresses touch drift caused by electromagnetic interference and temperature & humidity fluctuations, effectively eliminating random clicks, screen drifting and touch disconnection.
7.Adopts high weather resistance ITO conductive film combined with low-temperature resistant coating to reduce resistance variation in low-temperature environments. Meanwhile, the density of touch sensing electrodes is increased to enhance weak signal capture capability, ensuring precise touch performance of the touch module.
Specifications:
| Items |
Specifications |
| Resolution Ratio |
1920×1080 |
| Angle of View |
89/89/89/89 (L/R/U/D) |
| Color |
16.7M |
| Contrast Ratio |
1000:1 |
| Response Time |
25 ms |
| Type of touch screen |
Capacitive touch screen |
| Input Mode |
Handwrtten or capacitive pen |
| Surface Hardness |
7H |
| Light Transmission |
85% |

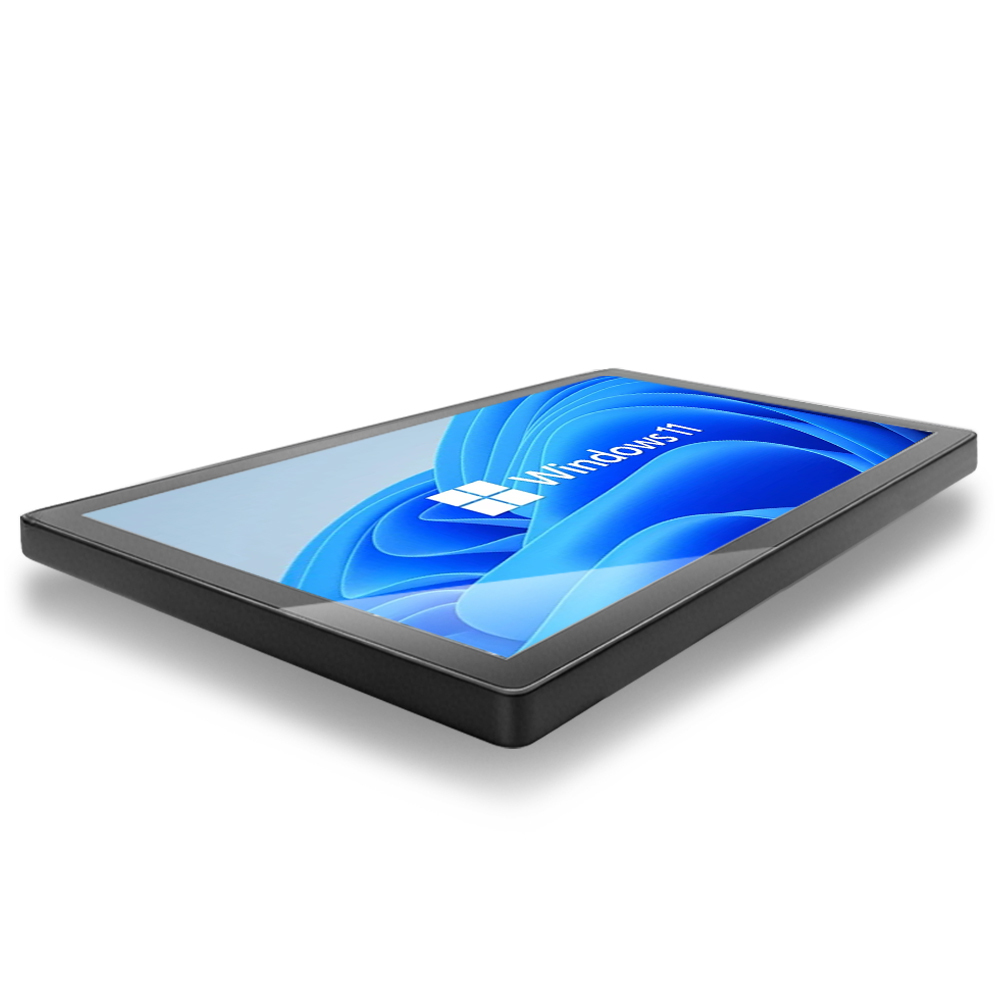

The complete machine reaches an IP65 protection rating, offering more comprehensive protection than standard IP54. It effectively prevents dust ingress and resists low-pressure water spraying from all directions, greatly reducing malfunctions caused by water and dust penetration.
2.How are the water-prone areas such as the bottom, interfaces and frame waterproofed?
The screen perimeter adopts full-circle sealing foam and continuous dispensing sealing. The interface area is treated with waterproof potting and waterproof rubber plugs. Water baffles and flow guide structures are added at the bottom to structurally prevent liquid leakage.
3.Will wiping with water, spraying disinfectant, or beverage splashing damage the screen?No. With IP65 structural protection, the screen can withstand water splashes, wet cloth cleaning and disinfectant spraying. It will not cause short circuit, touch drift or malfunction due to daily cleaning or accidental liquid splashing.
4.Will the screen appear washed out, blurry or poor in contrast under direct sunlight?Equipped with high-brightness backlight, AG/AR anti-glare coating and UV-resistant polarizer, the screen avoids whitening and graying under strong sunlight with excellent visibility. It also resists yellowing and fading under long-term sun exposure.
5.Will the glass get scratched, feel sticky, or have slower response after months of high-frequency use?Adopting high-hardness tempered glass and long-lasting wear-resistant AF oleophobic coating, the panel is scratch and abrasion resistant with consistently smooth touch feeling. Combined with a high-performance touch IC, it delivers stable response speed with no obvious performance degradation over prolonged use.
