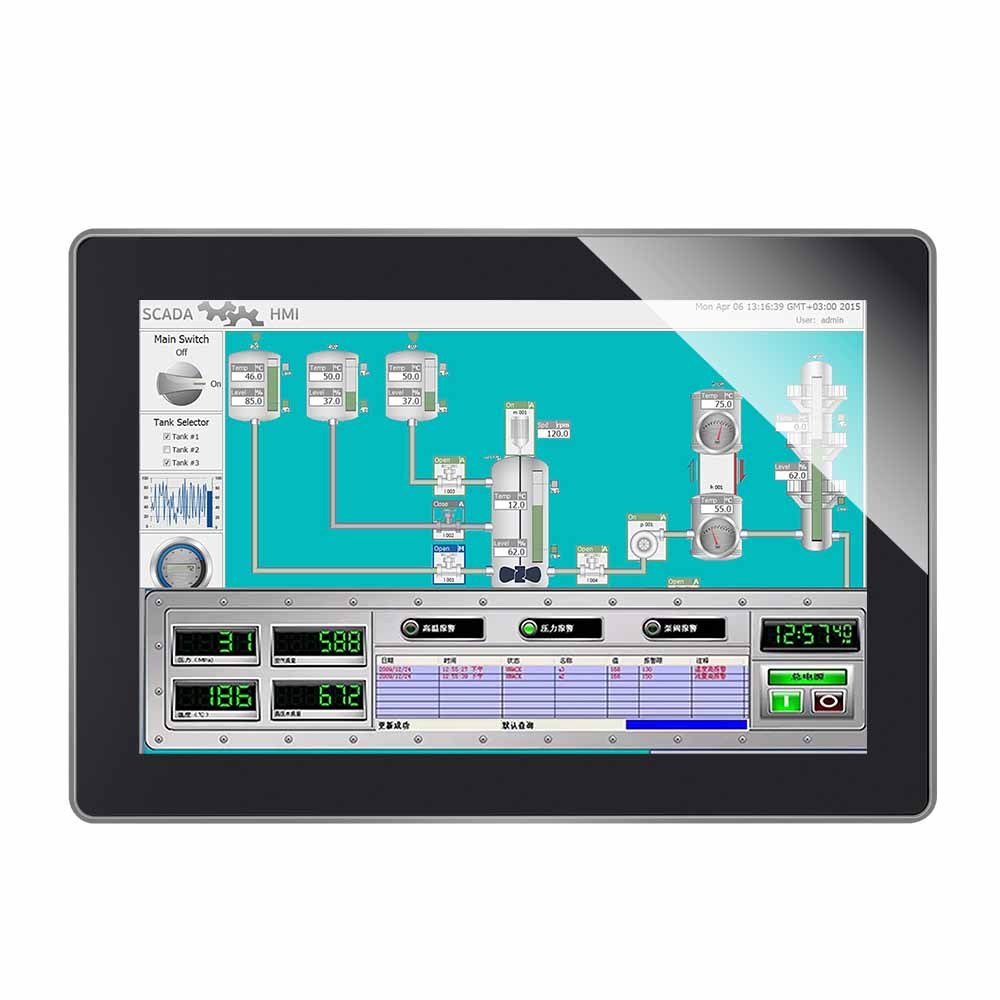

This 15.6-inch touch monitor is specially designed for industrial scenarios. It effectively solves common issues in harsh industrial environments with heavy oil contamination, such as unresponsive touch and cursor jumping.
Specifications:
| Display color |
16.2M |
| Response Time |
25ms |
| MTBF |
30000h |
| Touch monitor type |
Capacitive touch screen |
| Controller and driver |
USB Drive-free |
| Response Time |
≤5ms |
| Surface Hardness |
IKO7 |
| Operational power consumption |
Pmax<35W |
| Idle statepower consumption |
<1W |
| Resolution |
1920×1080 |
1.The surface is coated with nano oil-proof and dust-resistant film. It repels oil and prevents dust accumulation. Grease and cutting fluid can be wiped off effortlessly, avoiding contaminants from seeping into and disrupting the sensing layer. Meanwhile, it features excellent scrub resistance and chemical corrosion resistance, compatible with detergents used in chemical and food industries.
2.The panel material is upgraded to tempered glass with G+G structure, replacing conventional film screens. The dense and smooth glass surface has far lower adhesion to dust and grease, so contaminants will not get trapped in gaps easily.

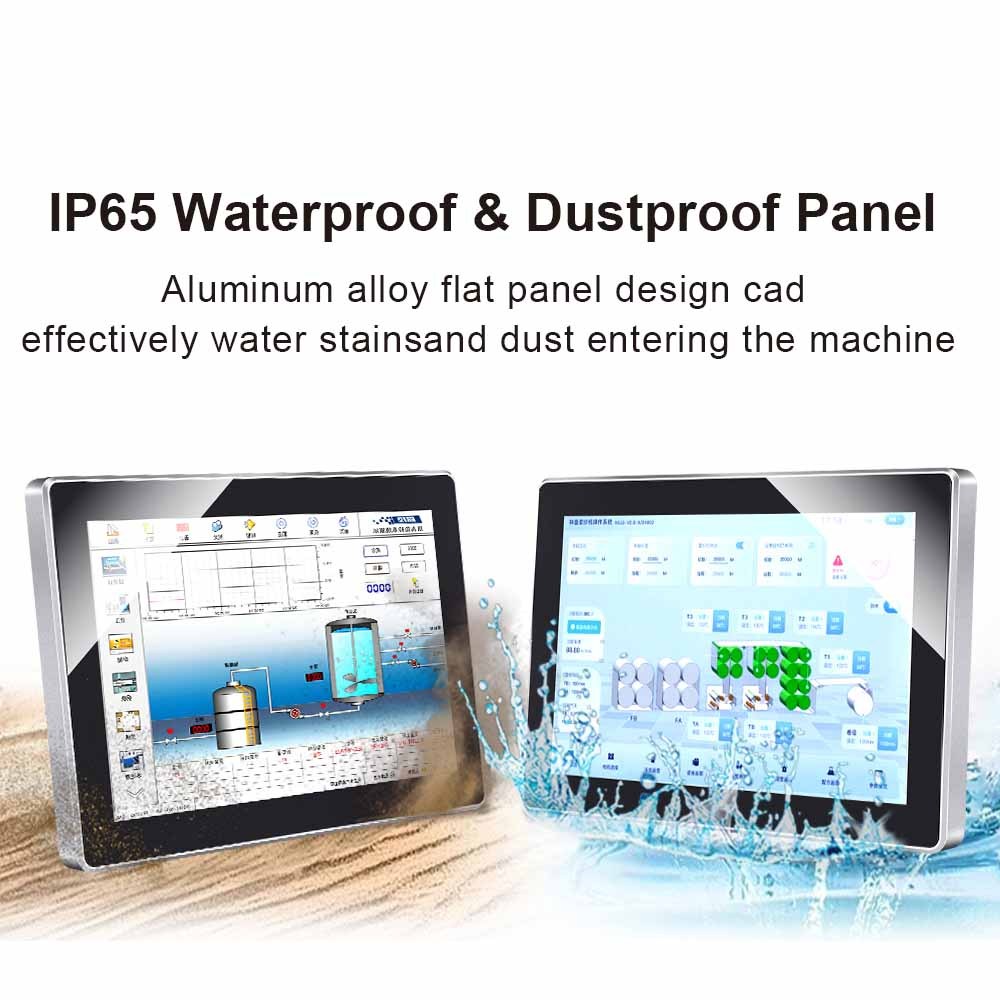

3.It achieves IP65 and above dustproof and waterproof rating. Sealing gaskets are installed on joints and edges to block cutting fluid mist and dust from invading internal circuits and sensing layers through gaps.
4.Equipped with oil stain false touch suppression algorithm. It identifies false touch signals caused by large-area liquid grease and heavy dust coverage, automatically shields invalid touch points to prevent random cursor jumps and unintended activations.
5.Features adaptive sensitivity adjustment. For working conditions with accumulated dust and thin oil films, the algorithm dynamically raises the touch recognition threshold to filter weak interference signals. It responds normally to human touch, balancing anti-false touch performance and operating sensitivity.
6.Blocks interference signals generated by dust and oil residue on panel edges, maintaining stable touch performance in the central area.
How to Improve Impact Resistance？1.Adopt thickened tempered glass with secondary strengthening treatment to boost impact resistance and bending resistance. The edges are precisely ground and chamfered to eliminate stress concentration, preventing chipping and cracking from collisions.
2.
A highly elastic silicone buffer frame is installed around the screen to absorb impact and vibration, isolating external forces from directly acting on the glass panel.
3.The flexible cables adopt snap-in sockets combined with hot-melt adhesive for fixation. Cables are routed with a proper curvature to avoid tension and sharp bends, effectively preventing loosening and disconnection under vibration.
4.Critical components such as main chips, resistors and capacitors are secured with reinforced soldering and glue dispensing protection, eliminating poor solder joints and component falling off under vibration.
5.High-density shockproof foam and damping pads are fitted between the module back, mainboard and housing to reduce high-frequency vibration transmission and mitigate resonance impact.
FAQ1.Q: Can this touch screen work stably in dusty and oily industrial environments?A: Yes. It is equipped with nano anti-fouling coating, IP65+ dustproof & waterproof structure and professional interference suppression algorithms, which effectively resists dust, grease and cutting fluid.
2.Q: Will the screen be easily damaged by impact or frequent vibration?A: No. It adopts thickened secondarily strengthened tempered glass, silicone buffer frame and reinforced component fixation, delivering outstanding impact and vibration resistance.
3.Q: Does oil or dust on the screen cause false touches or signal drift?A: It won’t. Built-in false touch suppression and edge interference shielding algorithms filter invalid signals, keeping touch response accurate and stable.
4.Q: Is the surface coating resistant to industrial cleaners and frequent wiping?A: Absolutely. The nano coating features great scrub resistance and chemical corrosion resistance, compatible with common chemical and food industry detergents.
5.Q: What structure is applied for the panel? What are its advantages?A: It uses G+G tempered glass structure. The dense and smooth glass surface hardly adheres to dust and oil, and no contaminants will be trapped in gaps.
