Specifications:
| Resolution |
1280×800 |
| Luminance |
1000Cd/㎡ |
| Contrast Ratio |
1000:1 |
| Viewing Angle |
85/85/85/85 |
| Display color |
16.7M |
| Response Time |
25ms |
| MTBF |
30000h |
| Touch monitor type |
Capacitive touch screen |
| Controller and driver |
Drive-free |
| Response Time |
≤5ms |
| Storage Temperature |
-30°C-80°C |
| Operating Temperature |
-20°C-70°C |
| Humidity range |
10%~90%RH |
| Signal input |
HDMI+VGA |
1.Adopt chemical etching plus nano matte coating to disperse directional strong light, greatly reduce ambient reflection and improve outdoor viewing clarity.
2.Double-sided multi-layer anti-reflection optical coating reduces light transmission loss of glass, minimizes specular reflection, restores true colors and enhances screen contrast.
3.Replace ordinary float glass with high-transmittance low-reflection optical glass to reduce inherent reflectivity from the substrate level.
4.Adopt full lamination seamless bonding process to eliminate air gaps, remove reflection and refraction at multi-layer interfaces, avoid interlayer glare, widen viewing angles, and ensure consistent image colors from all viewing directions.
5.Equipped with 1000cd/㎡ high-brightness backlight, it offsets glare interference under strong light and keeps the screen clear and vivid.
6.Adopt fine micro-frosted treatment to disperse stray light and eliminate spot glare without compromising definition, effectively avoiding dazzling sunlight reflection.
7.Equipped with side light shielding rings on the whole device to block oblique strong side light from entering the screen and further weaken ambient stray light interference.

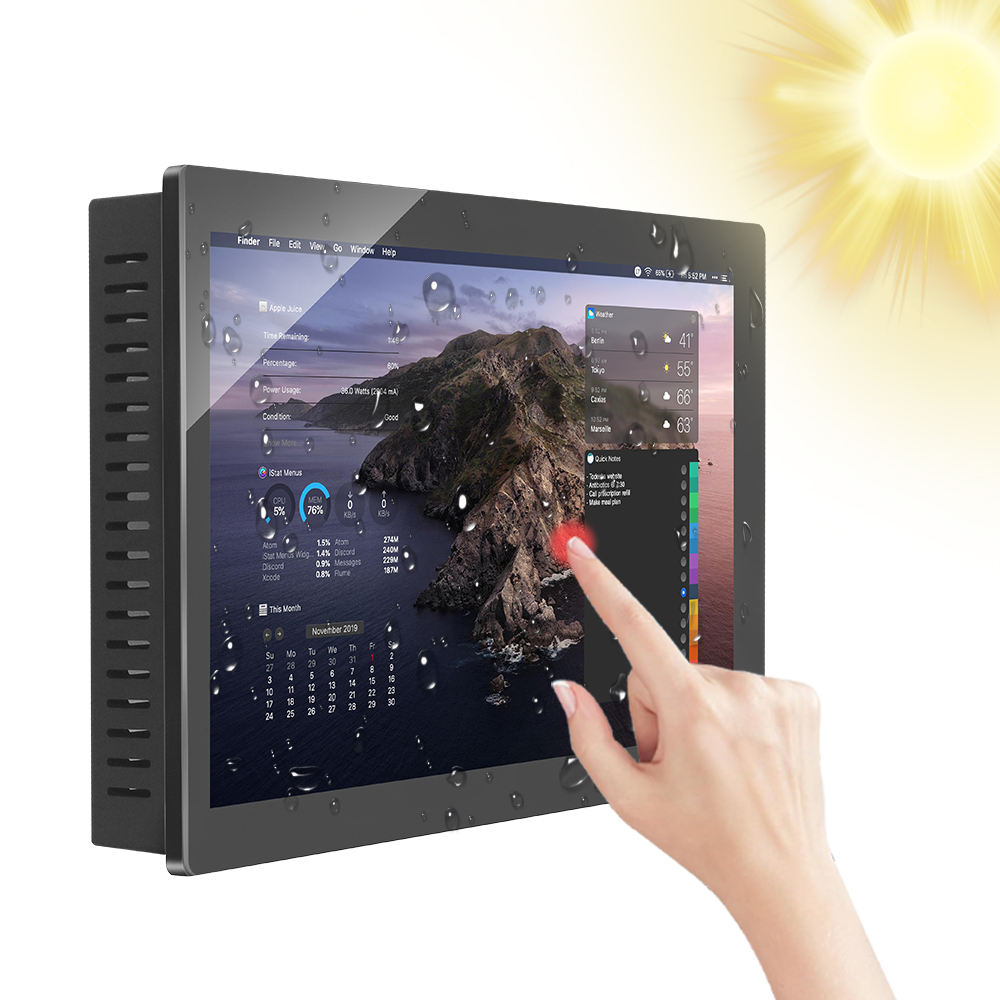

How to solve the false touch issue?
1.Exclusive touch chip algorithm identifies conductive signals of liquid water, accurately distinguishes human finger touches from water drop signals, and automatically shields false triggers caused by rainwater.
2.Spray nano-hydrophobic coating to make water beads condense and slide off quickly without adhering to the screen, reduce water accumulation, and lower the probability of conductive false touches fundamentally.
3.Adjust the spacing and wiring layout of sensing electrodes to weaken the induction range of conductive bridges formed by connected water droplets and suppress large-area false touches.
4.The system automatically detects humid conditions and switches to low-sensitivity touch mode, filtering out weak water-induced signals while retaining normal human hand control.
5.Sloped water drainage grooves are designed around the screen to quickly guide rainwater away to both sides, preventing water from accumulating in the touch sensing area.
6.Increase the thickness of insulating material between touch layer and panel, block parallel conductive loops formed by liquid medium and cut off transmission of false touch signals.
7.The whole machine adopts fully sealed protection to prevent rainwater from penetrating into the screen and reduce large-area water coverage on the touch panel.
FAQ1.Q: Can this touch screen work normally in strong outdoor sunlight?A: Yes. It adopts 1000cd/㎡ high brightness LCD, matched with anti-reflection coating and full lamination process, delivering clear display even under direct strong sunlight.
2.Q: Will rainwater cause accidental touch failure outdoors?A: No. It is equipped with professional anti-false touch algorithms, nano hydrophobic coating and drainage structure, which can effectively shield rainwater-induced misoperation and ensure stable touch control on rainy days.
3.Q: Does the screen have wide viewing angle performance?A: Definitely. The seamless full lamination design eliminates interface reflection, realizes ultra-wide viewing angle, and the screen color remains unchanged when viewed from all directions.
4.Q: What measures are used to reduce outdoor screen reflection?A: It uses high-trans low-reflection optical glass, chemical etching matte treatment and double-sided multi-layer anti-reflection film to greatly weaken ambient light reflection.
5.Q: Is the outdoor touch monitor waterproof and dustproof?A: The whole machine is fully sealed for protection, which effectively prevents rainwater and dust from penetrating inside, suitable for long-term outdoor scene use.
