Surface reflection causes a mirror effect under sunlight, leading to a sharp drop in contrast and making the screen content unreadable. High temperature and sun exposure accelerate LCD aging, color shift and brightness attenuation. In extremely low temperatures, the LCD response slows down, brightness drops drastically, and the glass becomes brittle and prone to cracking. These are common and challenging problems for touch displays in outdoor applications. So how do we solve these issues?
How To Enhance The Sunlight Visibility of 12.1 Inch Industrial PCAP Touchscreens？
1.Adopt industrial-grade high-brightness backlight screen with ≥1000 nits
2.Use high-contrast liquid crystal panels combined with full lamination technology to eliminate light reflection from air layers, further enhancing sunlight visibility. The picture remains clear without being gray, hazy or whitish.
3.Front glass features AG anti-glare treatment to reduce specular reflection; combined with AR anti-reflection coating, it enhances light transmittance and suppresses ambient light reflection for higher contrast under strong sunlight.
4.Built-in light sensor module, automatically adjusts brightness according to ambient light.
5.7×24-hour long-term high-brightness stable design. It features no rapid brightness decay or yellowing during long-term operation, maintaining consistent high brightness and stability for years of use.
6.Optical full lamination eliminates the air gap between the cover glass and LCD panel, preventing secondary interface reflection and ghosting haze. It preserves original display contrast even under strong sunlight.
How To Solve The Outdoor Heat Dissipation Problem?1.Custom wide-temperature LCD panel with a working range of
-20℃ to 70℃.
It adapts to high-temperature sun-exposed operating conditions, presenting no color shift, yellowing or hazy images under extreme heat, while slowing down the aging of liquid crystal materials and brightness attenuation.2.High-temperature resistant LED beads and anti-aging optical films are adopted, suitable for long-term operation in 50–70℃ high-temperature environments, preventing premature backlight failure, yellowing and sudden brightness drop.

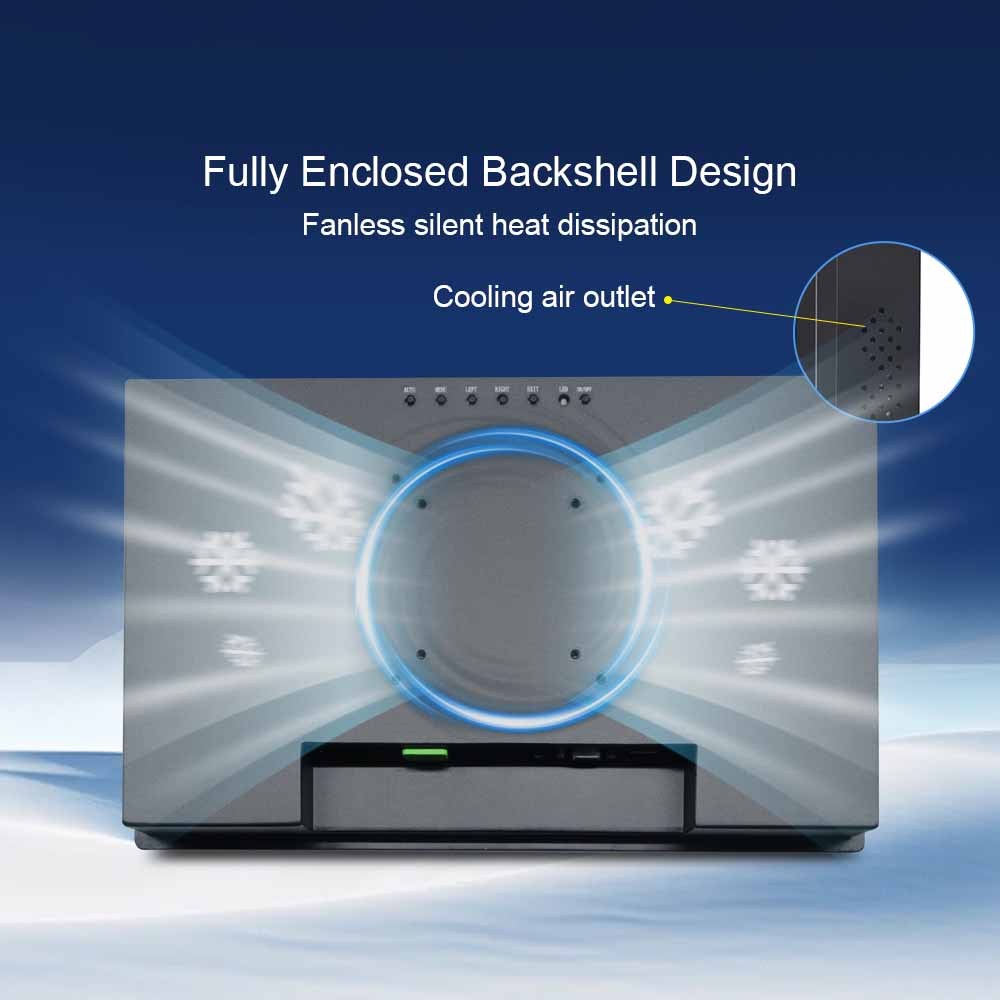

3.Internal thermal conductive silica gel is installed, and the metal frame of the unit acts as a heat sink to improve passive cooling efficiency and quickly dissipate heat from the display and mainboard.
4.Equipped with temperature sensing and intelligent temperature control IC, it monitors the device temperature in real time.
When overheating occurs, it automatically reduces brightness, lowers power consumption and implements current limiting protection to avoid driver board and main control crashes, restarts or downtime due to overheating.
5.All core components including driver board, power supply, capacitors and touch IC adopt industrial-grade high-temperature rated materials. They are high-temperature resistant and resistant to bulging, failure and parameter drift, ensuring stable operation under high-temperature working conditions.
FAQ
1.Can this display be used outdoors in direct sunlight?
Yes, it adopts a ≥1000 nits high-brightness industrial screen with AG anti-glare and AR anti-reflection coating, plus optical full lamination, ensuring clear and visible content even under strong outdoor sunlight.
2.What is the operating temperature range of this display?
It supports a wide temperature range of -20℃ to 70℃, using wide-temperature LCD, high-temperature-resistant components and intelligent temperature control, ensuring stable operation in high-temperature and long-term working environments.
3.How is the heat dissipation performance under long‑term outdoor use?
The display is equipped with thermal conductive silica gel and a metal frame heat sink, combined with intelligent temperature control IC. It can quickly conduct heat and provide over-temperature protection, supporting stable 7×24‑hour operation.
4.Will the screen become dim, yellow or gray after long‑time use?
No. It uses high-temperature-resistant LED beads, anti-aging optical films and wide-temperature LCD, which effectively slow down brightness decay and yellowing, maintaining stable display performance for many years.
5.Does it work stably in high‑temperature environments without crashing?
Yes. All key components are industrial-grade high-temperature specifications. Over-temperature automatic brightness reduction, power reduction and current limiting protection prevent crashes, restarts and downtime caused by overheating.
