For indoor self-service applications, a public application, screens subjected to long-term, high-frequency use by multiple users often suffer from issues such as scratches, overheating, system freezes, or unresponsive touch. those problems make us feel so painful, do you want to know how we do?

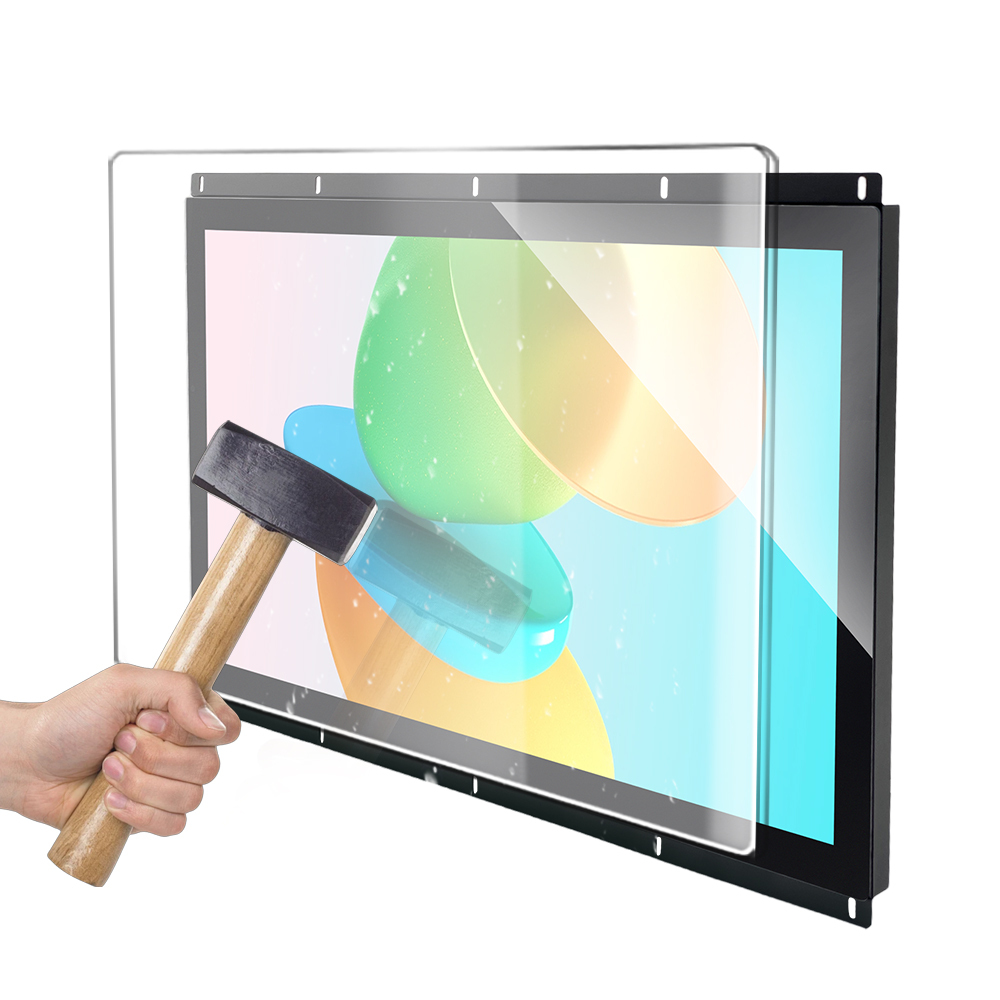

Feature of the 17 inch open frame monitor1.For the cover glass, we adopt 3mm high-strength tempered thick cover glass with a protection level of above Mohs 7H, making the screen durable and resistant to scratches.
2.Adopts wide-temperature industrial chips with an operating temperature range of -20°C to +70°C. No crashes or freezes at high temperatures, no condensation at low temperatures, ensuring accurate touch control.
3.Horizontal and vertical viewing angles ≥ 170°, contrast ratio ≥ 1000:1, ensuring clear viewing from multiple angles and adapting to various placement positions of self-service terminals.
4.Long-term stability verified. Each unit undergoes 7×24-hour aging testing before leaving the factory to eliminate defective products, ensuring it meets the continuous operation requirements of self-service equipment.

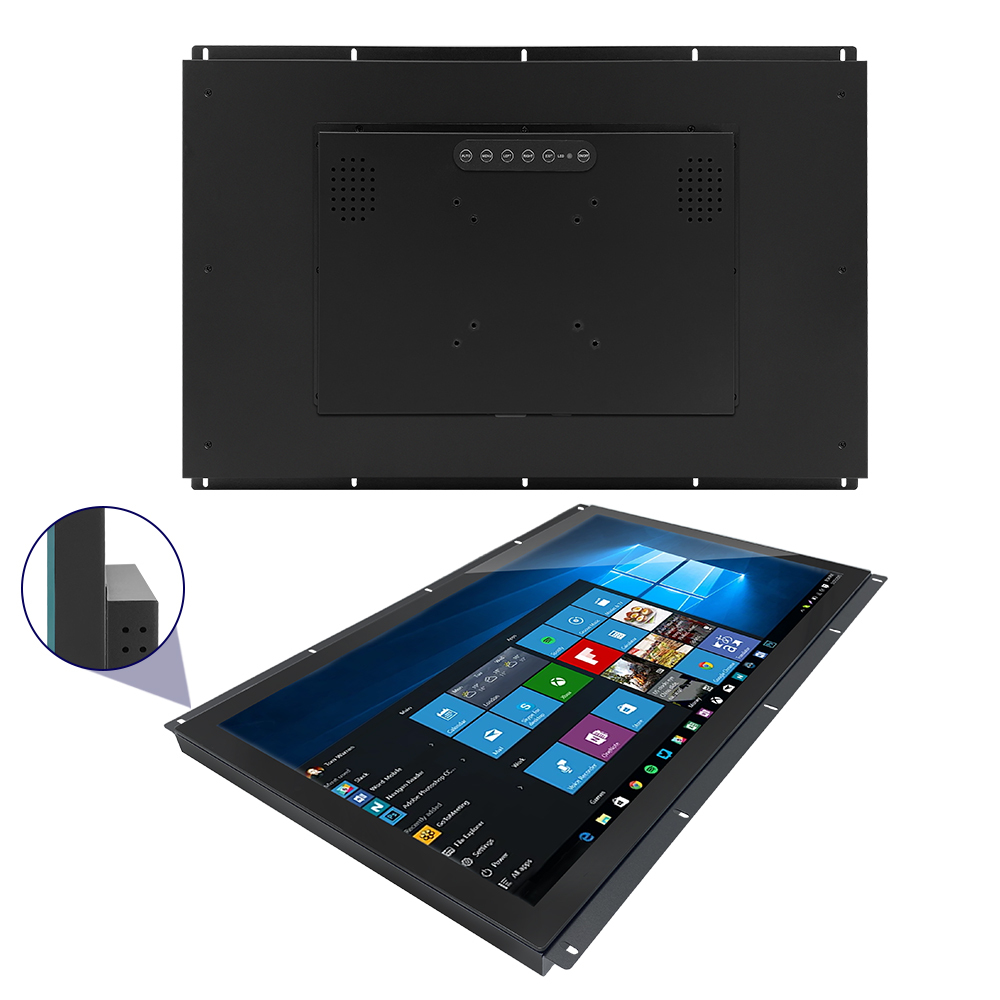

5.Flexible installation methods, supporting standard VESA mounting holes (75×75 / 100×100mm), including flush mount, wall mount, desktop mount and other options, to flexibly adapt to different cabinet spaces.
Specifications
| Items |
Specifications |
| Size |
17 inch |
| Resolution Ratio |
1280×1024 |
| Angle of View |
85/85/80/80 (L/R/U/D) |
| Color |
16.7M |
| Brightness(Standard value) |
250cd/㎡ |
| Contrast Ratio |
1000:1 |
| Response Time |
5 ms |
| Display P/N |
M170ETN01.1 |
| Display Area |
337.92 * 270.336mm |
| Pixel Pitch(mm) |
0.264×0.264mm |
| Type of touch screen |
Capacitive touch screen |
| Input Mode |
Handwrtten or capacitive pen |
| Surface Hardness |
7H |
| Calibration |
Support |
| Operating Temperature |
0°C ~ 50 °C |
| Storage Temperature |
-10 °C ~ 60 °C |
| Humidity |
10%-90% |
| Power Input |
AC 90-240V |
We offer two packaging options: high-quality hard cartons and renewable wooden crates.
Payment Methods: T/T,L/C,Paypal,Others
Shipping and Return Police:
1.By sea, land, air and other transportation methods.
2.For quality issues: 7-day free return, 30-day replacement, and 3-year warranty.
FAQ
1.What is the MOQ of this 17 inch open frame monitor?
The MOQ is 1 pcs
2.Will you offer a discounted price for large bulk orders?
Sure. We not only offer favorable prices for bulk orders, but also provide free drawing
3.Can you provide customization services?
Yes. We provide customization services including logo, appearance, packaging, product performance and other aspects.
4.What certifications do you have?
we have Rohs, Ce, Ccc, Iso9001, Fcc etc.
5.How long is the lead time for shipment?
Samples will be shipped in 3 days; for bulk orders needs to be negotiated.
