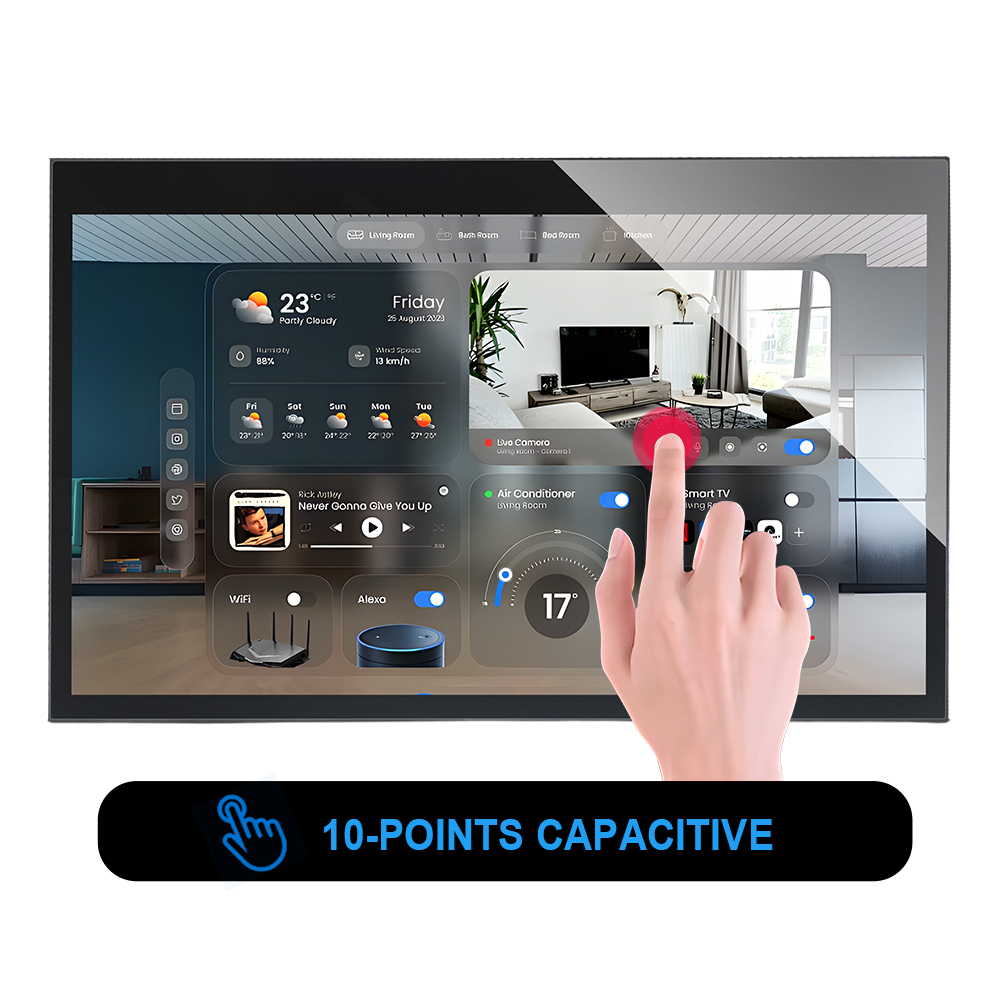

Wall Mount Touch Screen Monitor 31.5 Inch | Factory

Specifiactions:

How to solve the pain point of glare under strong light?
1.Adopts chemically etched micro-scale concave-convex surface with a haze of 15–25%, which scatters strong light and eliminates mirror reflection. The reflectance at a 60° viewing angle is less than 2%, and it supports gloved touch operation.

2.AF Anti-fingerprint: Hydrophobic coating with contact angle above 110°, reduces fingerprints and oil stains, and avoids secondary glare.

3.Low-reflection polarizer adopts upgraded design to substitute conventional high-reflection polarizers, effectively suppressing internal interlayer reflection.

4.2mm Ultra-thin tempered glass: reduces edge refraction and improves side-view clarity.

5.Add narrow-frame light shielding or an external sunshade on the device side to reduce direct light incidence.

How to solve the problem of incompatible and non-universal interfaces
1.Reserved mainstream universal interfaces including HDMI, LVDS, MIPI and EDP, compatible with most mainstream driver boards and main controllers on the market, reducing the need for customized board redesign.

2.Integrated with mainstream information release and touch communication protocols, it supports automatic identification of protocol baud rate and communication timing. No separate program adaptation is required, enabling plug-and-play operation.

3.Comes standard with universal communication ports including USB, I2C and RS232, with fixed standard touch message formats, eliminating the need for redevelopment and adaptation for different main controllers.

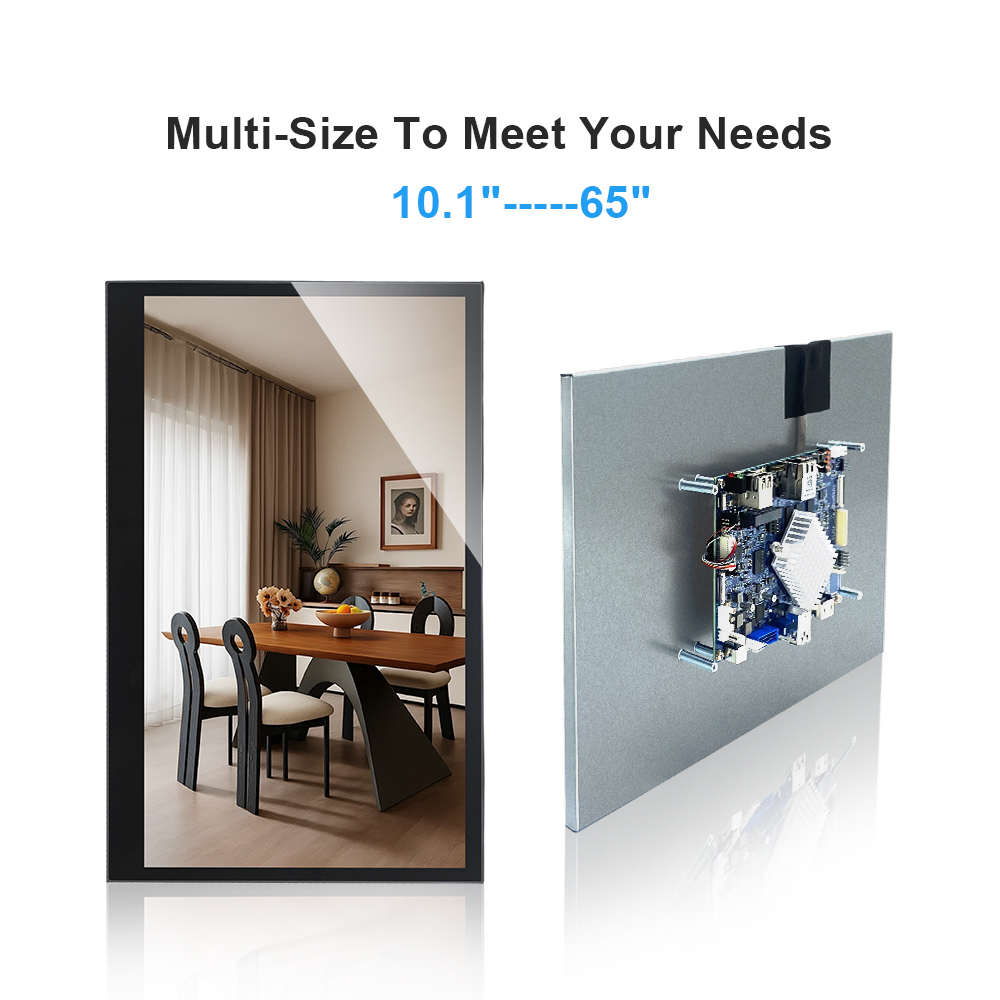

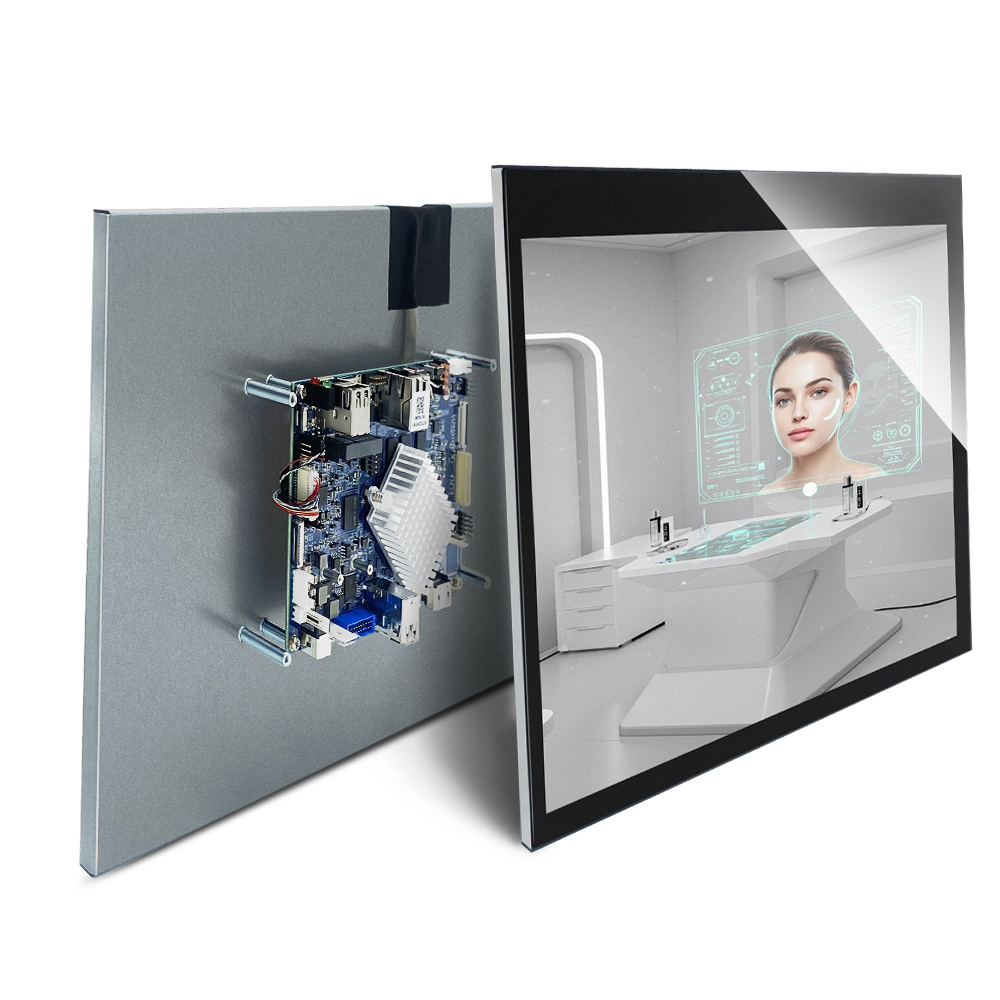

4.The touch screen, driver board and adapter board adopt a modular structure. There is no need to modify the complete device structure; only replacing the small adapter board can achieve compatibility with equipment from different manufacturers, lowering costs and shortening lead times.

FAQ
1.Q: Does the touch screen require customized development for different main controllers?
A: No. It is equipped with standard USB, I2C, RS232 ports and fixed touch message formats, so no re-development or adaptation is needed for different main controllers.

2.Q: What communication protocols does this touch screen support?
A: It integrates mainstream information release and touch communication protocols, and can automatically identify baud rate and timing for plug-and-play use.

3.Q: Do I need to redesign the whole device structure for compatibility?
A: No. The touch screen, driver board and adapter board are modular designed. Only the small adapter board needs to be replaced to match different equipment.

4.Q: What interfaces are standard on this touch screen?
A: It comes standard with USB, I2C, RS232 communication ports and supports HDMI, LVDS, MIPI, EDP display interfaces for wide compatibility.

5.Q: Can this touch screen help reduce costs and lead time?
A: Yes. Modular design and universal interfaces minimize customization work, greatly reducing development cost and shortening delivery time.
