Specifications:
| Controller Interface |
USB Typ. |
| Support Touch Points |
10 points Typ. |
| Controller Supply Voltage |
USB 5V Typ.V |
| Touch Report Rate |
≥100Hz |
| Touch Response Time |
≤25ms |
| Touch Linearity |
±2mm |
| Transmittance |
＞85% |
| Pixel Pitch |
283.5 (per one triad) ×283.5 |
| Support Color |
16.7M colors (RGB 6-bit + Hi_FRC ) |
| Contrast Ratio |
1000 Typ. |
| Display Surface Treatment |
Anti-Glare, 3H |
| Impact resistance |
≥IK07 |
| Ink adhesion |
≥4B |
| Cover surface hardness |
≥6H |

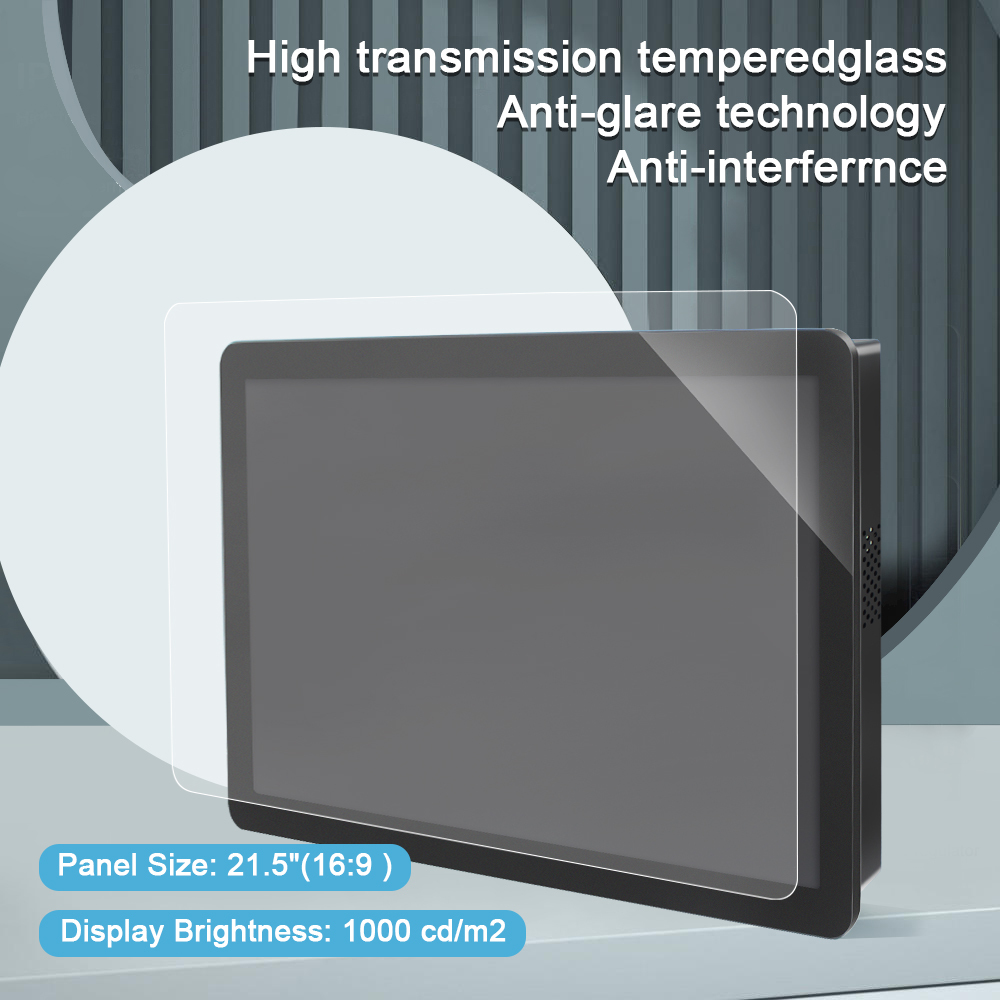

1.Equip the device with tempered glass panels featuring combined AG anti-glare and AR anti-reflection treatments. The AG micro-frosting process scatters specular sunlight reflections to eliminate screen whitening and mirror reflections under strong light. The multi-layer AR anti-reflection coating reduces visible light reflectivity and improves light transmittance, greatly enhancing image clarity and text recognition at the same brightness level, thus preventing misoperation caused by indistinct on-screen buttons.
2.Adjust the installation angle of the display by tilting the screen upward or downward between 15° and 30° to avoid direct sunlight exposure. This reduces specular reflection entering human eyes and alleviates screen whitening and blurry buttons.
3.
Increase the contrast and color saturation, and adopt a dark operation interface with high contrast. Use eye-catching bright colors such as white and yellow for buttons and parameter texts to avoid low recognition of light-colored interfaces under strong light. Turn off automatic brightness and set a fixed reasonable high brightness parameter.
How to Solve the Aging Problem of Touch Displays Caused by Long-Term Outdoor Sun Exposure
1.Replace the conventional screen with an outdoor industrial-grade UV-resistant high-brightness LCD. The original screen is equipped with UV-resistant polarizers and anti-aging backlight modules, featuring excellent resistance to sun-induced aging. It can significantly slow down the rates of screen yellowing, color distortion and brightness attenuation.
2.Adopt displays with full lamination technology to reduce secondary aging damage to the inner liquid crystal structure caused by ultraviolet diffuse reflection in the air interlayer. Combined with hydrophobic and dustproof protective structures, it prevents accelerated aging triggered by high-temperature sunlight together with dust and oil contamination.
3.Avoid sealed installation under direct sunlight. Reserve heat dissipation vents and install dust filter screens to prevent excessive heat accumulation inside the cabinet under sun exposure, which simultaneously reduces dual losses from thermal aging and UV aging of polarizers.
4.The interface adopts high-contrast color matching, enabling clear identification of buttons and parameters even with slight brightness attenuation, so as to prevent production accidents caused by misjudgment of data resulting from screen yellowing and color distortion. Regularly calibrate the screen color parameters to compensate for display deviations caused by minor color fading.
How to Improve the Waterproof Performance of Touch Displays for Outdoor Applications
1.The screen is fitted with IP65-rated protective tempered glass coated with hydrophobic and oleophobic layers. The panel flow guiding structure is optimized with additional water retaining rims and diversion grooves to prevent rainwater and spray water from accumulating on the screen surface and forming a continuous conductive water film, allowing water stains to condense into droplets and slide off rapidly. The equipment is equipped with a foldable waterproof protective cover to shield the screen under spraying, rainy and heavy fog conditions and avoid large-area water accumulation on the display surface.
2.The touch screen adopts an industrial capacitive touch solution equipped with water mode suppression algorithms. When the wet-hand and water film false touch shielding functions are enabled, the system can filter extensive false triggers caused by continuous full-screen water films and only identify valid single-point touches from small contact areas of fingers. The fully laminated display structure is preferred to prevent water vapor from penetrating into the screen and forming condensation that leads to electrode short circuits.
3.Reapply weather-resistant waterproof sealant to the seams of the equipment panel and cable entry ports, and replace aging sealing rings. Install heating and dehumidifying modules together with cooling fans inside the control cabinet to regulate the internal temperature and humidity, so as to avoid touch abnormalities caused by condensed water generated from alternating hot and cold temperatures.
4.Adopt touch panels with waterproof ITO electrodes to prevent touch circuit corrosion caused by moisture, which would otherwise lead to touch sensitivity drift and continuous false triggering. Avoid ordinary civilian touch screens for frequently used humid and spraying scenarios, and uniformly deploy industrial waterproof touch hardware.
FAQ
1.Q: Why does the touch screen frequently malfunction or have random false touches in rainy and spray outdoor environments?
A: Rainwater accumulates on the screen to form a continuous conductive water film, or water vapor penetrates the screen interior to form condensation, corroding touch circuits and causing large-area false triggers and touch sensitivity drift.
2.Q: What structural designs can prevent rainwater from gathering on the touch screen surface?
A: Equip the screen with IP65 tempered glass with hydrophobic and oleophobic coating, add water retaining rims and diversion grooves for quick drainage, install foldable waterproof protective covers, and adopt inclined installation to avoid standing water on the panel.
3.Q: How to effectively avoid full-screen misoperation caused by wet hands and water film on the screen?
A: Adopt an industrial capacitive touch solution with water suppression algorithm, enable wet hand and water film shielding functions to filter full-area false touches, and only respond to effective single-point finger touch.
4.Q: Why is full lamination a must for outdoor waterproof touch displays?
A: The full lamination process eliminates the air interlayer inside the screen, prevents water vapor infiltration and internal condensation, effectively avoids electrode short circuits and touch drift caused by temperature difference between day and night.
5.Q: What internal protection measures can stop cabinet condensation from damaging touch components?
A: Reseal panel seams and cable inlets with weather-resistant sealant and replace aging sealing rings; install heating dehumidification modules and cooling fans to stabilize cabinet internal temperature and humidity, and select waterproof ITO touch panels to prevent circuit corrosion in humid working conditions.
