21.5 inch open frame 16:9 1000 nits sunlight readable 16:9 factory capacitive touch screen monitor

No.ZD-215MN1N-V2
This 21.5-inch industrial touch monitor is specially designed for harsh outdoor environments, with a 1000nits high-brightness panel that delivers outstanding performance and reliability.

Specification:
Name:21.5 Inch Touch Monitor
Model:
ZD-215MN1N-V2
Size:
21.5 inch
Resolution Ratio:
1920×1080
Angle of View:
89/89/89/89 (L/R/U/D)
Color:
16.7M
Brightness(Standard value):
1000cd/㎡
Contrast Ratio:
1000:1
Response Time:
14 ms
Display P/N:
HR215WU1-120
Display Area:
376.32 * 301.056mm
Pixel Pitch(mm):
0.24825×0.24825mm
Surface Hardness:
7H
Video Input:
PC-RGB:Format Up to 1920*1080@60HZ/PC-RGB:Color 6bit,8bit,10bit,12bit
Interface:
VGA/HDMI/DC
Operating Temperature:
0°C ~ 50 °C
Storage Temperature:
-10 °C ~ 60 °C
Humidity:
10%-90% (Relative humidity without condensation)
Life Time:
30000h
Power Consumption(Max):
≤150W
Power Consumption (Standby):
≤1W
Power Input:
AC 90-240V
Power Output:
DC12V /24V
System support:
Win7 or later
Resistance to vibration:
5-19HZ/1.0mm amplitude; 19-200HZ/1.0g acceleration
Resistance to impact:
10g acceleration, 11ms period
Humidity at work:
10%-90% (relative humidity without condensation)
anti-interference:
EMI/EMC interference detection standards
  • outdoor touch monitor
  • 32'' touch screen monitor
  • 15 inch industrial touch screen monitor
  • industrial touch panel monitor

Description

Features about 21.5 inch open frame touch monitor:

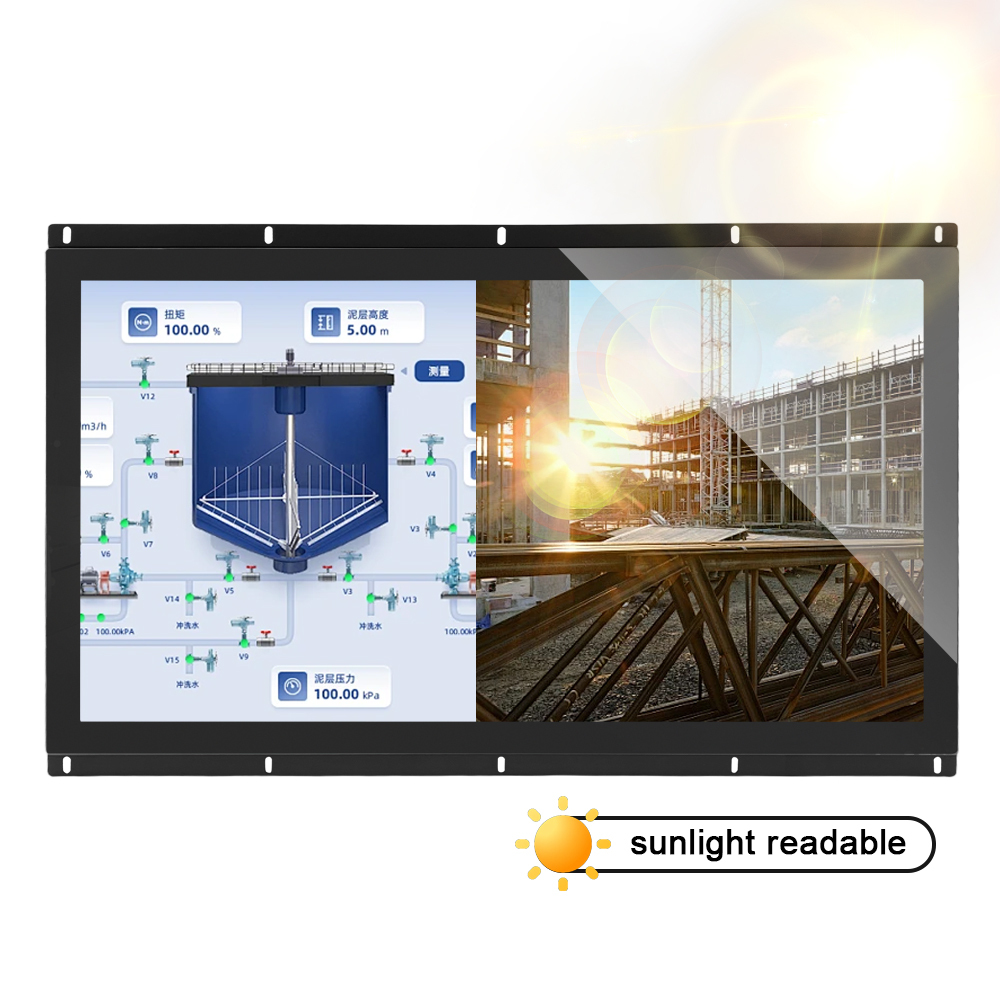

1.High Brightness & Sunlight Readable
1000nits ultra-high brightness ensures clear screen visibility even under direct strong sunlight, solving the problem of blurred or unreadable displays in outdoor lighting conditions.

2.IP-rated Waterproof & Dustproof
With professional waterproof and dustproof protection, it can stably operate in rainy, humid, dusty and other harsh outdoor environments, effectively preventing damage from water, sand and dust.

3.Anti-explosion & Safety Structure
The anti-explosion design provides reliable safety protection for public and high-risk outdoor scenarios, avoiding screen cracking and potential safety hazards caused by external impact.

4.Scratch-resistant & Durable Surface
Equipped with a hardened scratch-resistant touch surface, it can withstand daily friction, scraping and frequent operation, keeping the screen intact and clear for a long time.

5.Anti-fingerprint Coating
Built-in anti-fingerprint coating reduces the adhesion of oil stains and fingerprints, keeping the screen clean and maintaining good visual effect and touch experience.

6.Long Service Life & High Stability
Adopting industrial-grade components and optimized structure, it supports long-time continuous operation, greatly extending service life and reducing maintenance and replacement costs.

FAQ:
1.Q: Is this 21.5-inch touch monitor readable under direct sunlight?
A: Yes. With a high brightness of 1000 nits, the display features excellent sunlight readability and clear visibility even in strong outdoor light.

2.Q: Does this touch monitor support waterproof and dustproof use outdoors?
A: Yes. It is designed with professional waterproof and dustproof performance, making it suitable for rainy, humid and dusty outdoor environments.

3.Q: Is the touch surface scratch-resistant, anti-fingerprint and explosion-proof?
A: Yes. The monitor uses a scratch-resistant hardened touch panel with anti-fingerprint coating and explosion-proof structure for safe and durable daily use.

4.Q: How is the service life of this industrial touch monitor?
A: It adopts industrial-grade components and stable structure design, supporting long‑time continuous operation and providing a long service life with low maintenance cost.

5.Q: What are the key advantages for outdoor applications?
A: Key advantages include 1000 nits high brightness, sunlight readability, waterproof/dustproof, explosion-proof, scratch-resistant, anti-fingerprint and long service life.
