This 11.6inch open frame touch monitor is engineered for exceptional visibility in outdoor and harsh environments, featuring a high brightness of ≥1000 nits that ensures clear display even under strong sunlight. Equipped with optical bonding technology, it effectively reduces reflection, enhances contrast ratio (≥800:1), and prevents condensation, while the anti-glare (AG) / anti-reflection (AR) surface treatment further minimizes light reflection. Additionally, the two-directional polarizer (TDP) makes it compatible with polarized sunglasses, allowing users to view the screen clearly even when wearing sunglasses, which is particularly suitable for outdoor scenarios.
Wide Temperature Adaptability
Designed to withstand extreme temperature conditions, the monitor boasts excellent wide-temperature performance. Its operating temperature ranges from -20℃ to +60℃, and the storage temperature is between -20℃ and +70℃, ensuring stable operation in various harsh climates—whether in cold winter or hot summer. This wide temperature adaptability makes it applicable to outdoor industrial control, intelligent transportation equipment, and other outdoor applications that require long-term stable operation in extreme temperature environments.
High Protection Performance
The monitor features outstanding protection capabilities to cope with harsh outdoor environments. It has a front IP65/IP66 rating, effectively preventing water and dust from entering the device, and a rear IP50+ rating for additional protection. In terms of mechanical impact, it meets IK08–IK10 standards, achieving excellent shockproof and vandal-proof performance, which can resist accidental impact and intentional damage. Moreover, the panel, polarizer, and adhesive are all UV aging resistant, ensuring long-term reliable performance without aging or damage under prolonged exposure to sunlight.
Excellent Touch Experience & Display Quality

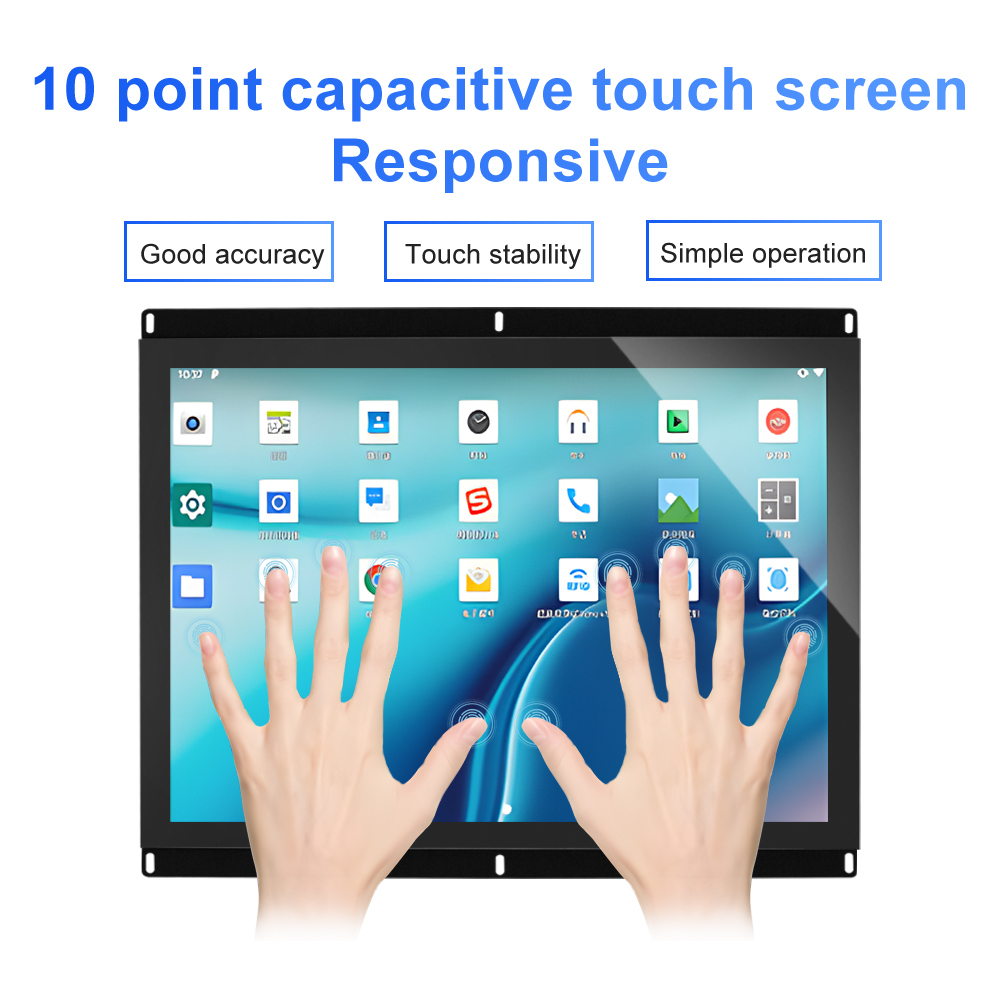

With a high resolution of ≥1080P (1920×1080), the monitor delivers clear and detailed images, meeting the display needs of various outdoor applications such as outdoor advertising and self-service terminals. It has a wide viewing angle of H/V ≥178°, allowing users to view the screen clearly from any direction. The touch response time is ≤10 ms, ensuring fast and sensitive touch operation. It also supports glove and wet hand operation, with stable touch performance without false triggering or drifting even under strong light, adapting to different outdoor usage scenarios.
High Customization & Versatile Applicability
The 11.6inch open frame touch monitor supports comprehensive customization, including size, brightness, touch mode, interface, and protection level, which can be tailored to meet the specific needs of different outdoor applications. Its compact 11.6inch size, combined with open frame design, facilitates easy installation and integration into various equipment such as outdoor industrial control devices, outdoor self-service terminals, outdoor advertising displays, and intelligent transportation equipment. The 10%–90% RH (non-condensing) humidity adaptability further expands its application scope in different humidity environments.
FAQ
Q1: Can the 11.6inch open frame touch monitor be clearly viewed under strong sunlight?
A1: Yes, it can. With a high brightness of ≥1000 nits, optical bonding technology, and anti-glare (AG)/anti-reflection (AR) surface treatment, the monitor ensures clear visibility even under strong sunlight. It also has a two-directional polarizer (TDP) that is compatible with polarized sunglasses, allowing users to view the screen clearly while wearing sunglasses.
Q2: What temperature range can the monitor operate and be stored in?
A2: The monitor has excellent wide-temperature adaptability. Its operating temperature ranges from -20℃ to +60℃, and the storage temperature is between -20℃ and +70℃, which enables stable operation and safe storage in various harsh climate conditions.
Q3: What protection levels does the 11.6inch open frame touch monitor have against harsh environments?
A3: It features high protection performance. The front of the monitor has an IP65/IP66 rating (waterproof and dustproof), the rear has an IP50+ rating for additional protection. It also meets IK08–IK10 mechanical impact standards (shockproof and vandal-proof), and its panel, polarizer, and adhesive are all UV aging resistant to withstand prolonged sunlight exposure.
Q4: Does the monitor support touch operation in special outdoor scenarios?
A4: Yes, it does. With a touch response time of ≤10 ms, the monitor ensures fast and sensitive touch operation. It supports both glove and wet hand operation, and maintains stable touch performance without false triggering or drifting even under strong light, adapting to various outdoor usage scenarios.
Q5: Can the 11.6inch open frame touch monitor be customized according to specific needs?
A5: Yes, it supports comprehensive customization. Users can customize its size, brightness, touch mode, interface, and protection level to meet the specific requirements of different outdoor applications. Additionally, its compact 11.6inch size and open frame design facilitate easy installation and integration into various outdoor equipment.
