This 12.1-inch Open Frame Touch Monitor is designed for integration into packaging machines that require a compact 4:3 operator interface. It provides suitable screen space for recipe selection, machine status, sealing or filling parameters, alarm messages, production counters and maintenance access without occupying the front-panel area required by a widescreen display.

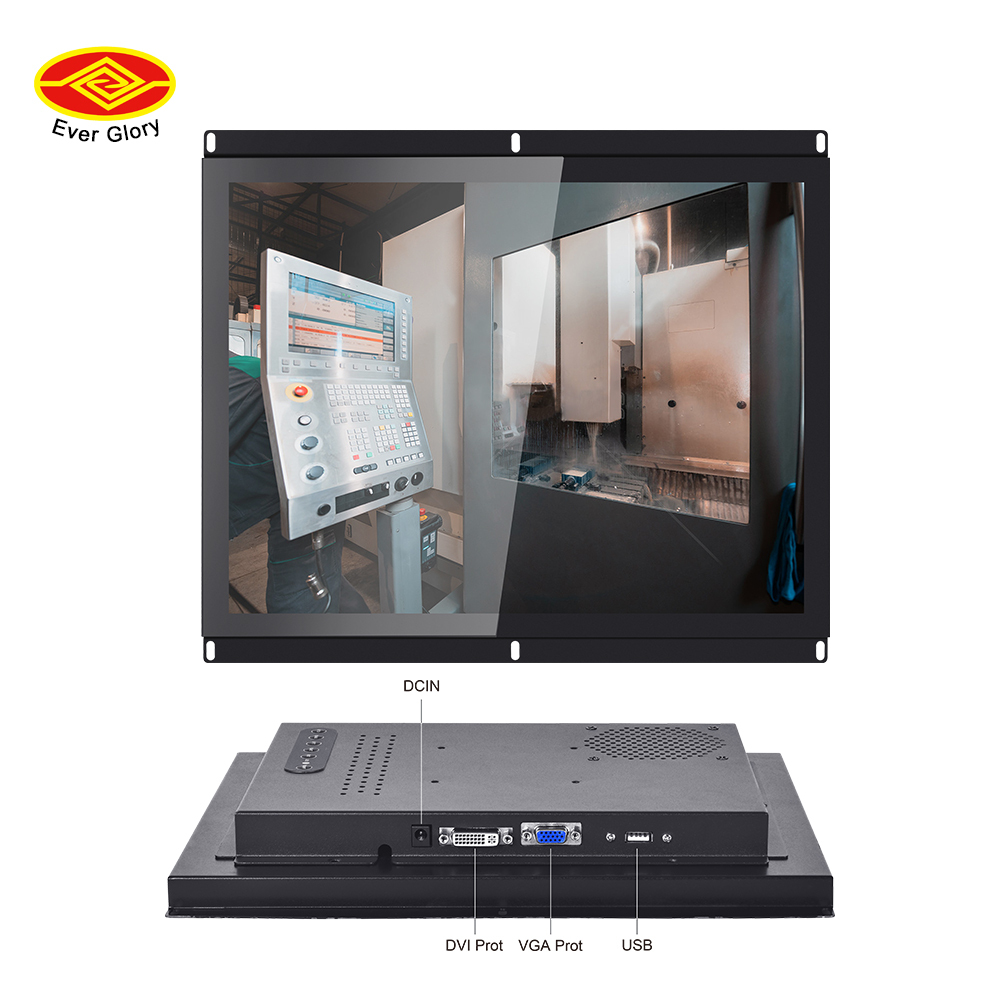

The PCAP touch display is supplied as an embedded monitor rather than a standalone desktop unit. Ever Glory can adapt the mounting structure, cover glass, touch firmware, display and touch interfaces, cable direction and connector position to the equipment drawing. Final resolution, brightness, dimensions, input voltage and environmental ratings are confirmed through the approved project specification.
Packaging equipment often needs to show multiple process values on one screen, including machine mode, product recipe, conveyor status, sealing temperature, filling quantity, batch count and active alarms. A 12.1-inch 4:3 display provides a practical layout for parameter tables, vertical menu structures and existing HMI software designed around a traditional screen ratio.
This format is particularly relevant when a machine builder needs to retain a compact control-panel opening or replace an older HMI layout. However, the 4:3 aspect ratio alone does not guarantee mechanical or software compatibility. Active display area, resolution, panel opening, mounting holes, signal timing and touch interface must be checked before describing the monitor as a direct replacement.

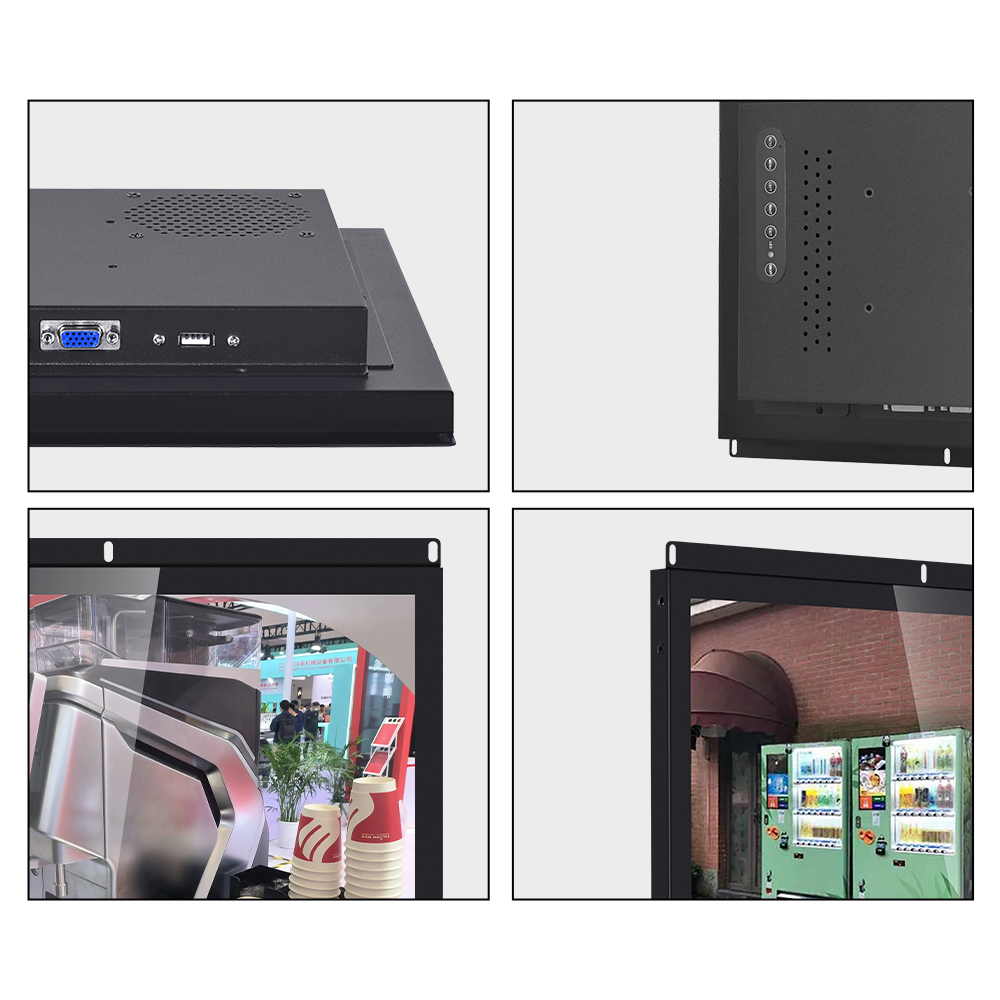

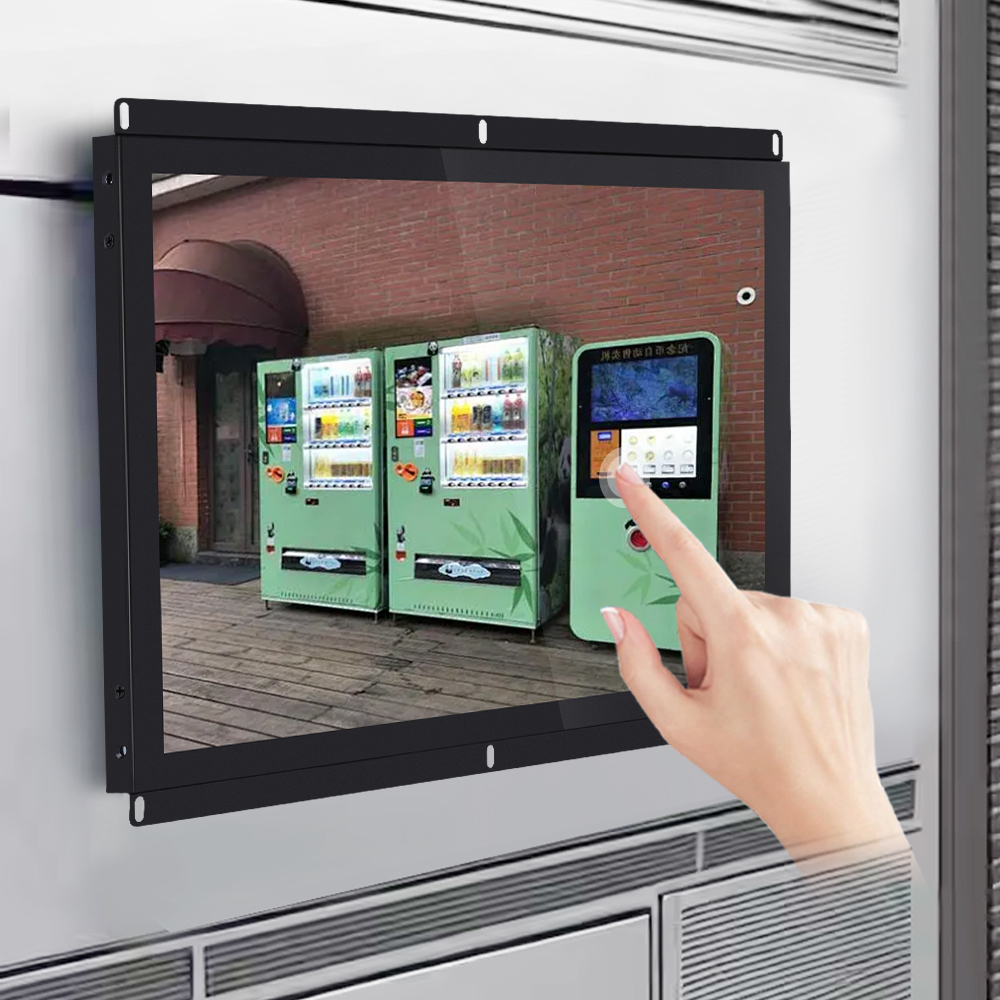

An open-frame monitor is intended to be installed inside the packaging machine enclosure. It allows the equipment manufacturer to coordinate the display with its own front bezel, control cabinet, internal brackets and cable routing.
The rear electronics and connectors are not automatically protected against dust, moisture or accidental contact. Required enclosure protection must be provided by the completed machine. Before sample production, the following points should be checked against the mechanical drawing:
Operators may wear thin production gloves, food-processing gloves or protective work gloves. These materials do not produce the same capacitive signal. Glove operation therefore needs to be evaluated with the actual glove type, final cover glass and installed machine enclosure.
Increasing touch sensitivity without testing can also increase susceptibility to false touches and electrical interference. Touch firmware should be adjusted by balancing glove response, edge accuracy, noise rejection and unintended-touch suppression.
Packaging machines may be exposed to paper dust, plastic-film particles, powder, adhesive residue, oil or cleaning agents, depending on the packaged product and process. A custom cover glass and optional AG or AF surface can be evaluated to improve cleaning and reduce visible fingerprints.
Surface treatment does not replace correct enclosure sealing. If the front must resist dust or splashing liquid, the cover glass, gasket, adhesive, bezel and mounting pressure must be designed as one front-sealing structure. Any IP claim should apply only to the tested configuration and protected side.
Servo drives, variable-frequency drives, heaters, relays, solenoid valves and switching power supplies can introduce conducted or radiated interference into the touch system. A monitor that works correctly on a laboratory bench may behave differently after installation in the machine cabinet.
Touch performance should therefore be verified with the final power supply, grounding arrangement, host controller, cables and major electrical loads operating. Cable separation, shield termination, chassis connection and touch-controller tuning may need to be reviewed at equipment level.
The display can present product recipes, film-feed status, sealing parameters, batch quantity and alarm information. The actual control logic remains in the PLC or industrial computer.
The 4:3 interface is suitable for machine-mode selection, station status, fault location and manual maintenance commands where a compact panel layout is required.
Operators can use the display to select label formats, check sensor status, view production counts and access adjustment screens supplied by the machine-control software.
The screen can show filling recipes, line status, alarm records and changeover instructions. Any safety-related function must remain within the machine’s certified safety-control system.
The display can present weight results, pass/fail statistics, product selection and diagnostic information when connected to the customer’s controller or industrial PC.
This product is a display and touch-input device. It is not a safety PLC, emergency-stop device or safety-rated machine controller. Emergency stop, guard-door monitoring, safe motion and other safety functions must be implemented through the appropriate certified hardware and machine-safety architecture.
| Product type | Open-frame touch display for equipment integration |
|---|---|
| Display size | 12.1 inches |
| Aspect ratio | 4:3 |
| Primary application | Packaging machine HMI and operator-control panels |
| Touch technology | Projected capacitive touch (PCAP) |
| Touch points | Configured according to controller, operating system and application requirement |
| Touch interface | USB or project-defined interface |
| Display resolution | To be confirmed from the approved 12.1-inch LCD datasheet |
| LCD brightness | Selected according to factory lighting and machine-panel position |
| Viewing angle | According to the approved LCD configuration |
| Cover glass | Thickness, outline, border printing and logo customizable by project |
| Surface treatment | AG, AR or AF options subject to application evaluation |
| Bonding | Air bonding or optical bonding according to the approved structure |
| Video interface | To be defined according to PLC HMI controller or industrial PC output |
| Mounting | Open frame, embedded bracket or customized mounting structure |
| Outer dimensions | To be confirmed after LCD and frame selection |
| Active display area | To be confirmed from the approved LCD datasheet |
| Panel cutout | Defined from the customer’s control-panel drawing |
| Mounting holes | Defined through the approved mechanical drawing |
| Input voltage | To be confirmed according to the selected display-control board |
| Power consumption | Dependent on LCD, backlight level and controller-board configuration |
| Operating temperature | To be confirmed through the final LCD, touch-controller and electronics BOM |
| Front protection | Project-specific front-sealing design available; rating requires final validation |
| System compatibility | Windows, Linux or Android compatibility subject to controller and host verification |
| Compliance support | CE, FCC, RoHS, REACH or project-specific documentation subject to final configuration |
| Commercial model | OEM/ODM project quotation rather than fixed-price retail |
Specification note: dimensions, resolution, brightness, interfaces, input voltage, power consumption, operating temperature and protection rating must not be published as fixed values until the LCD, controller board, mechanical structure and project BOM have been approved.
The format is useful for compact control panels and HMI software based on parameter tables, vertical menus and traditional 4:3 layouts. Suitability must still be confirmed against the required active area, resolution and viewing distance.
Not based on screen size alone. Resolution, active area, outer dimensions, mounting holes, panel cutout, video timing, touch interface and power input must all be compared before replacement is confirmed.
No. It is primarily a display and touch-input device. PLC logic, industrial computer, machine software and safety control are supplied separately by the equipment manufacturer.
Glove operation can be evaluated, but performance depends on glove material, glove thickness, cover glass, grounding, controller and firmware settings. Testing with the actual production glove is recommended.
No automatic whole-unit waterproof rating should be assumed. A project-specific front-sealing structure can be developed, while the rear electronics and connectors remain dependent on protection from the machine enclosure.
Yes. Mounting holes, brackets, installation depth, cable length, connector position and cable direction can be evaluated from the equipment drawing.
The complete system should be evaluated with the final power supply, grounding, cabinet, cables and electrical loads. The solution may involve cable routing, shielding, grounding, filtering and touch-firmware adjustments rather than a single component change.
MOQ and lead time depend on the selected LCD, customization scope, sample requirements and approved BOM. They should be confirmed through a project quotation rather than published as a universal fixed value.
Provide the control-panel drawing, required active area, mounting depth, PLC or industrial-PC output, touch interface, power supply, operator glove type and cabinet conditions. Ever Glory will evaluate the LCD, PCAP controller, cover glass, mounting structure, interfaces and sample configuration before quotation.
Submit Packaging Machine Requirements and Request a Sample
