When designing a touch display for outdoor applications, waterproof performance is not only determined by the touch screen itself. The installation structure, installation direction, surface treatment, and bonding method all play an important role in long-term reliability. For outdoor kiosks, EV chargers, ticketing machines, vending machines, marine equipment, and other outdoor application, rainwater, humidity, condensation, dust, and temperature changes can all affect the user experience and product lifetime.
Below are several practical suggestions for improving waterproof performance in outdoor touch display projects.
For outdoor equipment, we recommend designing the cabinet structure so that the touch screen surface is flush with the front surface of the cabinet. The touch screen and cabinet should be on the same level as much as possible.
If the touch screen is lower than the cabinet surface, it may create a step or edge around the display area. This step can easily collect rainwater, dust, and other contaminants. Over time, standing water may increase the risk of water penetration, staining, corrosion, or abnormal touch performance.
A pure flat design allows rainwater to flow away more smoothly from the front surface. It also helps reduce water accumulation around the touch screen edge, making the overall terminal easier to clean and maintain. For outdoor applications, this structure is more suitable for long-term use in rainy or humid environments.

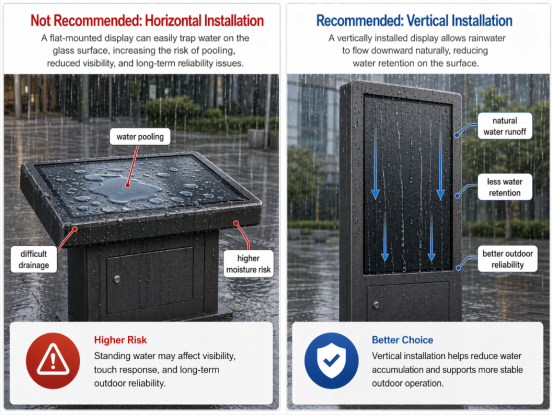

2. Vertical Installation Is Recommended
For outdoor waterproof touch displays, vertical installation is generally recommended. When the product is installed vertically, rainwater can naturally flow downward due to gravity. This helps reduce the possibility of water staying on the surface for a long time.
In contrast, if the touch display is installed flat or horizontally, water can easily form puddles on the glass surface. Once water remains on the surface, it may affect visibility, touch sensitivity, and long-term reliability. In some cases, water pooling may also increase the chance of moisture entering the equipment through weak points in the structure.
Therefore, for applications such as outdoor kiosks, EV charging stations, vending machines, and ticketing terminals, a vertical or slightly inclined installation angle is a better choice. If a horizontal installation is unavoidable, the cabinet should be designed with proper drainage, sealing, and water-guiding structures to prevent water from staying on the display surface.

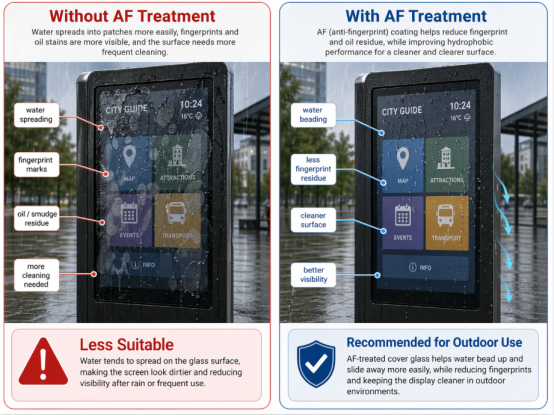

3. Use Cover Glass with AF Treatment
For outdoor touch screens, cover glass with AF treatment is also recommended. AF means anti-fingerprint coating. Besides reducing fingerprints and oil stains, AF coating can also improve the surface’s hydrophobic performance.
With AF treatment, water drops are less likely to spread and form large water patches on the glass surface. Instead, water can bead up more easily and slide away from the surface. This helps reduce water marks, improve surface cleanliness, and maintain better visibility after rain.
For outdoor applications, this is especially helpful because users may operate the equipment in wet conditions, with dirty hands, gloves, or after rain exposure. A glass surface with AF treatment can provide a better user experience and reduce the cleaning frequency required for public terminals.
In addition, AF coating can be combined with other surface treatments such as AG anti-glare or AR anti-reflection coating, depending on the actual application environment. For example, EV chargers and outdoor information terminals often require both sunlight readability and easy surface cleaning.

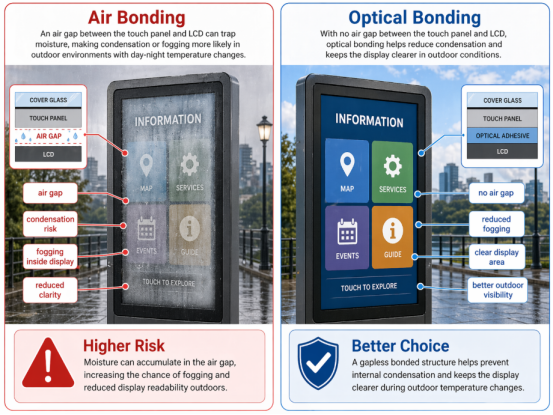

4. Use Optical Bonding for Gapless Structure
For outdoor touch display modules, optical bonding is highly recommended. Optical bonding means bonding the touch screen panel and LCD together with optical adhesive, creating a gapless structure between the touch panel and the display.
Compared with air bonding, optical bonding has several advantages for outdoor waterproof applications. First, because there is no air gap between the touch screen panel and LCD, it can help prevent condensation or fogging inside the display area. This is very important for outdoor environments with large temperature differences between day and night.
Second, optical bonding improves display clarity and contrast. It reduces internal reflection, allowing the screen to remain more readable under strong sunlight. For outdoor equipment, clear visibility is one of the most important performance requirements.
Third, the gapless structure helps improve the overall strength of the display module. It makes the touch display more durable and better suited for harsh environments, including outdoor public terminals, industrial equipment, and marine applications.
Conclusion
To improve outdoor waterproof performance, the design should not only focus on the IP rating of the product itself. The whole structure must be considered.
A better outdoor waterproof design should include a flush-mounted cabinet structure, vertical installation, cover glass with AF treatment, and optical bonding between the touch screen and LCD. These design choices can help reduce water accumulation, improve drainage, prevent condensation, maintain clear visibility, and improve long-term reliability.
For outdoor touch display applications, good waterproof design starts from the details. A small improvement in cabinet structure or surface treatment can make a big difference in real outdoor use.
FAQ
1.Q: Why is a flush-mounted structure important for outdoor touch displays?
A: A flush-mounted structure prevents water, dust and contaminants from accumulating around the screen edge, reduces water penetration risk, and allows rainwater to flow away smoothly, which greatly improves long-term waterproof reliability.
2.Q: Why are vertical or inclined installations recommended for outdoor touch displays?
A: Vertical or inclined installations let rainwater flow down naturally by gravity, avoid water pooling on the surface, reduce moisture intrusion and ensure stable touch performance in rainy environments.
3.Q: What are the benefits of AF anti-fingerprint coating on outdoor touch screens?
A: AF coating improves hydrophobicity, makes water bead and slide off easily, reduces water marks and fingerprints, keeps the screen clean, and maintains good visibility and touch function in wet conditions.
4.Q: Why is optical bonding suggested for outdoor touch display modules?
A: Optical bonding creates a gapless structure, prevents internal condensation, enhances display clarity and sunlight readability, and improves the overall strength and durability of the module.
5.Q: What key details improve the waterproof reliability of outdoor touch displays?
A: Key points include flush installation, vertical/inclined installation, AF-coated cover glass, optical bonding, and reasonable drainage and sealing design.
