The large touch screen display monitor is engineered primarily for industrial applications. Its front cover boasts an IK06+ protection rating, safeguarding the screen from scratches and damage caused by daily bumps and friction. Adopting a 1000-nit high-brightness LCD panel and integrated with an automatic brightness adjustment function, it maintains clear visibility under strong sunlight, efficiently resolving poor display visibility in high-light environments.
How to achieve stable operation in harsh industrial environments？1.Adopts wide-temperature main control and LCD driver chips, with an operating temperature range of -20℃ to 70℃. Optimized touch IC algorithms and ITO circuit impedance effectively prevent liquid crystal solidification and driver malfunction in low-temperature conditions.
2.Adopting high-temperature resistant phosphor materials, it greatly slows down backlight aging and brightness attenuation under high temperatures. Meanwhile, anti-yellowing optical films and high-temperature resistant polarizers are applied to withstand long-term high-temperature exposure, preventing screen yellowing, color shift and severe chromatic aberration.
3.Featuring AG+AR composite coating technology, it delivers both anti-glare and anti-reflection performance. Replacing ordinary matte AG treatment, it reduces specular reflectivity, improves light transmittance and minimizes ambient light interference. The surface resists scratches after long-term use with sustained anti-glare performance, presenting clear colors without whitish haze.
4.The surface undergoes high-strength tempering treatment and is coated with wear-resistant AF anti-fingerprint coating, delivering excellent dustproof, oil-proof and wipe-resistant performance.
5.Adopting full lamination technology together with frame dispensing sealing and waterproof foam gaskets on all sides, it blocks condensed water, moisture and corrosive mist from penetrating into the display through gaps, effectively preventing internal condensation and mildew growth.
6.Key components including touch circuits, FPC flexible cables and golden fingers are treated with oxidation-resistant gold plating to prevent circuit oxidation and disconnection.

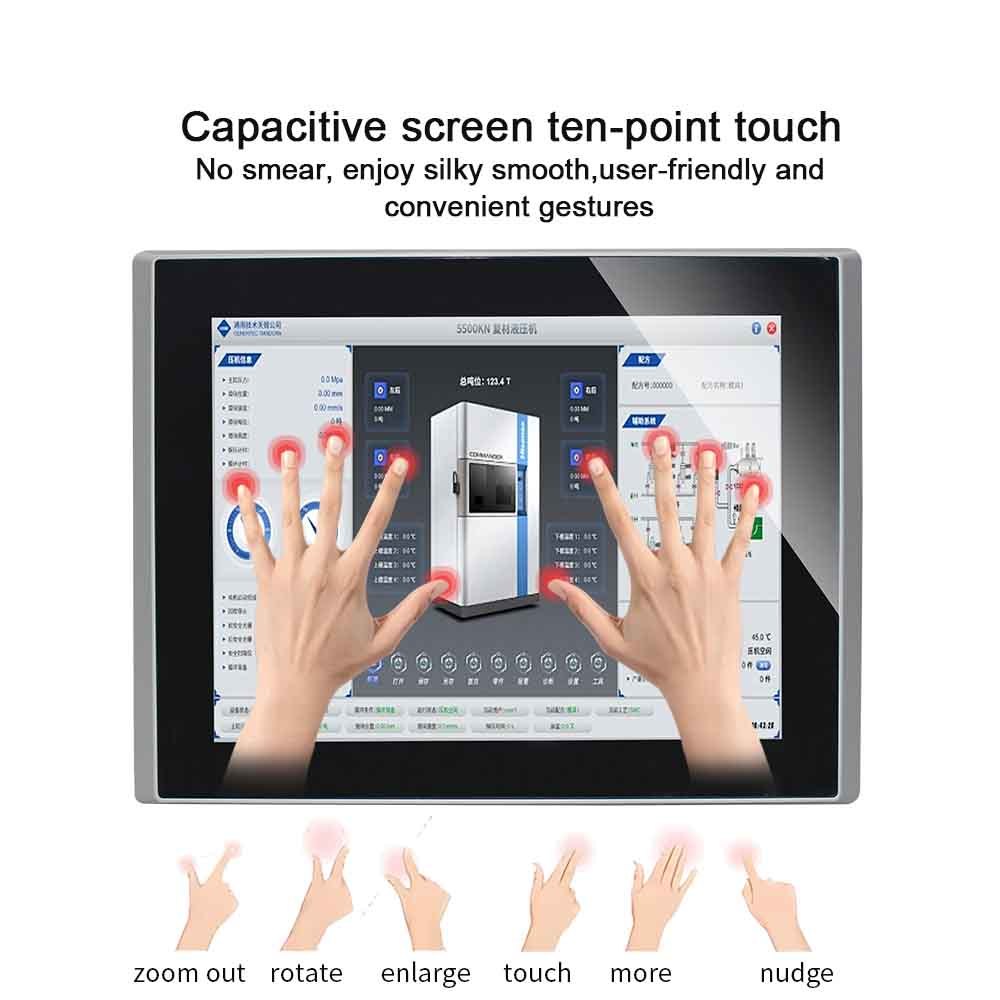

How to achieve precise touch control？1.Optimized touch IC algorithms enhance the recognition logic for gloved and wet-hand operation. It enables accurate and responsive control with cotton, rubber and heavy work gloves, eliminating touch failure issues.
2.Optimized ITO sensor layout and driving frequency reduce interference from oil stains, dust and water stains on capacitive signals, avoiding random cursor jumps and false touches caused by signal disorder.
3.Enhanced anti-interference circuit design filters electromagnetic interference from workshop equipment and static electricity caused by dust, ensuring stable touch signal output and eliminating touch drift, disconnection and stuttering in complex working conditions.
4.With reinforced OCA full lamination process, the LCD panel, touch layer and tempered glass are integrally bonded and fixed. This prevents interlayer displacement and loosening caused by vibration, fundamentally eliminating touch point offset and calibration failure.
5.Aging-resistant shock-absorbing rubber strips and reinforced brackets are installed around the display to absorb mechanical jitter and high-frequency vibration impact, and reduce pulling and loosening of internal circuits and FPC cables.
6.Adopting a high-strength tempered glass cover, it withstands frequent pressing, wiping and hard object friction to prevent surface scratches and wear.
Specifications:
| Items |
Specifications |
| Resolution Ratio |
1920×1080 |
| Angle of View |
89/89/89/89 (L/R/U/D) |
| Color |
16.7M |
| Brightness(Standard value) |
1000cd/㎡ |
| Contrast Ratio |
1000:1 |
| Response Time |
25 ms |
| Type of touch screen |
Capacitive touch screen |
| Input Mode |
Handwrtten or capacitive pen |
| Surface Hardness |
7H |
| Operating Temperature |
-20°C ~ 70 °C |
| Humidity |
10%-90% |
| Light Transmission |
85% |
Yes. It adopts wide-temperature chips with an operating range of -20℃~70℃, optimized touch and LCD drivers to ensure stable performance.
2.Is the screen visible under strong sunlight?Yes. It features a 1000-nit high-brightness panel with auto-brightness and AG+AR coating for clear readability in strong light.
3.Does it support touch operation with gloves, wet hands or oil contamination?Yes. Optimized touch algorithm and anti-interference design enable accurate operation even with thick work gloves, wet hands or oil.
4.Will it break easily in vibrating and dusty workshops?No. Full lamination, shock-absorbing strips and reinforced brackets ensure reliability against vibration, dust and moisture.
5.Is the screen scratch-resistant and easy to clean?Yes. High-strength tempered glass with AF anti-fingerprint coating is scratch-proof, oil-resistant and easy to maintain.
